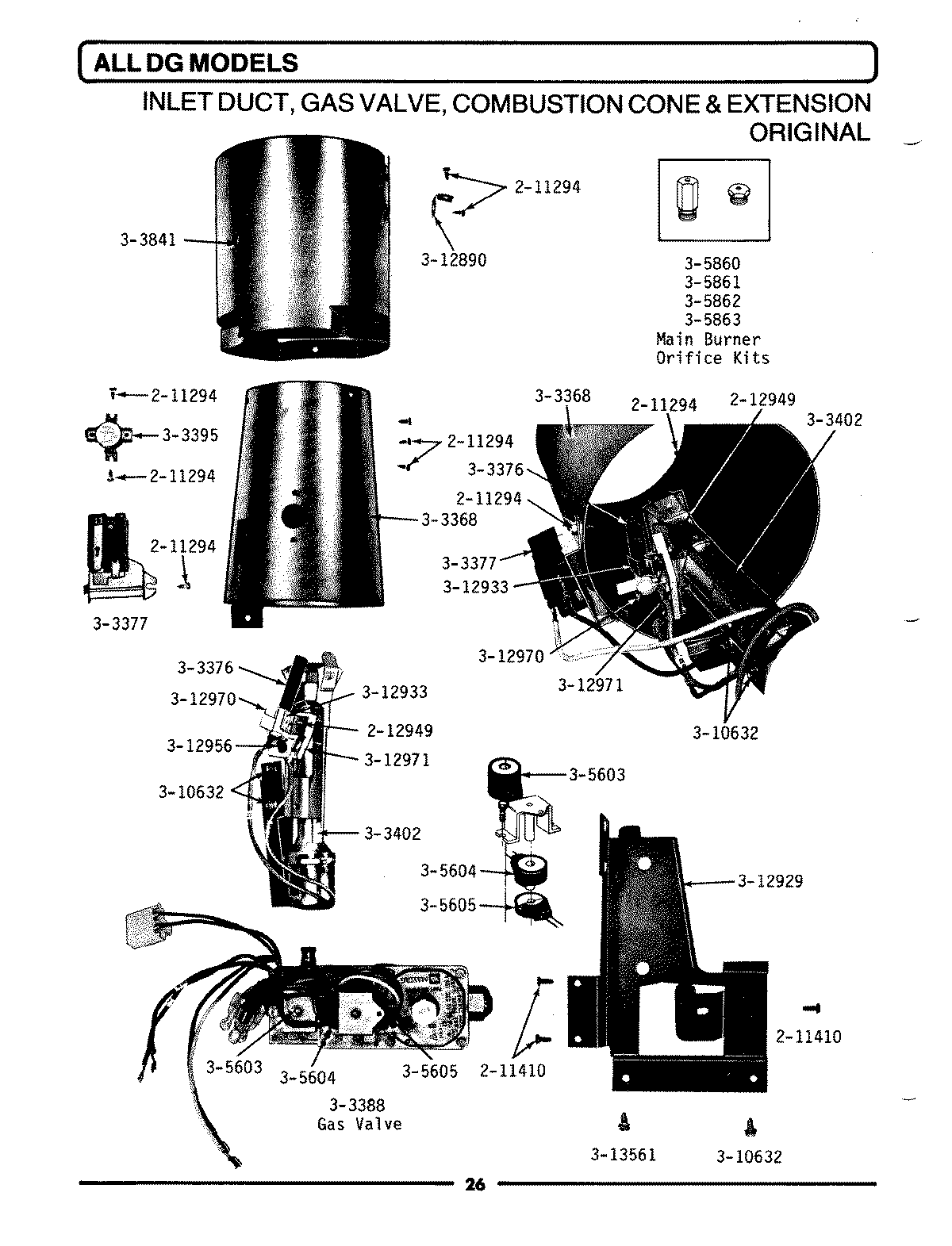

DG106 05 – INLET DUCT, GAS VALVE, CONE & EXTENSION

Products

Position	Product
1	WP90767 Whirlpool Screw
2	MAY 211410
3	SCREW, BUSHINGS
4	SCREW ASSEMBLY – LEAK LIMIT
5	MAY 302810
6	MAY Y303349
7	MAY Y303368
8	MAY 303376
9	WP338906 Whirlpool Dryer Gas Sensor
10	MAY Y303383
11	MAY W10116794
12	WP303395 Whirlpool Thermostat
13	MAY Y303402
14	MAY Y303841
15	MAY Y304672
16	MAY 305603
17	MAY 305604
18	WP305605 Whirlpool Coil Assembly
19	MAY 305860
20	MAY 305861
21	MAY 305862
22	MAY 305863
23	MAY 306184
24	CONVERSION KIT (NAT.TO LP)
25	MAY Y310632
26	MAY Y312890
27	MAY 312929
28	MAY 312933
29	MAY 312956
30	MAY 312970
31	MAY Y312971
32	MAY Y313561
