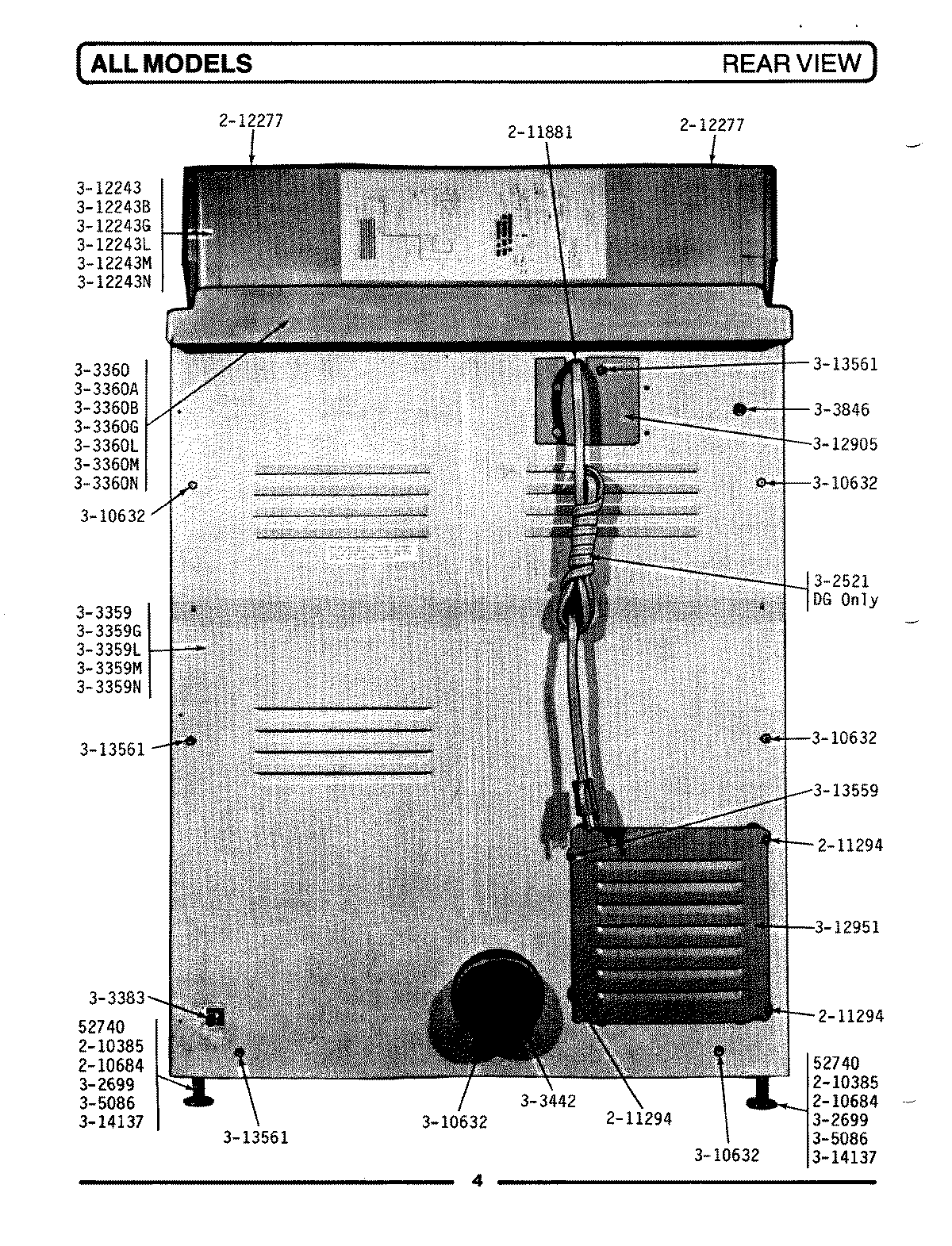

DG106 09 – REAR VIEW

Products

Position	Product
1	WP62739 Whirlpool Nut
2	MAY Y201808
3	WP210385 Whirlpool Lock Nut
4	WP210684 Whirlpool Dishwasher Leveling Leg Pad
5	WP90767 Whirlpool Screw
6	GROMMET
7	WP1163283 Whirlpool Air Conditioner Screw
8	MAY 301548
9	MAY 302521
10	LEG, ADJUSTABLE (W/NUT)—S
11	MAY 303359
12	MAY 303359G
13	MAY 303359L
14	MAY 303359M
15	MAY 303359N
16	TOP COVER-WHITE
17	MAY 303360A
18	MAY 303360B
19	MAY 303360G
20	MAY 303360L
21	MAY 303360M
22	MAY 303360N
23	MAY Y303383
24	MAY Y303442
25	MAY 303846
26	W10176519 Whirlpool Leveling Feet
27	MAY Y310632
28	WP311155 Whirlpool Wire Assembly
29	WPY311270 Whirlpool Washer TE
30	PART NOT USED
31	WP112432 Whirlpool Nut Assembly
32	PART NOT USED
33	SCREW, No.10-24 X 3/4 INCH—–O
34	MAY 312243
35	MAY 312243B
36	MAY 312243G
37	MAY 312243L
38	MAY 312243M
39	MAY 312243N
40	PART NOT USED
41	MAY Y312905
42	MAY Y312951
43	MAY 313122
44	MAY Y313561
45	MAY Y313559
46	WPY314137 Whirlpool Rubber Foot
47	PART NOT USED
