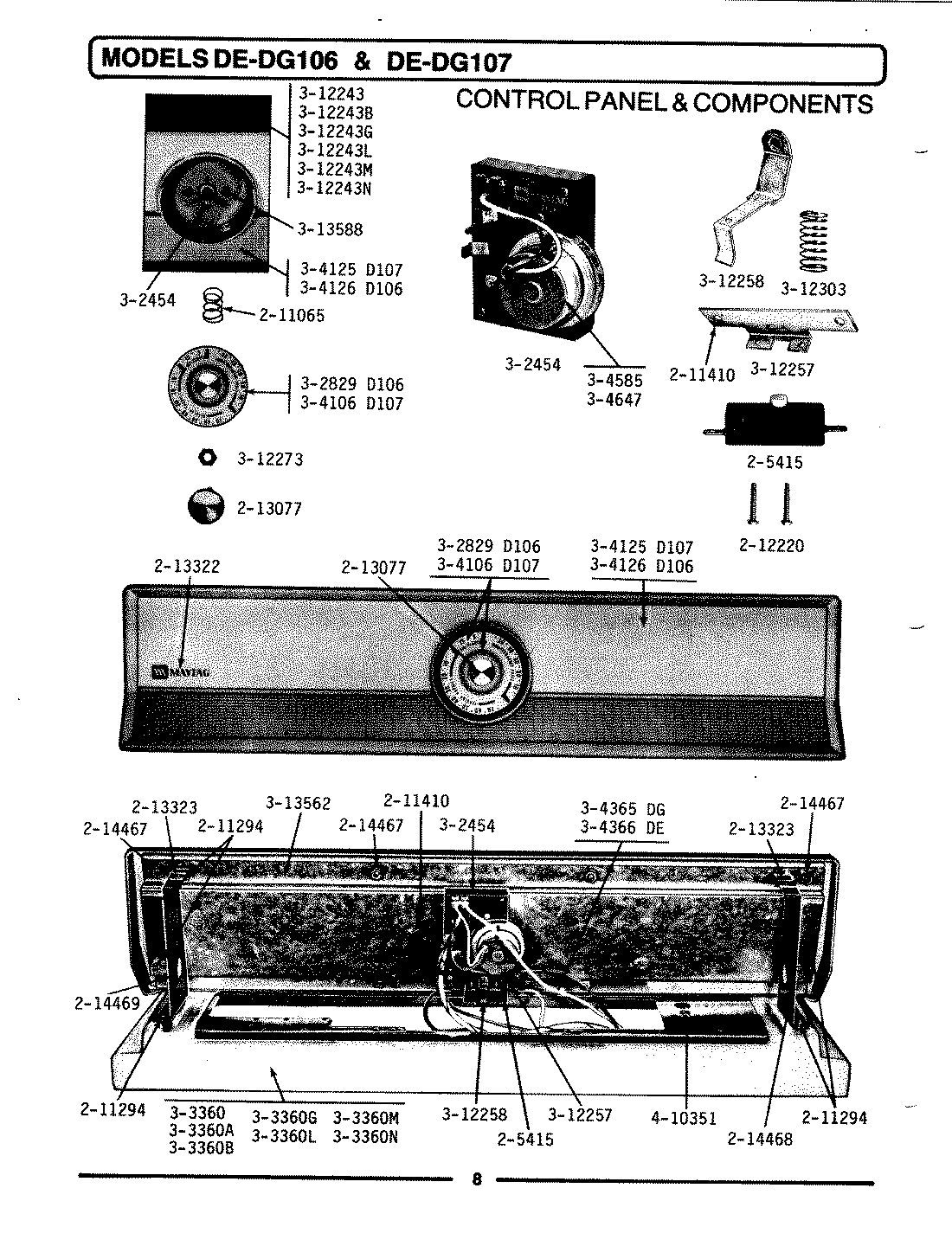

DG107 01 – CONTROL PANEL & COMPONENTS

Products

Position	Product
1	W10820036 Whirlpool Door Switch Kit
2	WP211065 Whirlpool Timer Spring
3	WP90767 Whirlpool Screw
4	MAY 211410
5	MAY 212220
6	MAY 213077
7	MAY 213322
8	MAY 213323
9	MAY 214467
10	MAY 214468
11	MAY 214469
12	MAY Y302454
14	TOP COVER-WHITE
15	MAY 303360A
16	MAY 303360B
17	MAY 303360G
18	MAY 303360L
19	MAY 303360M
20	MAY 303360N
21	MAY Y304106
22	CONTROL PANEL, SUN-GLOW
24	MAY 304365
25	MAY 304366
26	MAY Y304585
27	MAY 304647
28	MAY 312243
29	MAY 312243B
30	MAY 312243G
31	MAY 312243L
32	MAY 312243M
33	MAY 312243N
34	BRACKET
35	MAY 312258
36	W10155650 Whirlpool Nut
37	MAY 312303
38	MAY 313562
39	WP488234 Whirlpool Air Conditioner Screw
