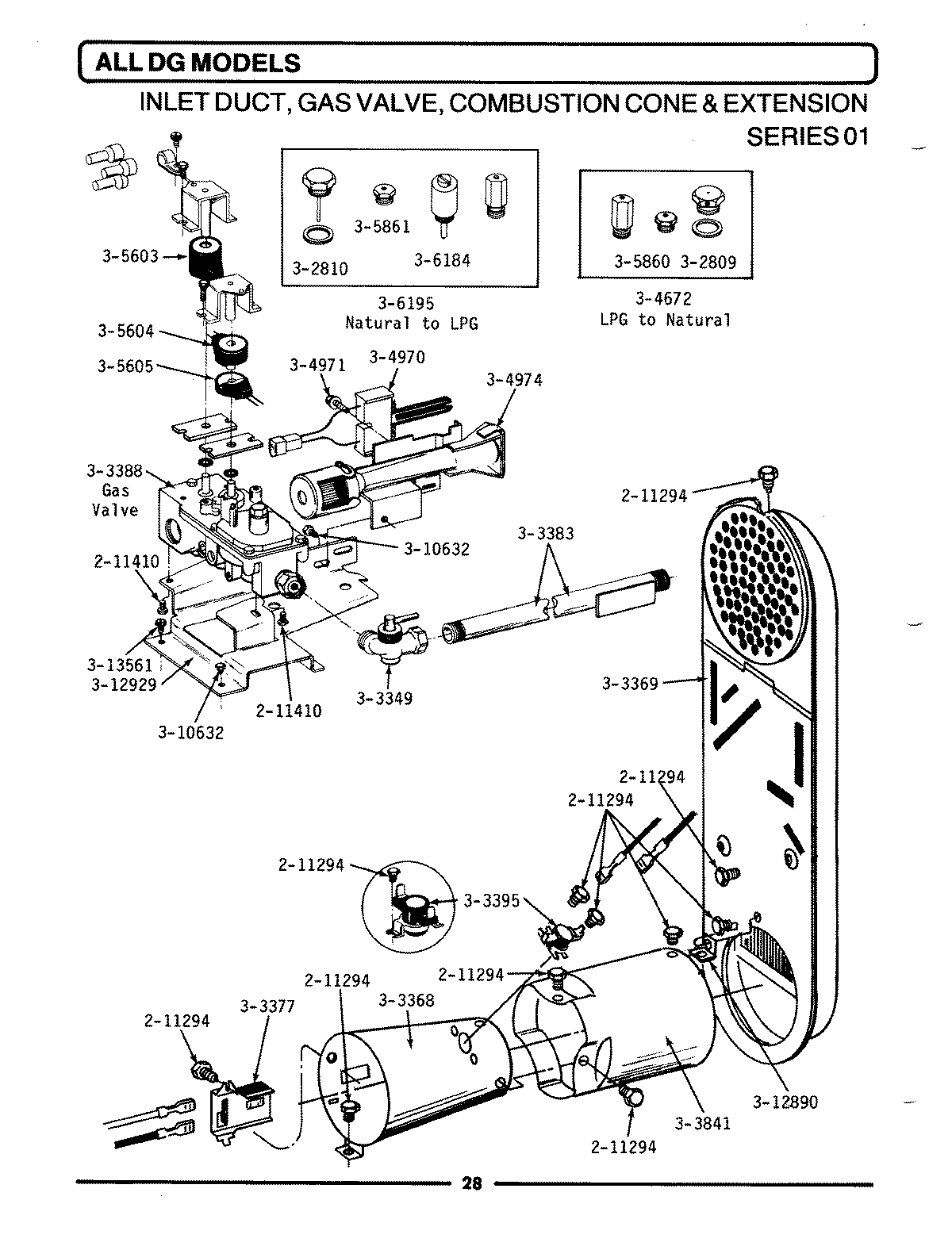

DG107 04 – INLET DUCT, GAS VALVE, CONE & EXT. (01)

Products

Position	Product
1	WP90767 Whirlpool Screw
2	MAY 211410
3	SCREW ASSEMBLY – LEAK LIMIT
4	MAY 302810
5	MAY Y303349
6	MAY Y303368
7	MAY Y303369
8	WP338906 Whirlpool Dryer Gas Sensor
9	MAY Y303383
10	MAY W10116794
11	WP303395 Whirlpool Thermostat
12	MAY Y303841
13	MAY Y304672
14	4391996 Whirlpool Dryer Flat Igniter
15	MAY 304971
16	MAY 304974
17	MAY 305603
18	MAY 305604
19	WP305605 Whirlpool Coil Assembly
20	MAY 305860
21	MAY 305861
22	MAY 305862
23	MAY 305863
24	MAY 306184
25	CONVERSION KIT (NAT.TO LP)
26	MAY Y310632
27	MAY Y312890
28	MAY 312929
29	MAY Y313561
