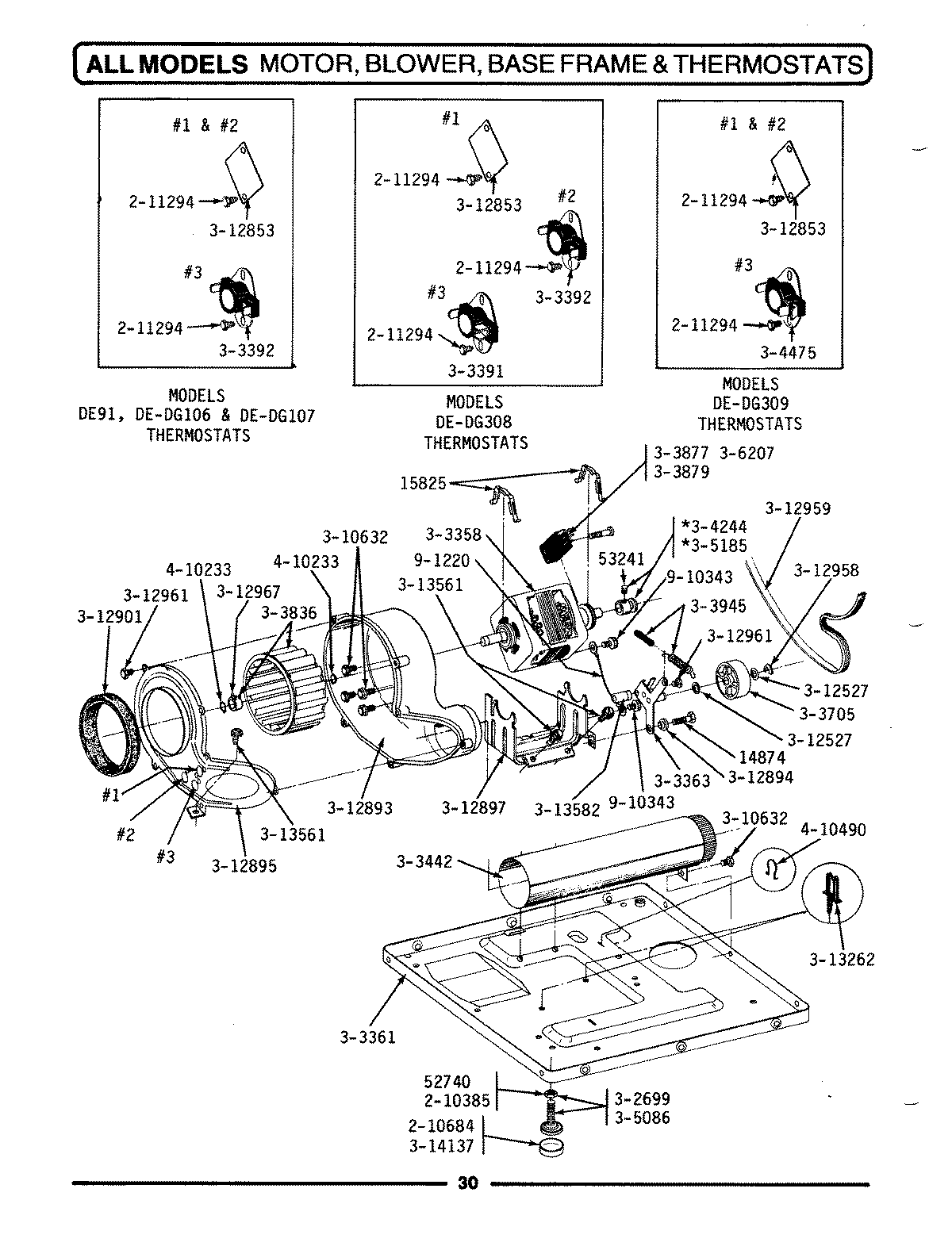

DG107 08 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

PositionProduct
1WPY014874 Whirlpool Screw
2WPY015825 Whirlpool Motor Clip
3WP62739 Whirlpool Nut
4MAY Y053241
5WP210385 Whirlpool Lock Nut
6WP210684 Whirlpool Dishwasher Leveling Leg Pad
7WP90767 Whirlpool Screw
8LEG, ADJUSTABLE (W/NUT)—S
9W10410999 Whirlpool Dryer Drive Motor
10MAY Y303361
11WP6-3033630 Whirlpool Dryer Idler Arm Assembly
12WP694674 Whirlpool Cycling Thermostat
13MAY Y303442
14WP6-3037050 Whirlpool Idler Pulley
15Y303836 Whirlpool Dryer Blower Wheel
16MAY Y303877
17MAY Y303879
18MAY Y303945
19WP6-3042440 Whirlpool Motor Pulley
20W10176519 Whirlpool Leveling Feet
21MAY Y305185
22MAY 306207
23MAY Y310632
24MAY Y312527
25MAY Y312853
26MAY Y312893
27SLEEVE, IDLER ARM —-S
28MAY Y312895
29MAY 312897
30WPY312901 Whirlpool Blow Seal
31WP354987 Whirlpool C-Clip
32WPY312959 Whirlpool Dryer Drum Belt
33WPW10116751 Whirlpool Screw
34WP312967 Whirlpool Clamp
35MAY Y313262
36MAY Y313561
37WPW10116756 Whirlpool Spacer
38WPY314137 Whirlpool Rubber Foot
39WP9703438 Whirlpool Snap Retaining Ring
40MAY 410490
41MAY 901220
42MAY 910343
