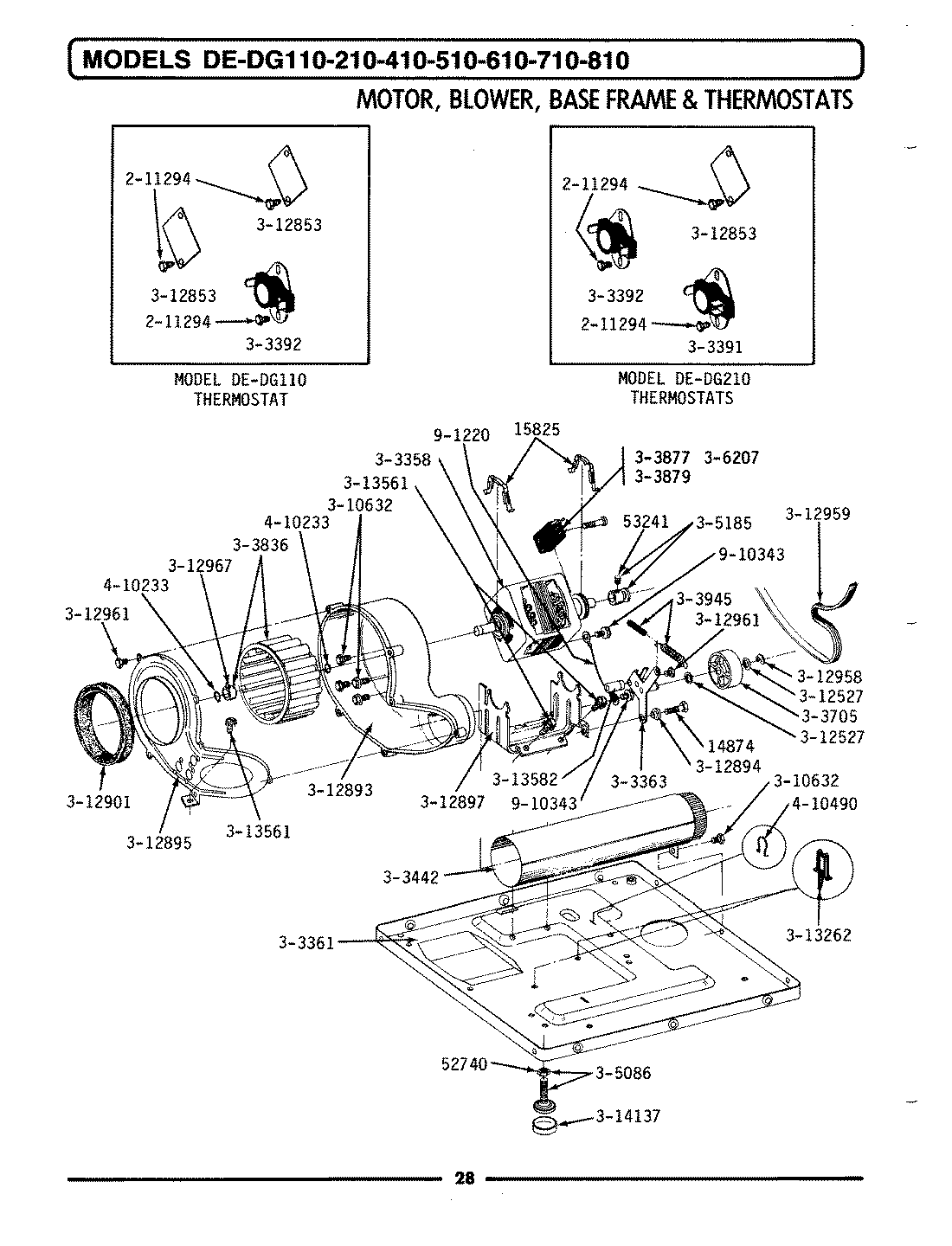

DG110 07 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

DG110 07 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Written by

in

DG110 07 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

PositionProduct
1WPY014874 Whirlpool Screw
2WPY015825 Whirlpool Motor Clip
3WP62739 Whirlpool Nut
4MAY Y053241
5WP90767 Whirlpool Screw
6W10410999 Whirlpool Dryer Drive Motor
7MAY Y303361
8WP6-3033630 Whirlpool Dryer Idler Arm Assembly
9WP33303391 Whirlpool Thermostat
10WP694674 Whirlpool Cycling Thermostat
11MAY Y303394
12MAY Y303442
13WP6-3037050 Whirlpool Idler Pulley
14Y303836 Whirlpool Dryer Blower Wheel
15MAY Y303877
16MAY Y303879
17MAY Y303945
18WPY304474 Whirlpool Cycling Thermostat
19CYCLING TSTAT
20W10176519 Whirlpool Leveling Feet
21MAY Y305185
22MAY Y310632
23MAY 306207
24MAY Y312527
25MAY Y312853
26MAY Y312893
27SLEEVE, IDLER ARM —-S
28MAY Y312895
29MAY 312897
30WPY312901 Whirlpool Blow Seal
31WP354987 Whirlpool C-Clip
32WPY312959 Whirlpool Dryer Drum Belt
33WPW10116751 Whirlpool Screw
34WP312967 Whirlpool Clamp
35MAY Y313262
36MAY Y313561
37WPW10116756 Whirlpool Spacer
38WPY314137 Whirlpool Rubber Foot
39WP9703438 Whirlpool Snap Retaining Ring
40MAY 410490
41MAY 901220
42MAY 910343
