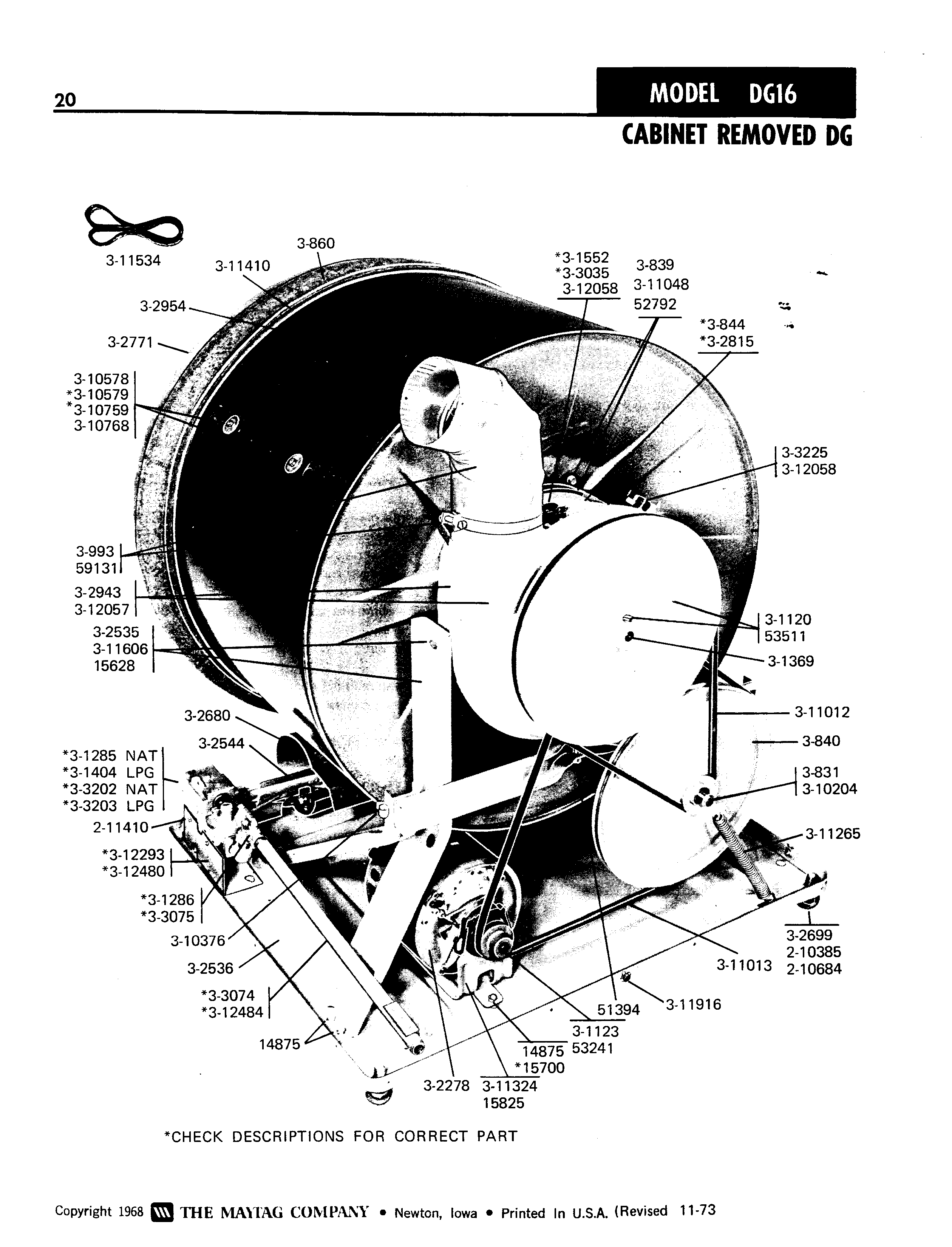

DG16CA 06 – CABINET REMOVED

Products

Position	Product
003	MAY 300840
004	MAY Y300844
006	MAY Y301120
007	Y304596 Whirlpool Terminal Insulator Assembly
008	MAY 301123
010	MAY 301393
011	MAY 301552
012	MAY Y301933
013	MAY Y302278
016	LEG, ADJUSTABLE (W/NUT)—S
017	MAY Y302815
018	MAY 302943
020	WP694674 Whirlpool Cycling Thermostat
021	MAY Y303036
022	PART NOT USED
024	MAY 310262
025	MAY Y310376
028	MAY Y310759
030	MAY 310933
031	MAY Y311012
032	MAY Y311013
034	MAY 311265
036	MAY 311534
038	MAY Y311916
039	MAY 311944
040	MAY Y311945
041	MAY Y311946
042	MAY Y312057
043	MAY Y312058
044	WP210385 Whirlpool Lock Nut
045	WP210684 Whirlpool Dishwasher Leveling Leg Pad
046	WP90767 Whirlpool Screw
047	WPY014874 Whirlpool Screw
051	WPY015825 Whirlpool Motor Clip
054	MAY Y053241
055	MAY Y053511
056	DOWEL PIN FOR HANDLE
057	MAY Y059131
