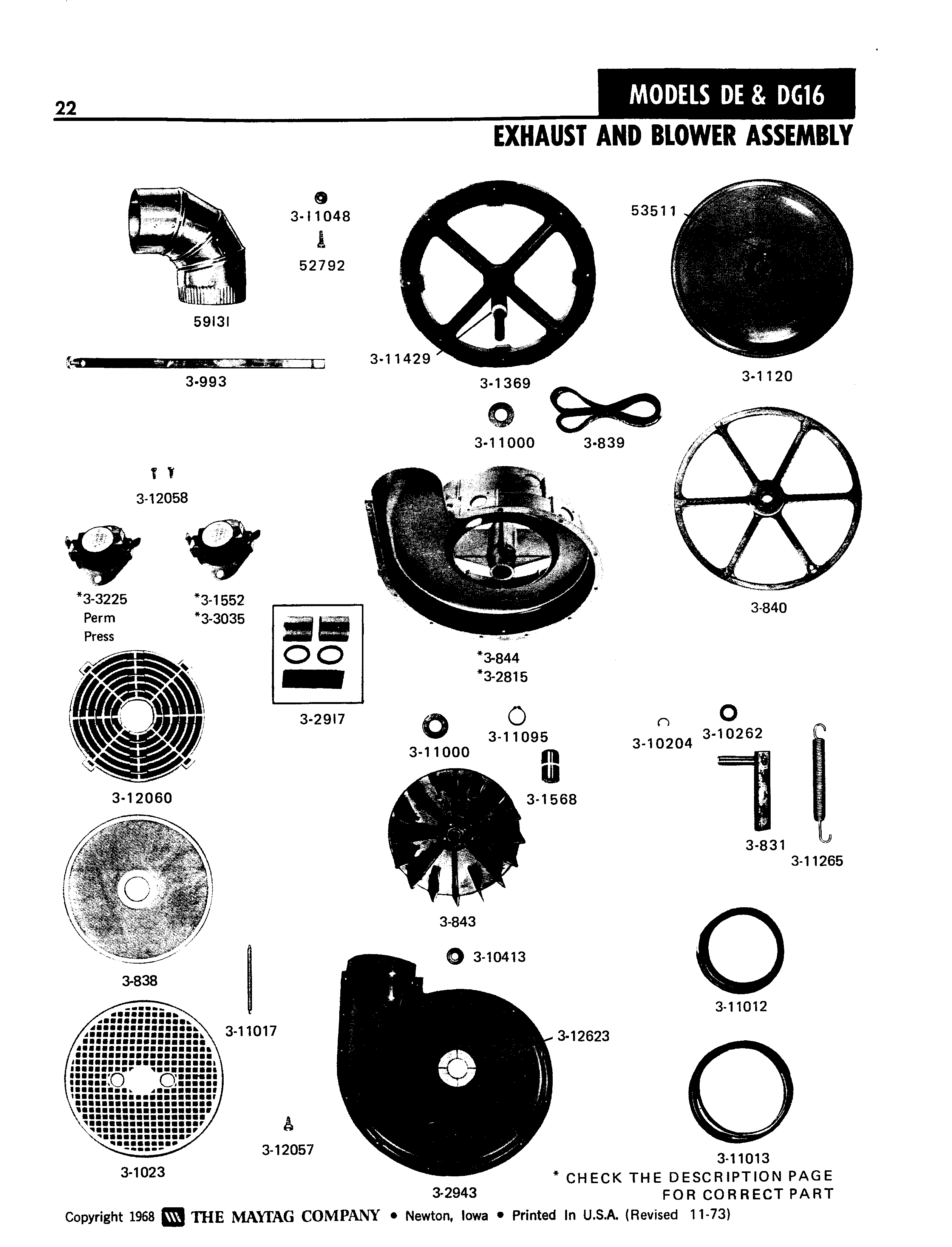

DG16CM 07 – EXHAUST & BLOWER ASSEMBLY
Products
| Position | Product |
|---|---|
| 002 | MAY 300838 |
| 004 | MAY 300840 |
| 006 | MAY Y300844 |
| 008 | MAY 301023 |
| 009 | MAY Y301120 |
| 011 | MAY 301552 |
| 013 | MAY Y302815 |
| 015 | MAY 302943 |
| 016 | WP694674 Whirlpool Cycling Thermostat |
| 017 | PART NOT USED |
| 019 | MAY 310262 |
| 020 | MAY 310413 |
| 021 | MAY 310988 |
| 022 | MAY 311000 |
| 023 | MAY Y311012 |
| 024 | MAY Y311013 |
| 025 | MAY Y311017 |
| 028 | MAY 311265 |
| 029 | MAY Y311429 |
| 030 | MAY Y312057 |
| 031 | MAY Y312058 |
| 032 | SHIELD FOR SPIDER |
| 033 | MAY Y312623 |
| 034 | DOWEL PIN FOR HANDLE |
| 035 | MAY Y053511 |
| 036 | MAY Y059131 |
