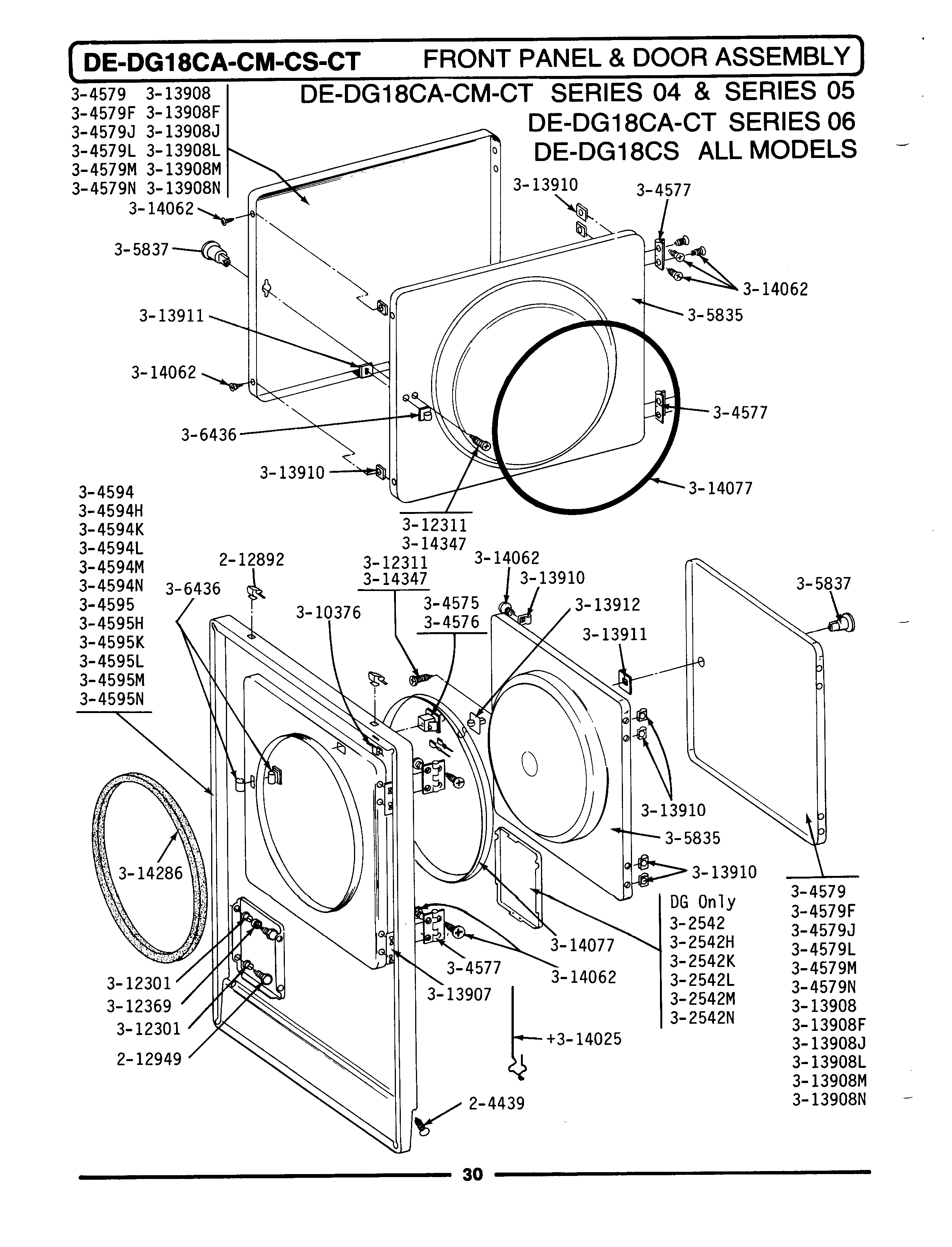

DG18CA 08 – FRONT PANEL & DOOR ASSY (SERIES 04)

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	SCREW, BUSHINGS
003	MAY 212982
007	W10169313 Whirlpool Door Switch Kit
008	MAY Y304577
009	MAY Y304579
017	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
018	MAY Y310376
021	SLEEVE, ACCESS DOOR RUBBER
022	LABEL, LINT SCREEN INSTR.
023	MAY Y313907
024	MAY Y313908
027	CLIP, DOOR LINER
028	MAY Y313911
029	MAY Y313927
030	LATCH, ACCESS DOOR
032	MAY 314077
035	DOWEL PIN FOR HANDLE
