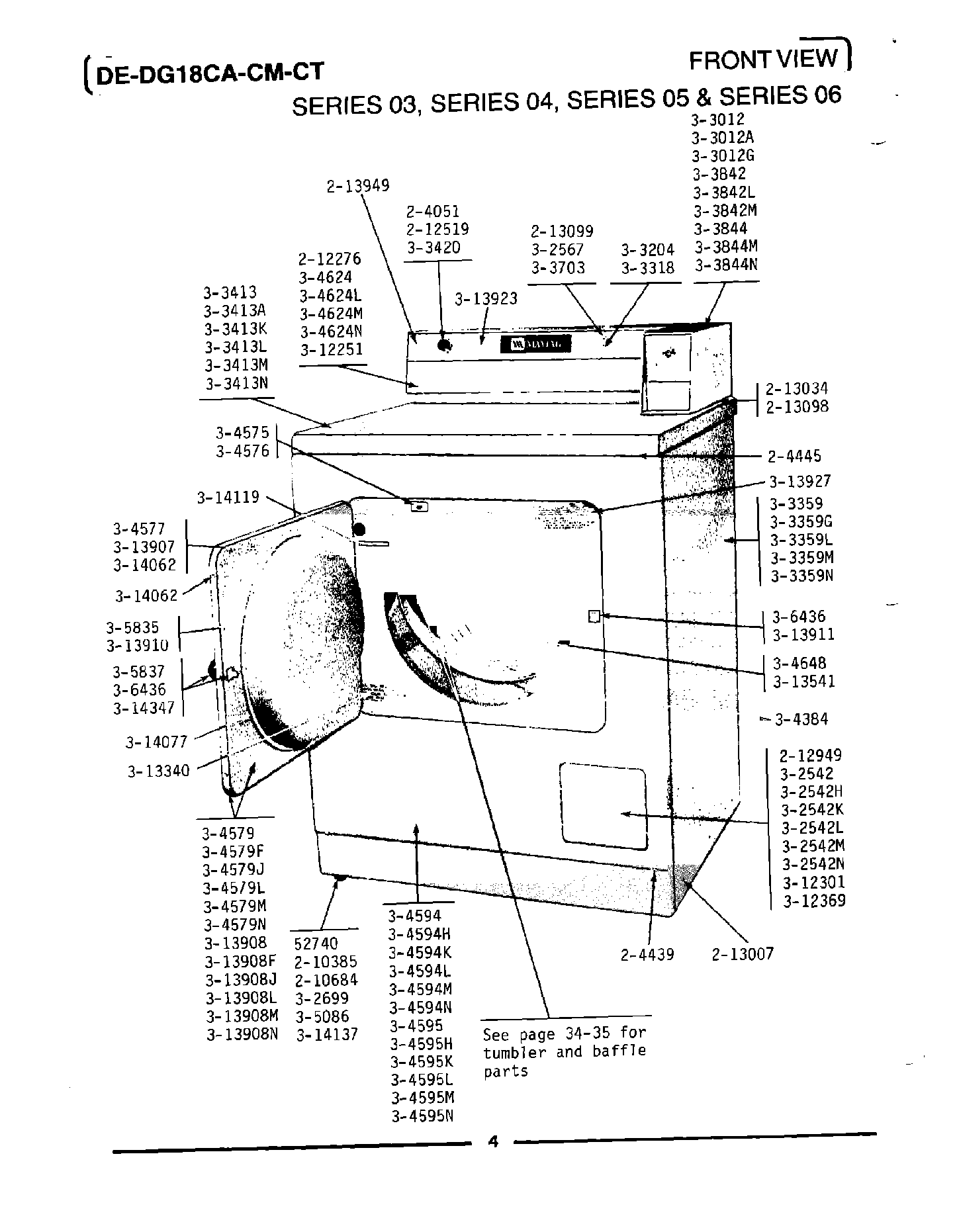

DG18CM 02 – FRONT VIEW (SERIES 03)

Products

Position	Product
001	WP62739 Whirlpool Nut
002	MAY 204051
003	SCREW & FSTNER ASSY (FT. PNL)
004	MAY 204445
005	WP210385 Whirlpool Lock Nut
006	WP210684 Whirlpool Dishwasher Leveling Leg Pad
007	MAY 212276
008	MAY 212519
009	SCREW, BUSHINGS
010	213007 Whirlpool Screw #12
012	MAY 213099
013	WP355214 Whirlpool Screw
018	LEG, ADJUSTABLE (W/NUT)—S
019	MAY Y303204
026	MAY Y303420
027	MAY Y303703
029	MAY Y304384
030	W10169313 Whirlpool Door Switch Kit
031	MAY Y304577
032	MAY Y304579
041	MAY Y304648
042	W10176519 Whirlpool Leveling Feet
045	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
048	SLEEVE, ACCESS DOOR RUBBER
049	LABEL, LINT SCREEN INSTR.
050	MAY Y313541
051	MAY Y313907
052	MAY Y313908
055	CLIP, DOOR LINER
056	MAY Y313911
058	MAY Y313927
060	MAY 314077
062	WPY314137 Whirlpool Rubber Foot
063	DOWEL PIN FOR HANDLE
