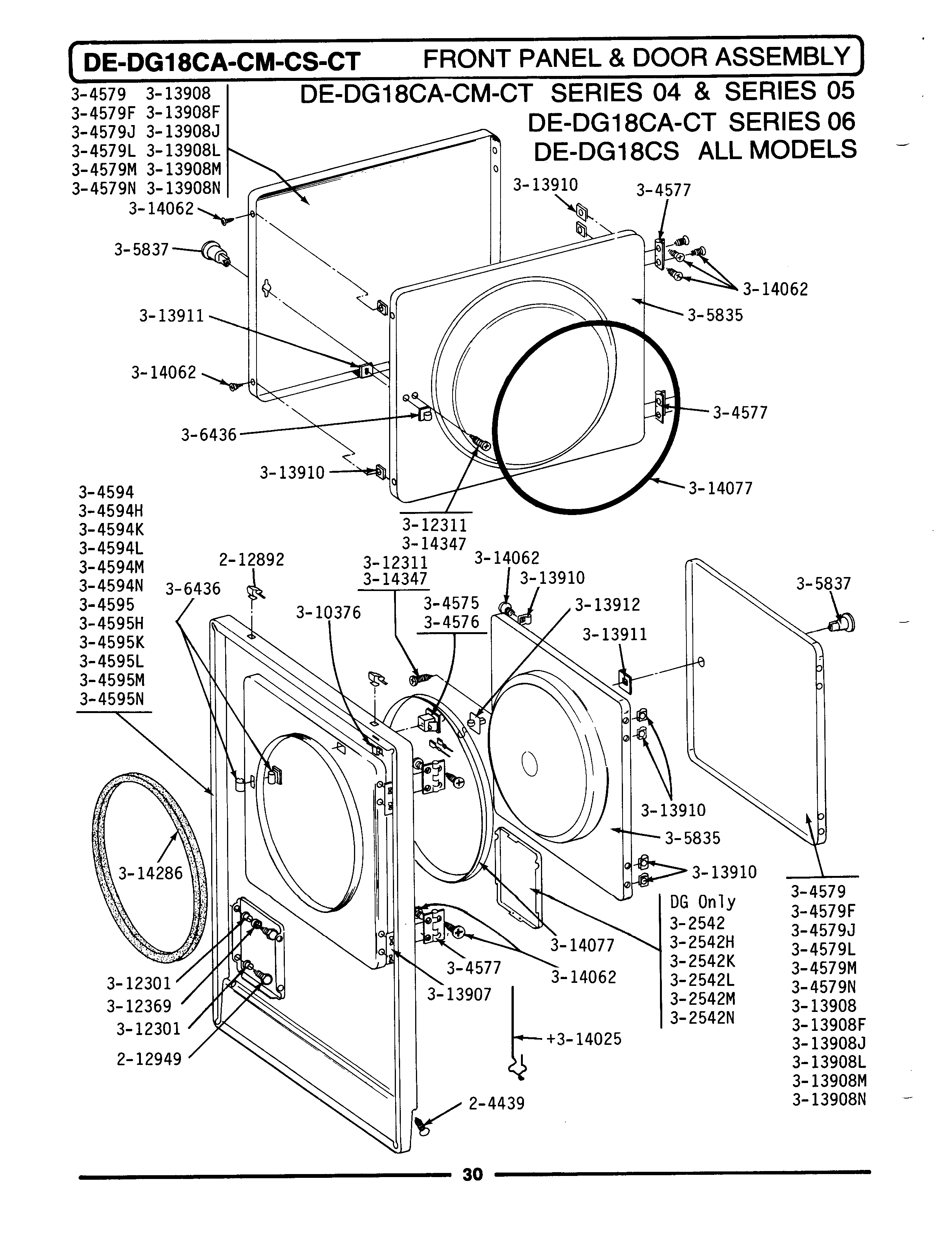

DG18CM 10 – FRONT PANEL & DOOR ASSEMBLY

DG18CM 10 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DG18CM 10 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
007W10169313 Whirlpool Door Switch Kit
008MAY Y304577
009MAY Y304579
017306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
018MAY Y310376
021SLEEVE, ACCESS DOOR RUBBER
022LABEL, LINT SCREEN INSTR.
023MAY Y313907
024MAY Y313908
027CLIP, DOOR LINER
028MAY Y313911
029MAY Y313927
030LATCH, ACCESS DOOR
032MAY 314077
035DOWEL PIN FOR HANDLE
