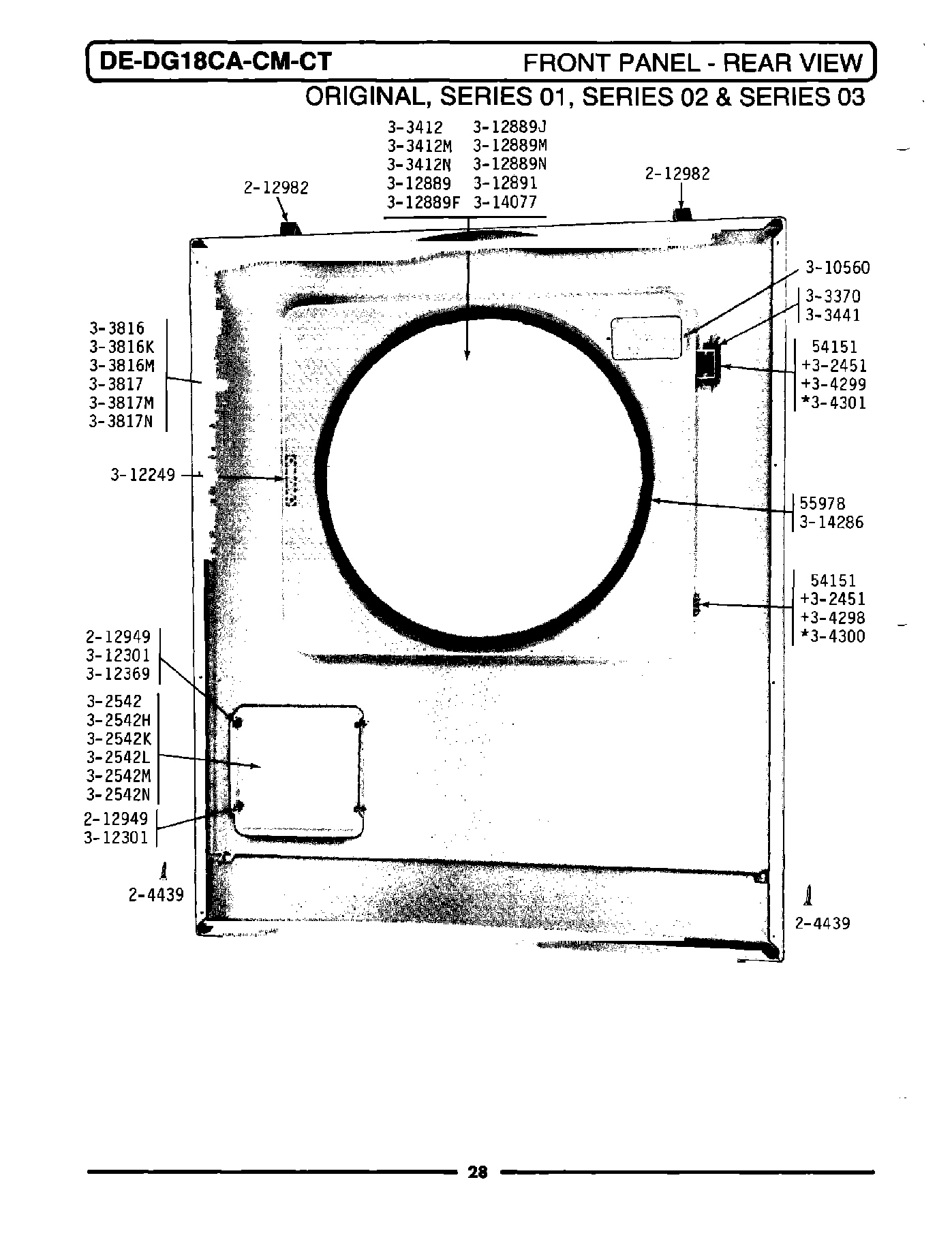

DG18CT 09 – FRONT PANEL-REAR VIEW
Written by
in
DG18CT 09 – FRONT PANEL-REAR VIEW
Products
| Position | Product |
|---|---|
| 002 | MAY Y055978 |
| 003 | SCREW & FSTNER ASSY (FT. PNL) |
| 004 | SCREW, BUSHINGS |
| 005 | MAY 212982 |
| 010 | MAY Y303370 |
| 016 | MAY Y304298 |
| 020 | MAY 310560 |
| 023 | SLEEVE, ACCESS DOOR RUBBER |
| 026 | MAY Y312891 |
| 027 | LABEL, LINT SCREEN INSTR. |
| 028 | MAY Y313927 |
| 029 | MAY 314077 |
| 030 | DOWEL PIN FOR HANDLE |
