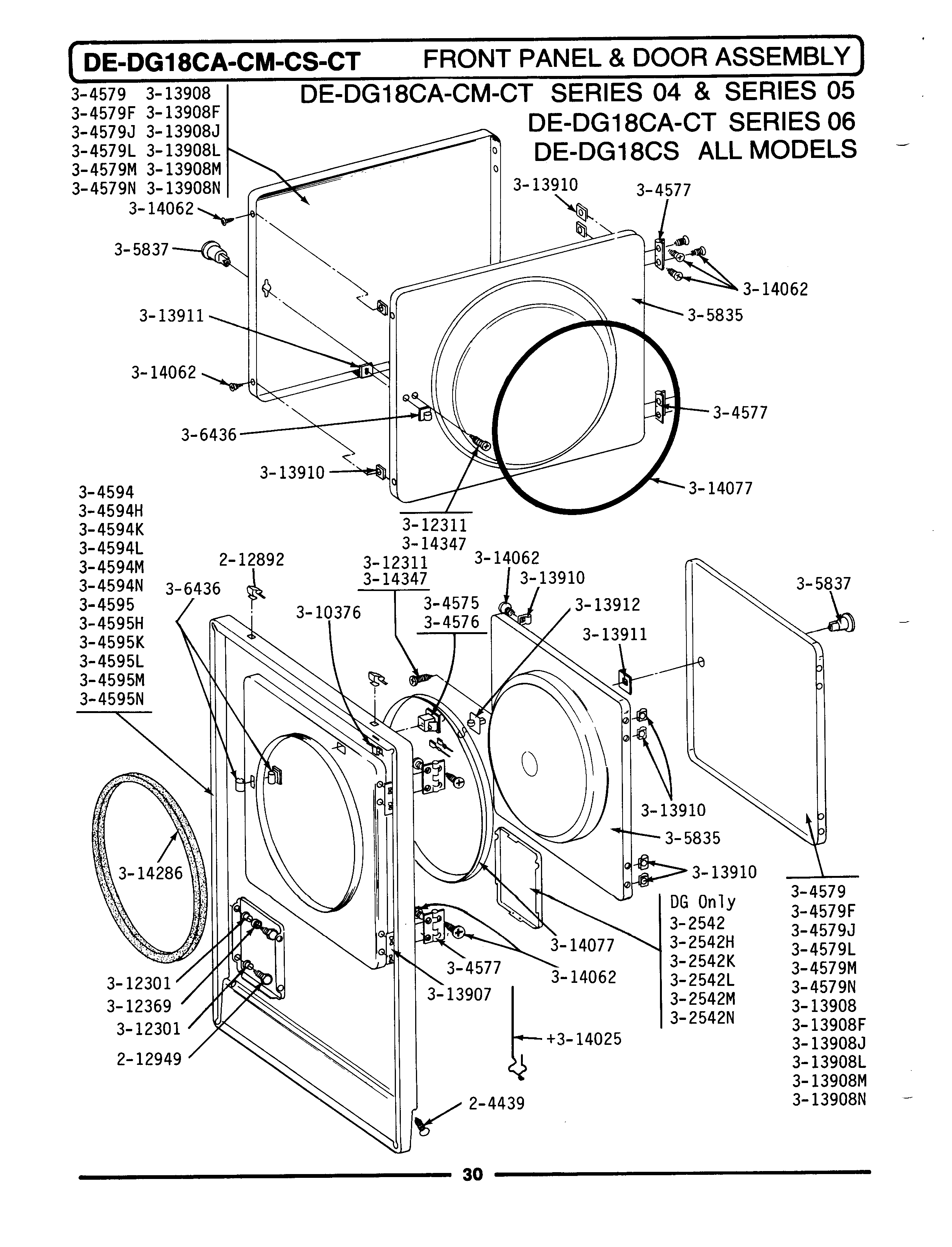

DG18CT 11 – FRONT PANEL & DOOR ASSY (SERIES 06)

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	SCREW, BUSHINGS
003	MAY 212982
007	W10169313 Whirlpool Door Switch Kit
008	MAY Y304577
009	MAY Y304579
016	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
017	MAY Y310376
020	SLEEVE, ACCESS DOOR RUBBER
021	LABEL, LINT SCREEN INSTR.
022	MAY Y313907
023	MAY Y313908
026	CLIP, DOOR LINER
027	MAY Y313911
028	MAY Y313927
029	LATCH, ACCESS DOOR
031	MAY 314077
034	DOWEL PIN FOR HANDLE
