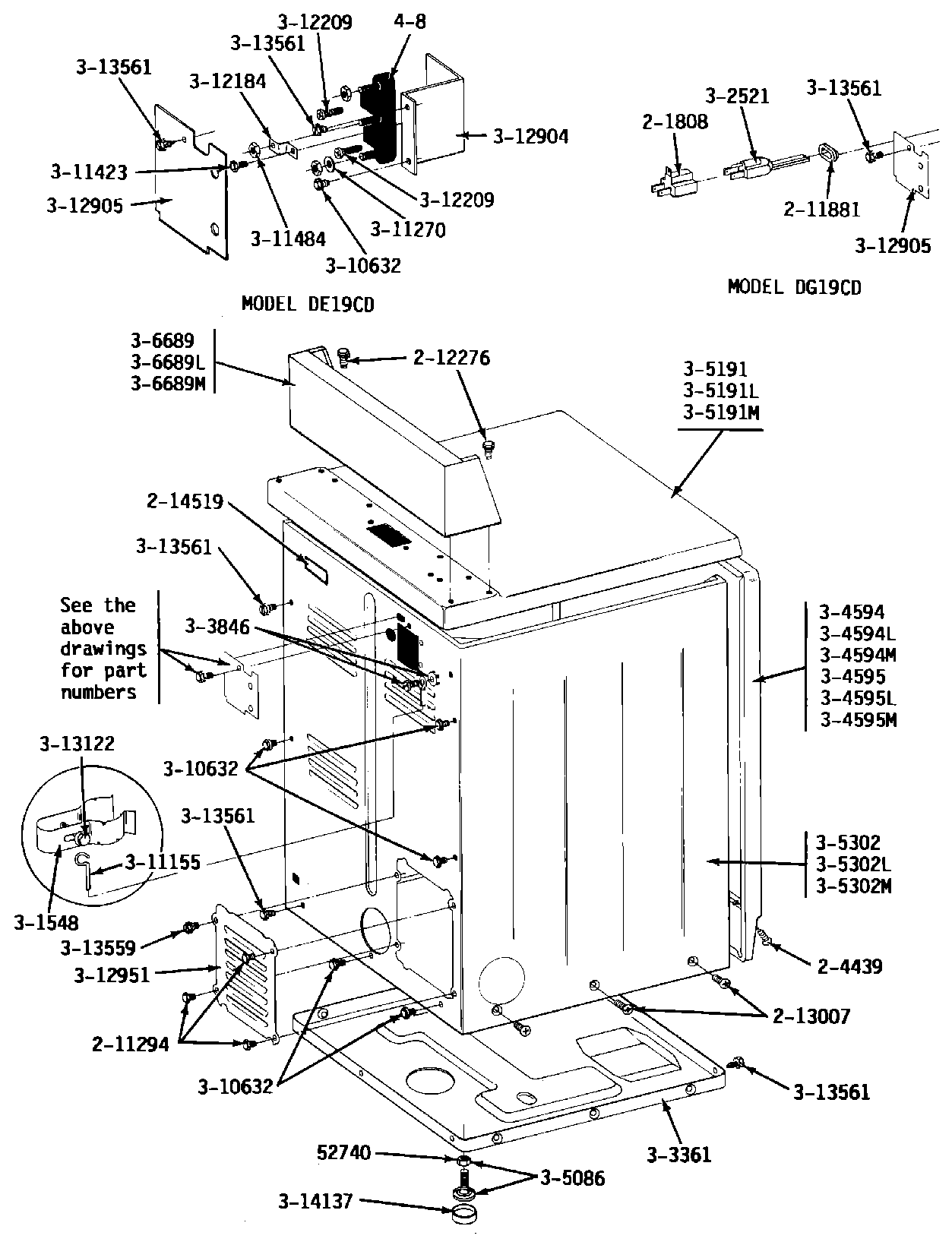

DG19CD 03 – REAR VIEW

DG19CD 03 – REAR VIEW

Written by

in

DG19CD 03 – REAR VIEW

Products

PositionProduct
001WP62739 Whirlpool Nut
002MAY Y201808
003SCREW & FSTNER ASSY (FT. PNL)
004WP90767 Whirlpool Screw
005GROMMET
006MAY 212276
007213007 Whirlpool Screw #12
008INSTRUCTION LABEL
009MAY 301548
010MAY 302521
011MAY Y303361
019W10176519 Whirlpool Leveling Feet
020MAY Y305191
028DOWEL PIN FOR HANDLE
030WP311155 Whirlpool Wire Assembly
037MAY Y312905
038MAY Y312951
039MAY 313122
040MAY Y313559
042WPY314137 Whirlpool Rubber Foot
