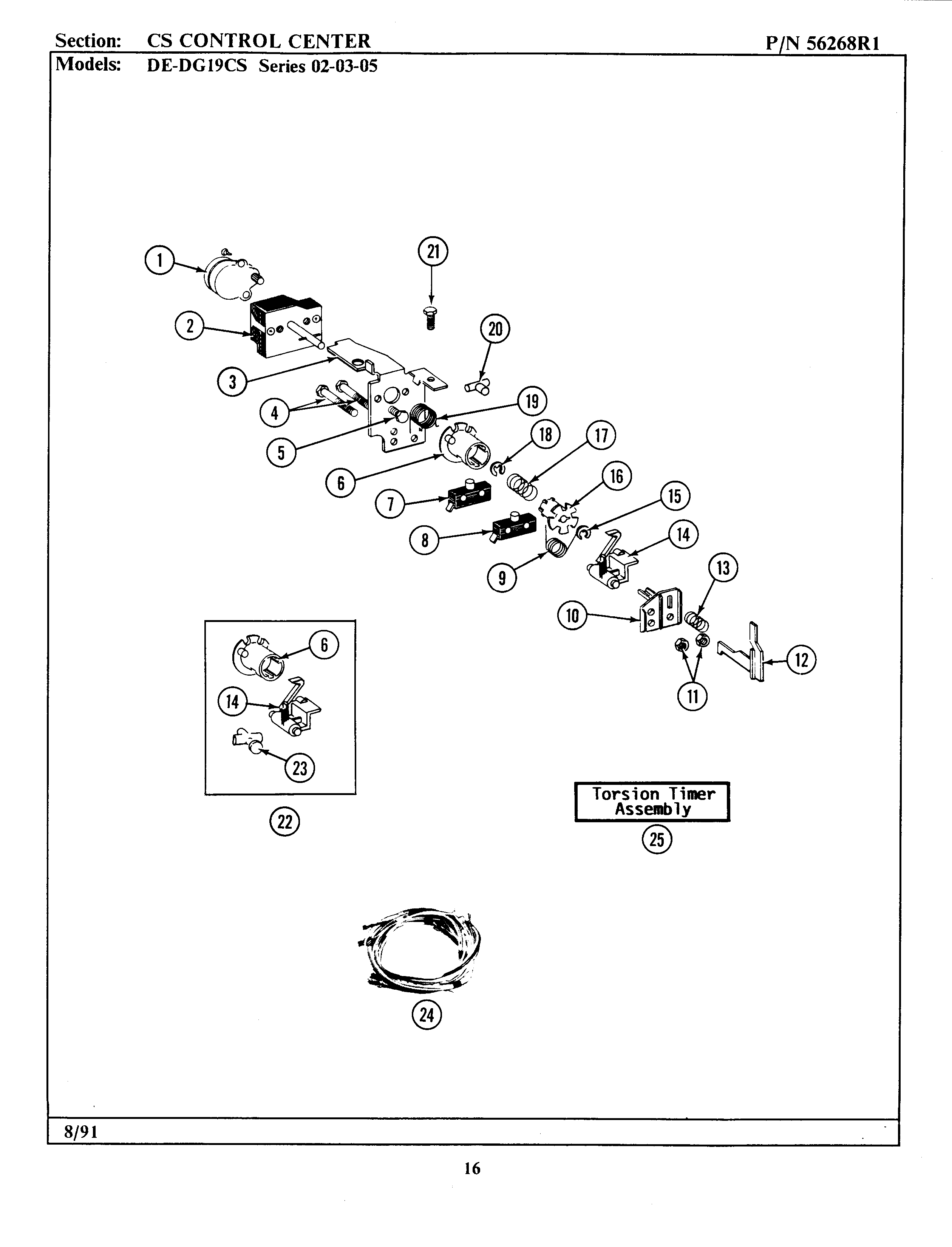

DG19CS 08 – CONTROL CENTER (SERIES 02)
Written by
in
DG19CS 08 – CONTROL CENTER (SERIES 02)
Products
| Position | Product |
|---|---|
| 001 | TIMER MOTOR RPR |
| 002 | MAY 305813 |
| 002 | MAY 305796 |
| 003 | TIMER MOUNTING BRACKET |
| 004 | MAY 315277 |
| 005 | MAY 910708 |
| 006 | MAY 314546 |
| 007 | MAY Y305799 |
| 008 | MAY 305798 |
| 009 | MAY 314332 |
| 010 | MAY 314339 |
| 011 | MAY Y052634 |
| 012 | 33002968 Whirlpool Slider |
| 014 | MAY 314548 |
| 016 | MAY 314330 |
| 017 | WP211065 Whirlpool Timer Spring |
| 018 | MAY Y312270 |
| 020 | TIME ADJUSTMENT PEG |
| 021 | WPW10139210 Whirlpool Screw |
| 022 | MAY 306104 |
| 023 | MAY 314547 |
| 024 | MAY 305800 |
| 024 | DOWEL PIN FOR HANDLE |
| 025 | MAY 305797 |
