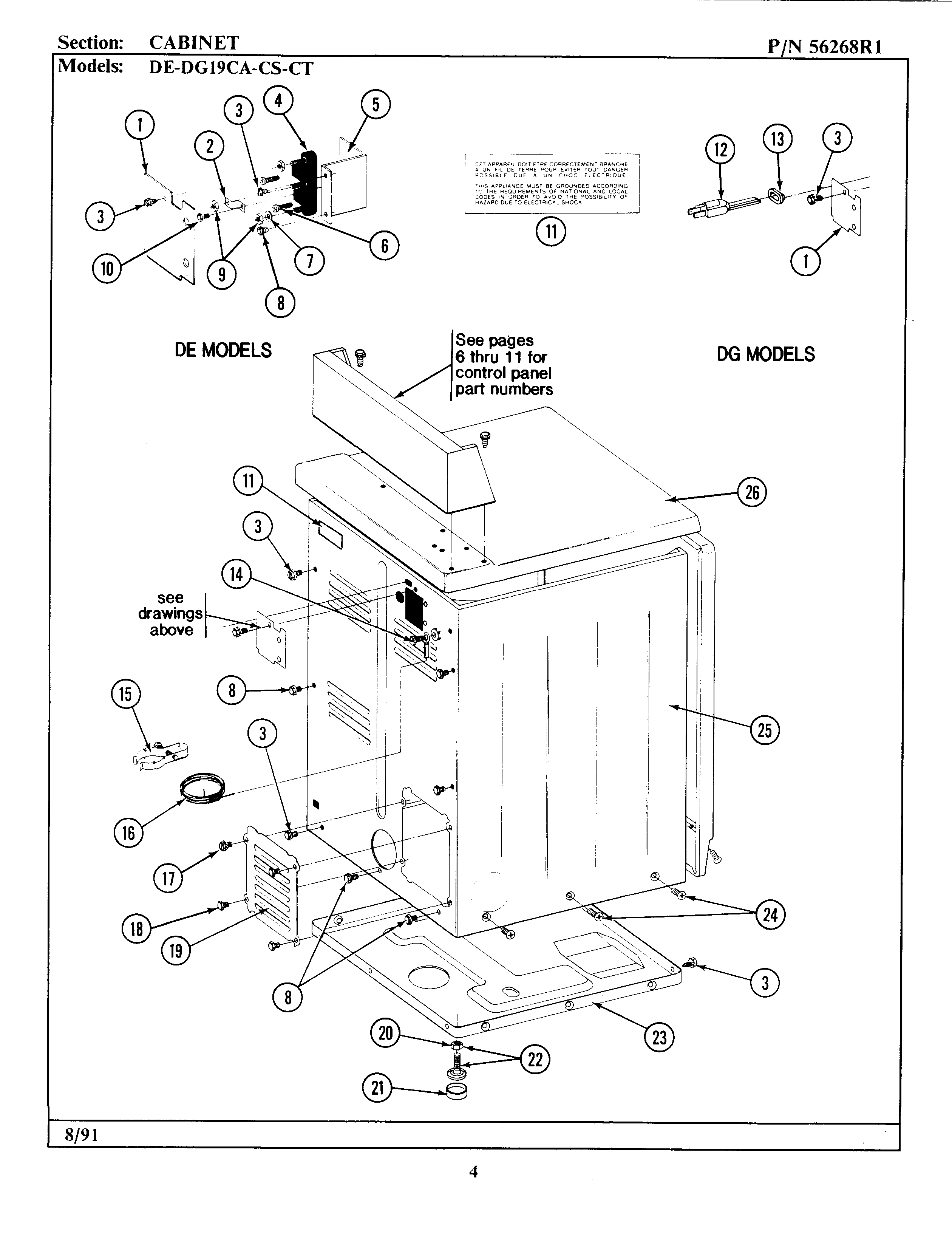

DG19CT 02 – CABINET-REAR

Products

PositionProduct
001MAY Y312905
002MAY Y313561
003MAY Y310632
004INSTRUCTION LABEL
005MAY 302521
006GROMMET
008MAY 301548
009WP311155 Whirlpool Wire Assembly
010MAY Y313559
011WP90767 Whirlpool Screw
012MAY Y312951
013WP62739 Whirlpool Nut
014WPY314137 Whirlpool Rubber Foot
015W10176519 Whirlpool Leveling Feet
016MAY Y303361
017213007 Whirlpool Screw #12
021MAY Y305191
023DOWEL PIN FOR HANDLE
