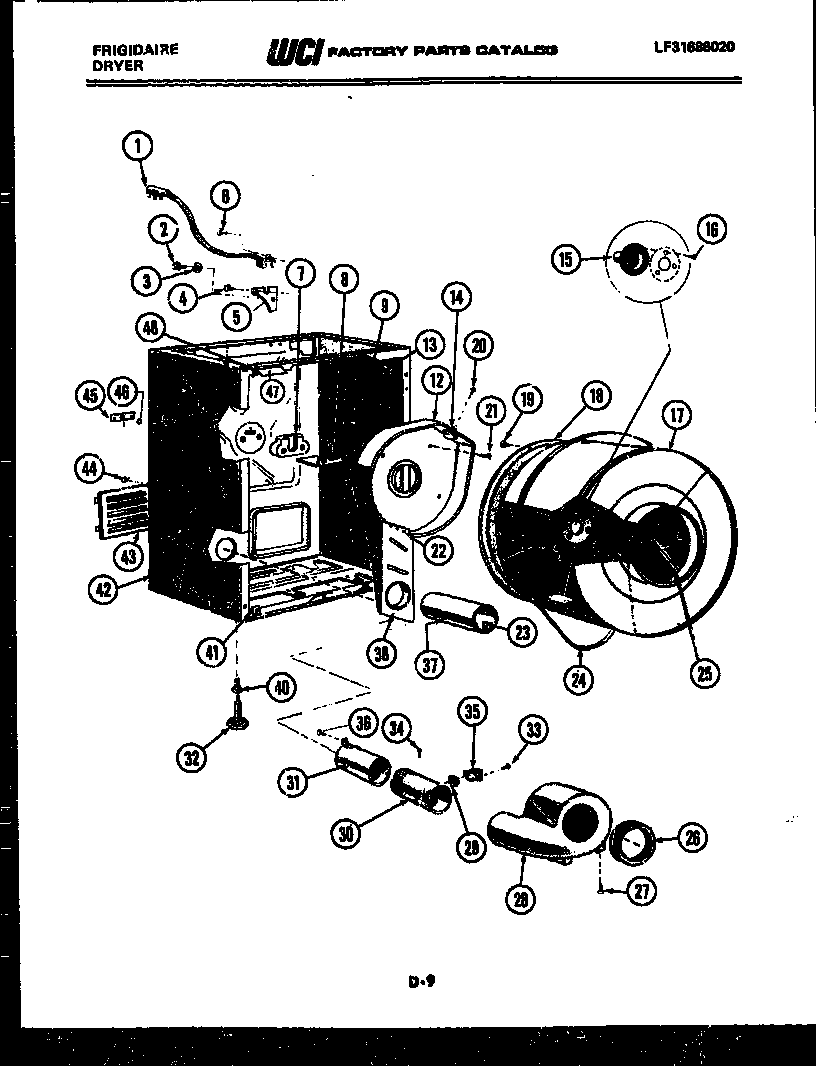

DG2000DL1 03 – CABINET AND COMPONENT PARTS

Products

PositionProduct
1WCI 08027406
2134154100 Frigidaire Screw 10-32 x 0.375 Co
3WCI 08001872
4WCI 08015285
5WCI 08027407
6WCI 08015309
7131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
8131724301 Frigidaire Dryer Drum Bearing Bracket
9131205400 Frigidaire Screw
12WCI 08016434
145308015399 Frigidaire P-1 THERMSTAT-Safety
155303931781 Frigidaire Shaft
16WCI 08015361
17WCI 08015433
183204254 Frigidaire Baffle Assembly
19WCI 08015311
20WCI 08001840
245303281154 Frigidaire Dryer Belt (Flat Style)
25AWCI 08015426
25WCI 08015427
25BSCREW
26134417000 Frigidaire Seal
27WCI 08015296
28WCI 08015248
29WCI 08015417
30WCI 08027408
31WCI 08015262
32WCI 08027409
35WCI 08027410
36SCREW
37WCI 08015212
38WCI 08015176
40WCI 08027411
41WCI 08027412
42WCI 08027413
43WCI 08015170
44SCREW (2)
455303281020 Frigidaire Ball Clip
465303281019 Frigidaire Ball Assembly
47WCI 08027415
48WCI 08027416
