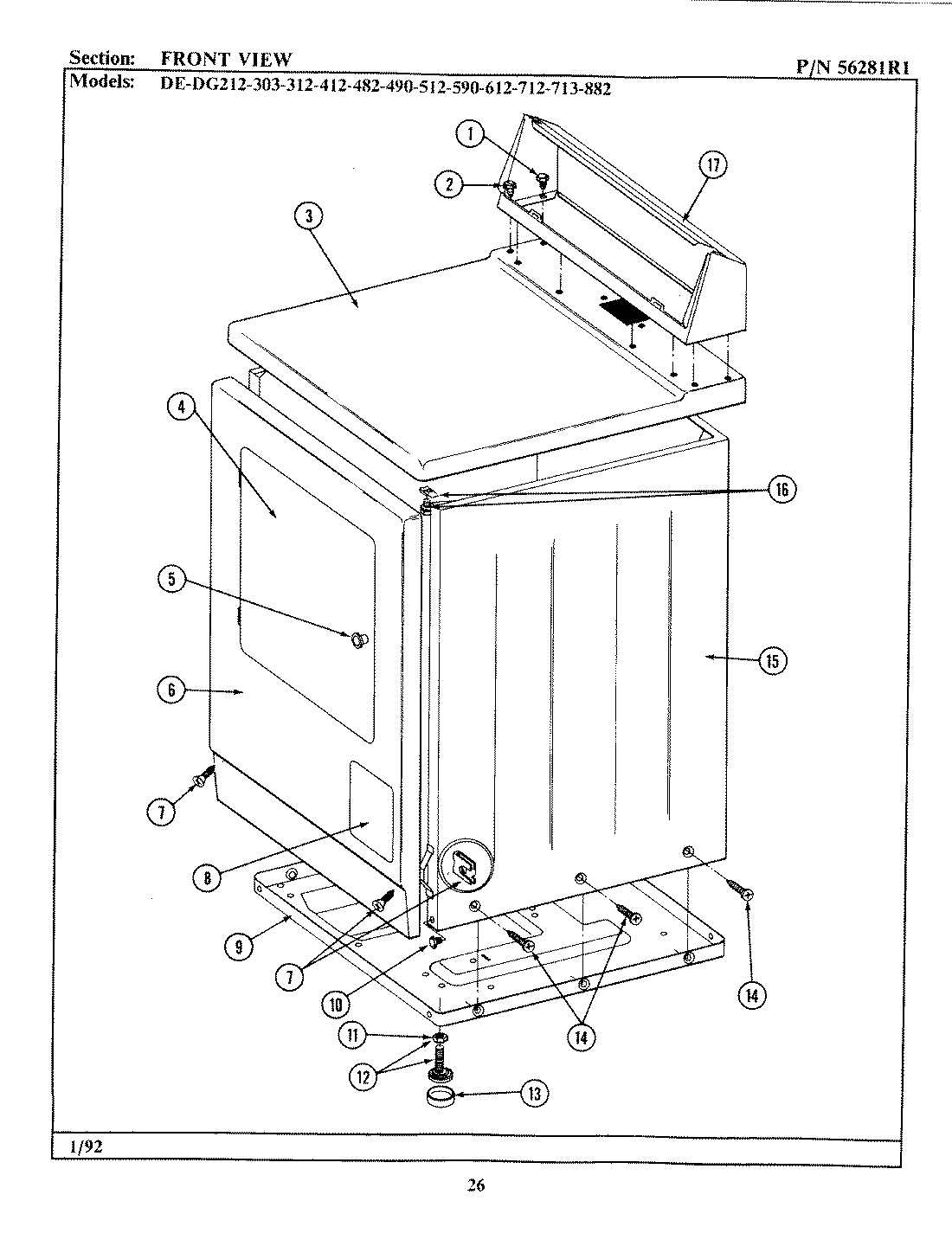

DG212 04 – FRONT VIEW

DG212 04 – FRONT VIEW

Written by

in

DG212 04 – FRONT VIEW

Products

Position	Product
1	MAY 211194
2	MAY Y313559
3	TOP COVER ASSY. (WHT)
4	DOOR
5	MAY 303942
6	MAY 304594
7	SCREW & FSTNER ASSY (FT. PNL)
8	MAY 302542
9	MAY Y303361
10	MAY Y310632
11	WP62739 Whirlpool Nut
12	W10176519 Whirlpool Leveling Feet
13	WPY314137 Whirlpool Rubber Foot
14	213007 Whirlpool Screw #12
15	MAY 305302
16	MAY 204445
17	MAY Y305193
