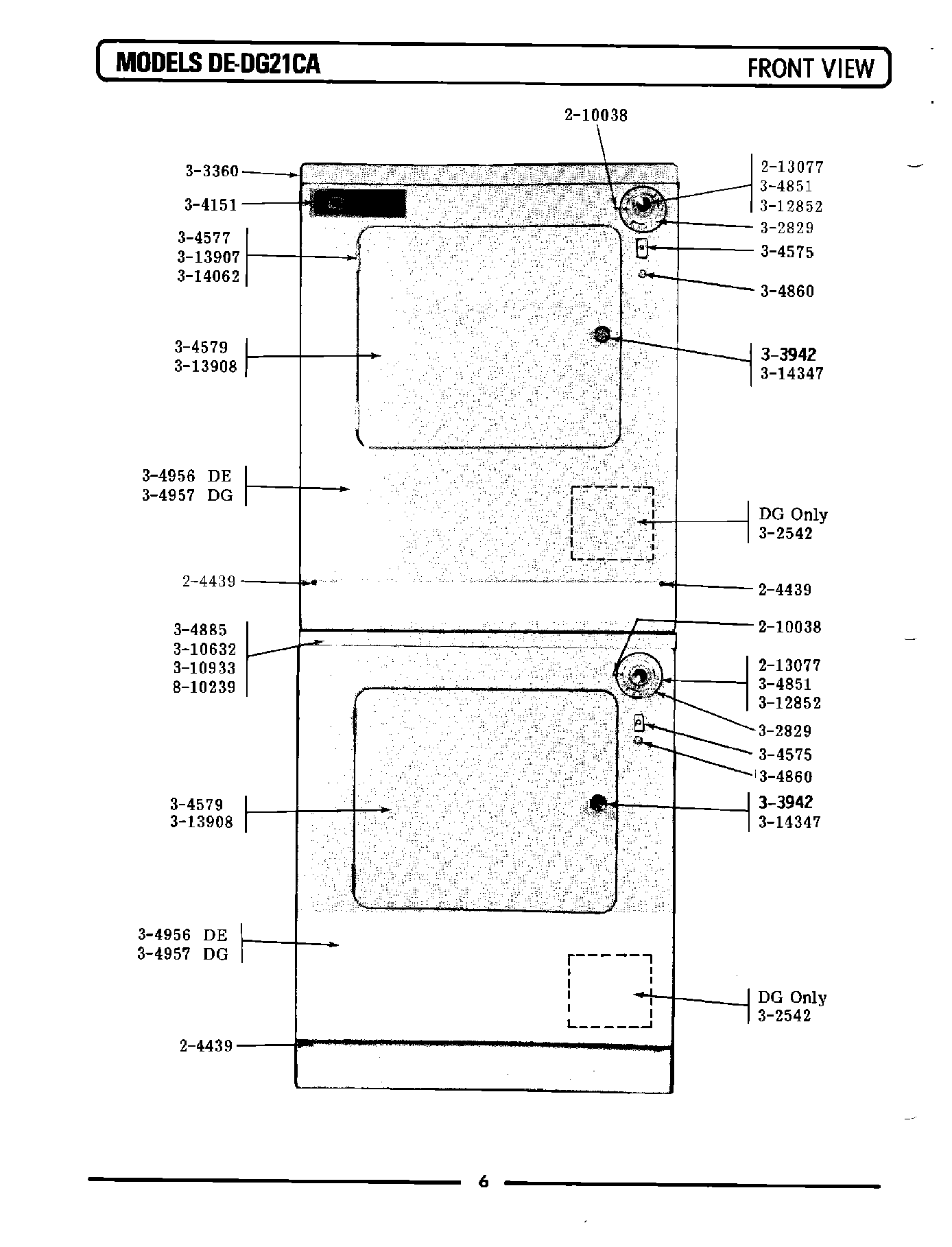

DG21CA 01 – FRONT VIEW
Products
| Position | Product |
|---|---|
| 001 | SCREW & FSTNER ASSY (FT. PNL) |
| 003 | MAY 213077 |
| 005 | MAY Y302829 |
| 008 | W10169313 Whirlpool Door Switch Kit |
| 009 | MAY Y304577 |
| 010 | MAY Y304579 |
| 012 | MAY 304860 |
| 016 | MAY Y310632 |
| 017 | MAY 310933 |
| 018 | MAY 312852 |
| 019 | MAY Y313907 |
| 020 | MAY Y313908 |
| 023 | DOWEL PIN FOR HANDLE |
