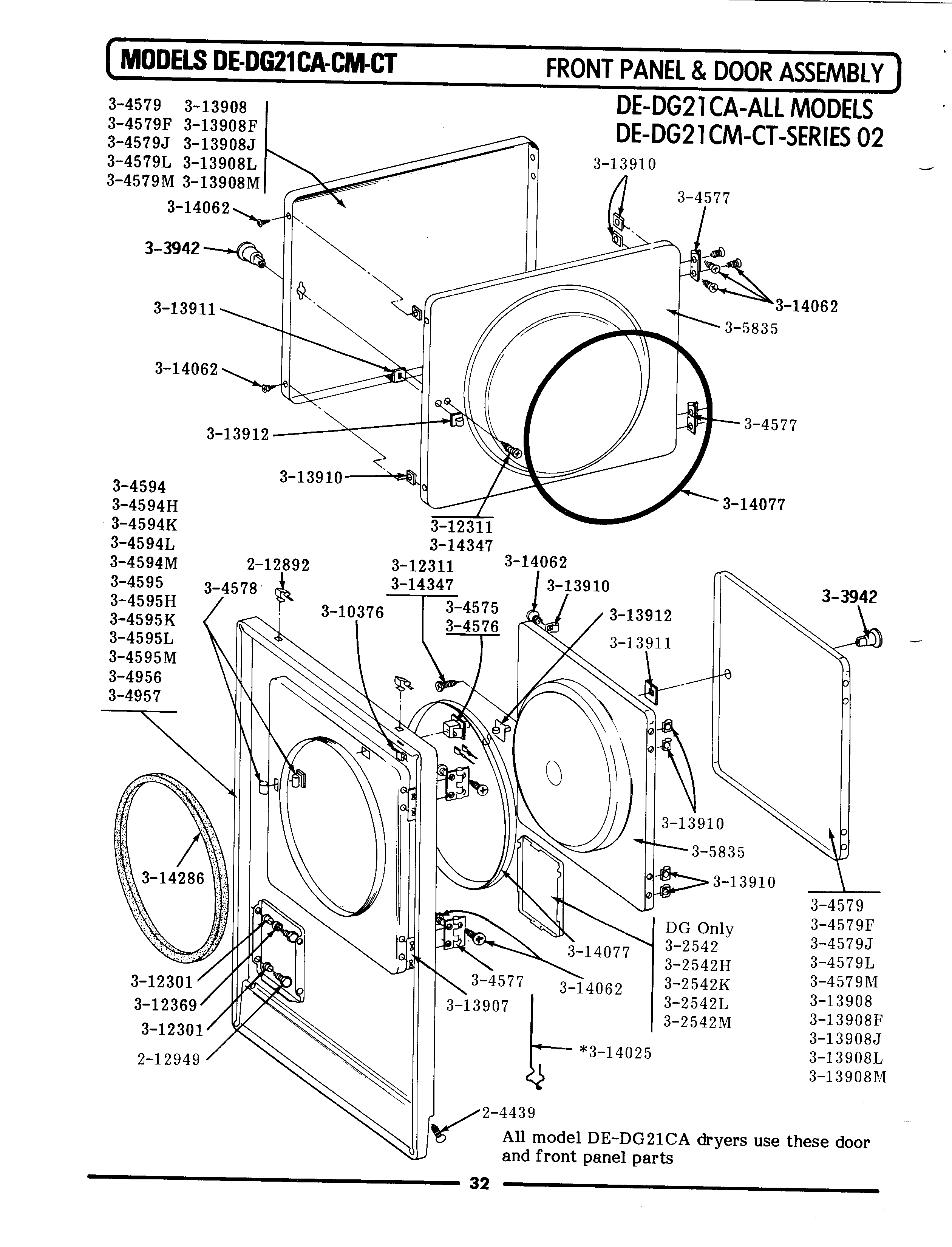

DG21CA 04 – FRONT PANEL & DOOR ASSEMBLY

DG21CA 04 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DG21CA 04 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
005W10169313 Whirlpool Door Switch Kit
006MAY Y304577
007MAY Y304578
008MAY Y304579
013MAY Y310376
015SLEEVE, ACCESS DOOR RUBBER
016LABEL, LINT SCREEN INSTR.
017MAY Y313907
018MAY Y313908
019CLIP, DOOR LINER
020MAY Y313911
021MAY Y313912
022MAY Y313927
023LATCH, ACCESS DOOR
025MAY 314077
028DOWEL PIN FOR HANDLE
