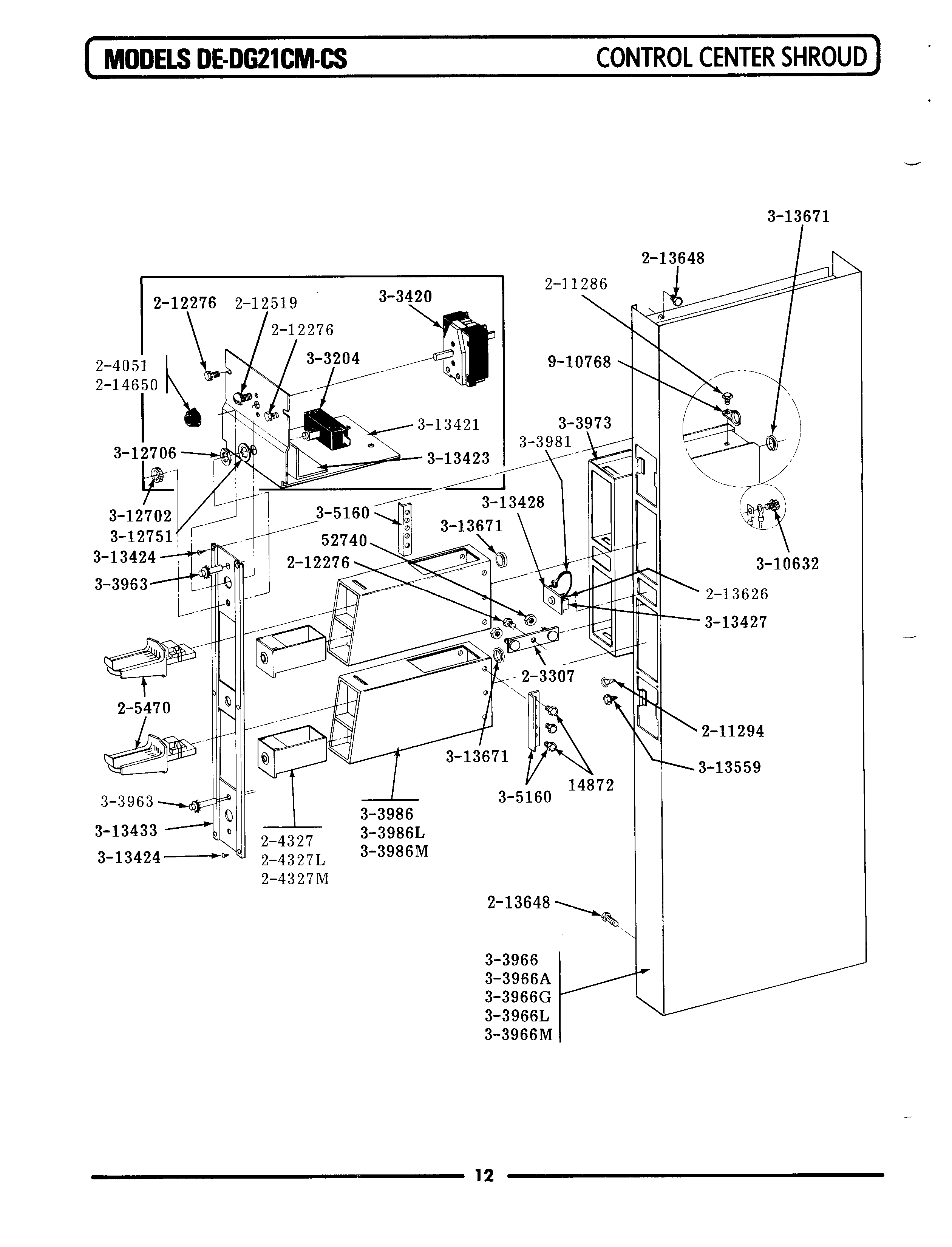

DG21CM 03 – CONTROL CENTER SHROUD

DG21CM 03 – CONTROL CENTER SHROUD

Written by

in

DG21CM 03 – CONTROL CENTER SHROUD

Products

Position	Product
001	MAY Y014872
002	WP62739 Whirlpool Nut
004	MAY 204051
008	WP90767 Whirlpool Screw
009	MAY 212276
010	MAY 212519
012	WP98165 Whirlpool Screw
013	SCREW FOR 2-4051 KNOB
014	MAY Y303204
015	MAY Y303420
016	INDICATOR LIGHT
019	MAY Y303981
022	MAY Y310632
023	MAY Y312702
024	MAY Y312706
025	WPW10139799 Whirlpool Washer
028	MAY Y313424
029	MAY Y313427
030	MAY 313428
031	DOWEL PIN FOR HANDLE
032	MAY Y313559
033	MAY Y313671
034	CABLE STRAP-HARNESS TO BASE
