DG21CM 07 – FRONT PANEL & DOOR ASSEMBLY – Aparts

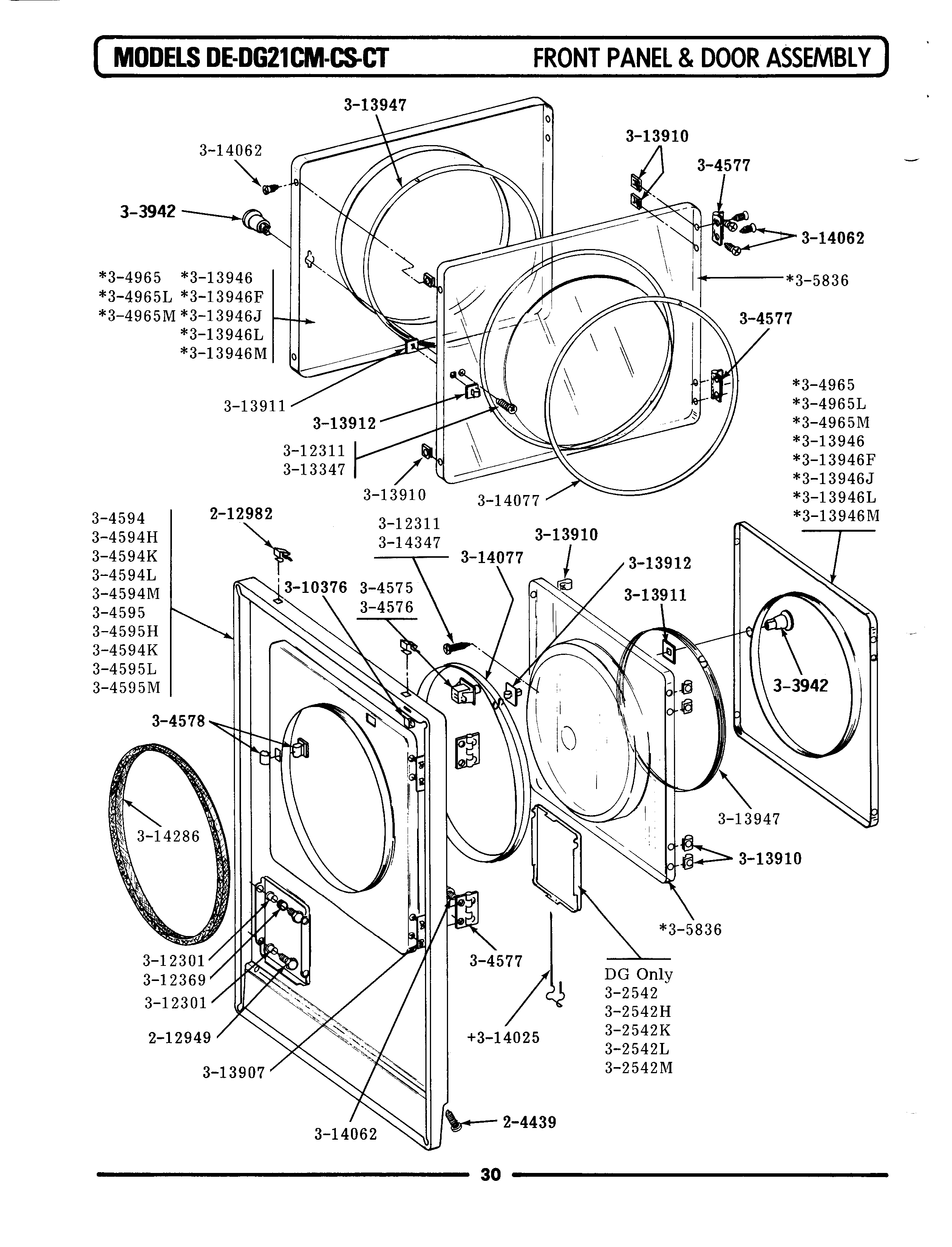

DG21CM 07 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	SCREW, BUSHINGS
003	MAY 212982
005	W10169313 Whirlpool Door Switch Kit
006	MAY Y304577
007	MAY Y304578
009	MAY 304965
012	MAY Y310376
015	SLEEVE, ACCESS DOOR RUBBER
016	LABEL, LINT SCREEN INSTR.
017	MAY Y313907
018	CLIP, DOOR LINER
019	MAY Y313911
020	MAY Y313912
021	MAY Y313927
022	MAY Y313946
023	MAY Y313947
024	LATCH, ACCESS DOOR
026	MAY 314077
029	DOWEL PIN FOR HANDLE
