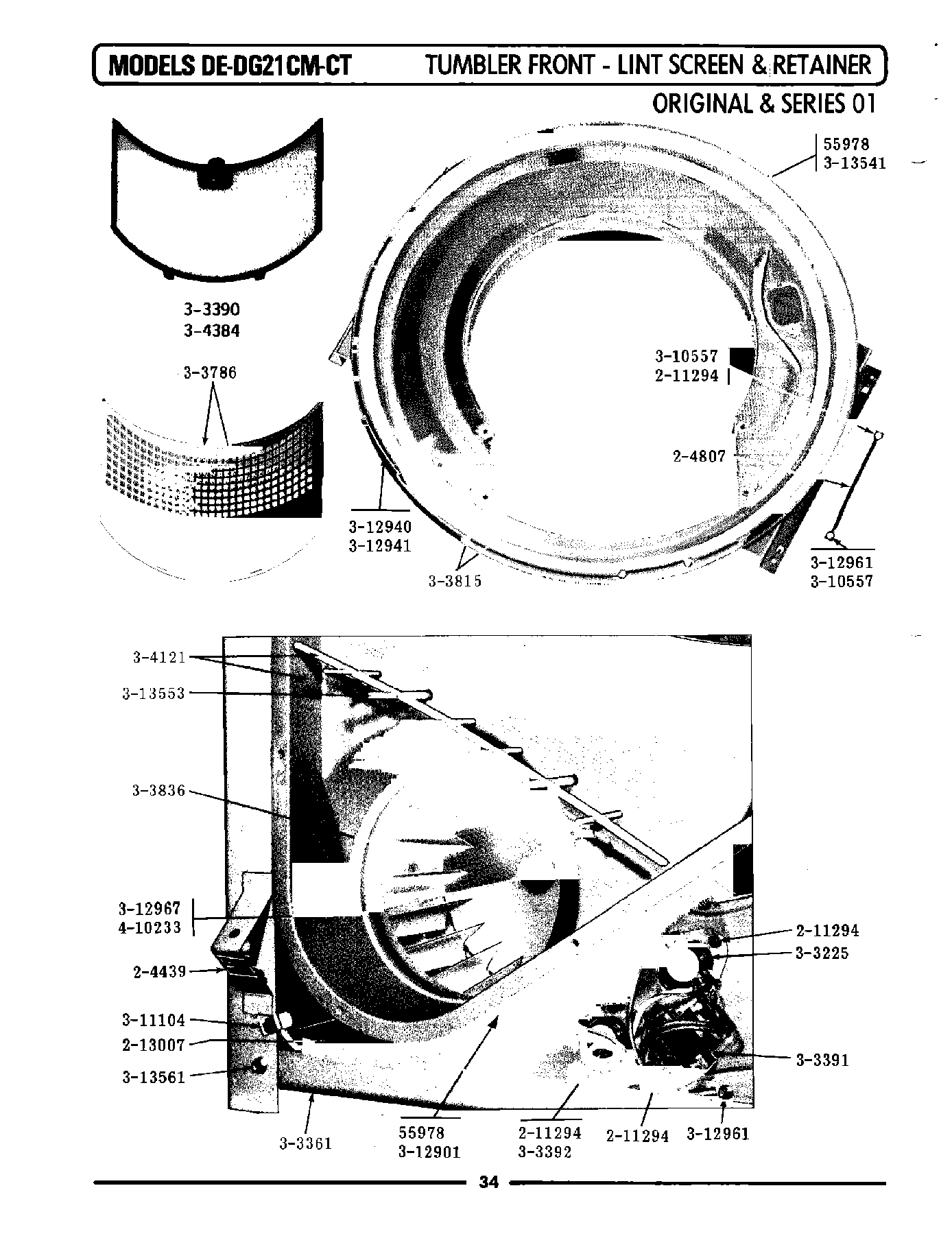

DG21CM 09 – TUMBLER FRONT, LINT SCREEN & RETAINER

Products

Position	Product
001	MAY Y055978
002	SCREW & FSTNER ASSY (FT. PNL)
003	MAY 204807
004	WP90767 Whirlpool Screw
005	213007 Whirlpool Screw #12
006	PART NOT USED
007	MAY Y303361
008	MAY Y303390
009	WP33303391 Whirlpool Thermostat
010	WP694674 Whirlpool Cycling Thermostat
011	MAY Y303786
012	MAY Y303815
013	Y303836 Whirlpool Dryer Blower Wheel
015	MAY Y304384
016	MAY Y304810
017	MAY 310557
019	WPY312901 Whirlpool Blow Seal
020	MAY 312940
021	MAY 312941
022	WPW10116751 Whirlpool Screw
023	WP312967 Whirlpool Clamp
024	MAY Y313541
025	DOWEL PIN FOR HANDLE
026	MAY Y313561
027	MAY Y313794
028	MAY Y313795
029	MAY Y313796
030	WP9703438 Whirlpool Snap Retaining Ring
