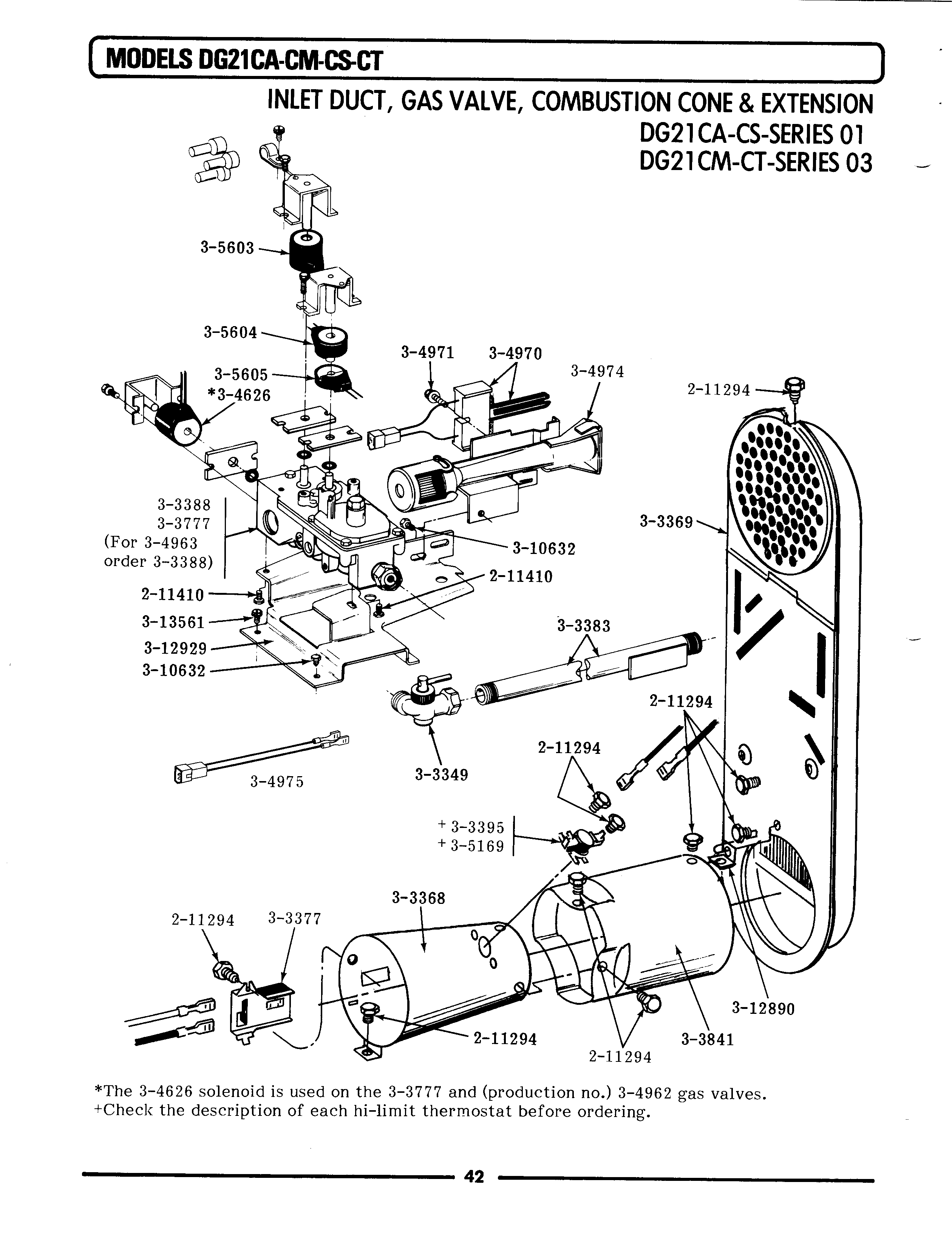

DG21CM 12 – INLET DUCT, GAS VALVE & COMBUSTION CONE

DG21CM 12 – INLET DUCT, GAS VALVE & COMBUSTION CONE

Written by

in

DG21CM 12 – INLET DUCT, GAS VALVE & COMBUSTION CONE

Products

PositionProduct
001WP90767 Whirlpool Screw
002DOWEL PIN FOR HANDLE
003MAY Y303349
004MAY Y303368
005MAY Y303369
006WP338906 Whirlpool Dryer Gas Sensor
007MAY Y303383
008WP303395 Whirlpool Thermostat
009MAY Y303777
010MAY Y303841
011MAY Y304626
0124391996 Whirlpool Dryer Flat Igniter
013MAY 304971
014MAY 304974
015MAY 304975
016WP305169 Whirlpool Thermostat
017MAY 305603
018MAY 305604
019WP305605 Whirlpool Coil Assembly
020MAY Y310632
021MAY Y312890
022MAY 312929
023MAY Y313561
