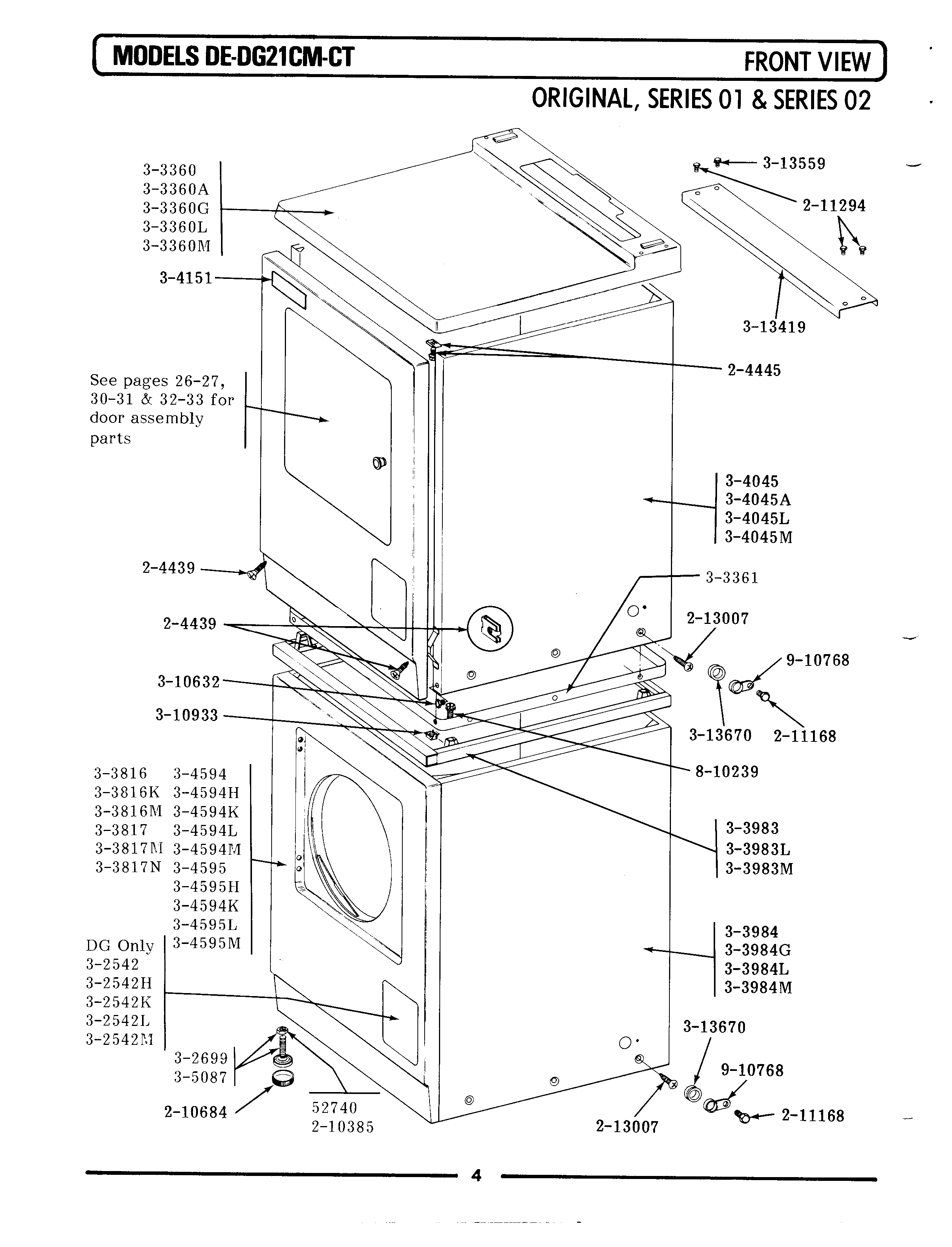

DG21CT 01 – FRONT VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	SCREW & FSTNER ASSY (FT. PNL)
003	MAY 204445
004	WP210385 Whirlpool Lock Nut
005	WP210684 Whirlpool Dishwasher Leveling Leg Pad
006	WPW10139210 Whirlpool Screw
007	WP90767 Whirlpool Screw
008	213007 Whirlpool Screw #12
010	LEG, ADJUSTABLE (W/NUT)—S
012	MAY Y303361
016	MAY 304045
019	MAY Y305087
020	MAY Y310632
021	MAY 310933
023	MAY Y313559
024	MAY 33001303
025	DOWEL PIN FOR HANDLE
026	CABLE STRAP-HARNESS TO BASE
