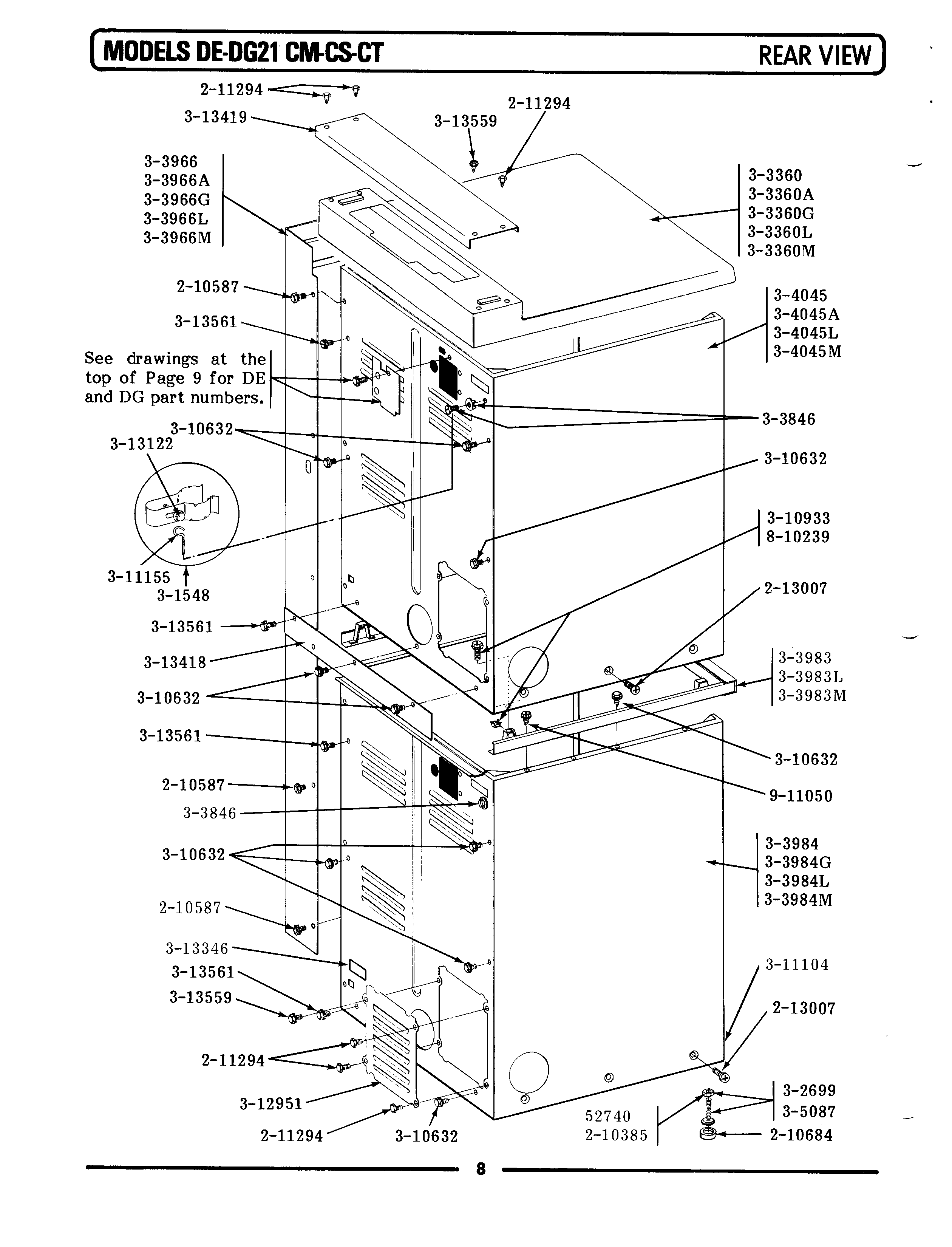

DG21CT 02 – REAR VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	WP210385 Whirlpool Lock Nut
003	WP210684 Whirlpool Dishwasher Leveling Leg Pad
005	WP90767 Whirlpool Screw
006	GROMMET
007	213007 Whirlpool Screw #12
008	MAY 301548
009	MAY 302521
010	LEG, ADJUSTABLE (W/NUT)—S
016	MAY 304045
017	MAY Y305087
018	MAY Y310632
019	MAY 310933
021	WP311155 Whirlpool Wire Assembly
022	WPY311270 Whirlpool Washer TE
023	PART NOT USED
024	WP112432 Whirlpool Nut Assembly
025	PART NOT USED
026	SCREW, No.10-24 X 3/4 INCH—–O
027	MAY Y312905
028	MAY Y312951
029	MAY 313122
032	MAY Y313559
033	MAY Y313561
034	DOWEL PIN FOR HANDLE
035	MAY 911050
