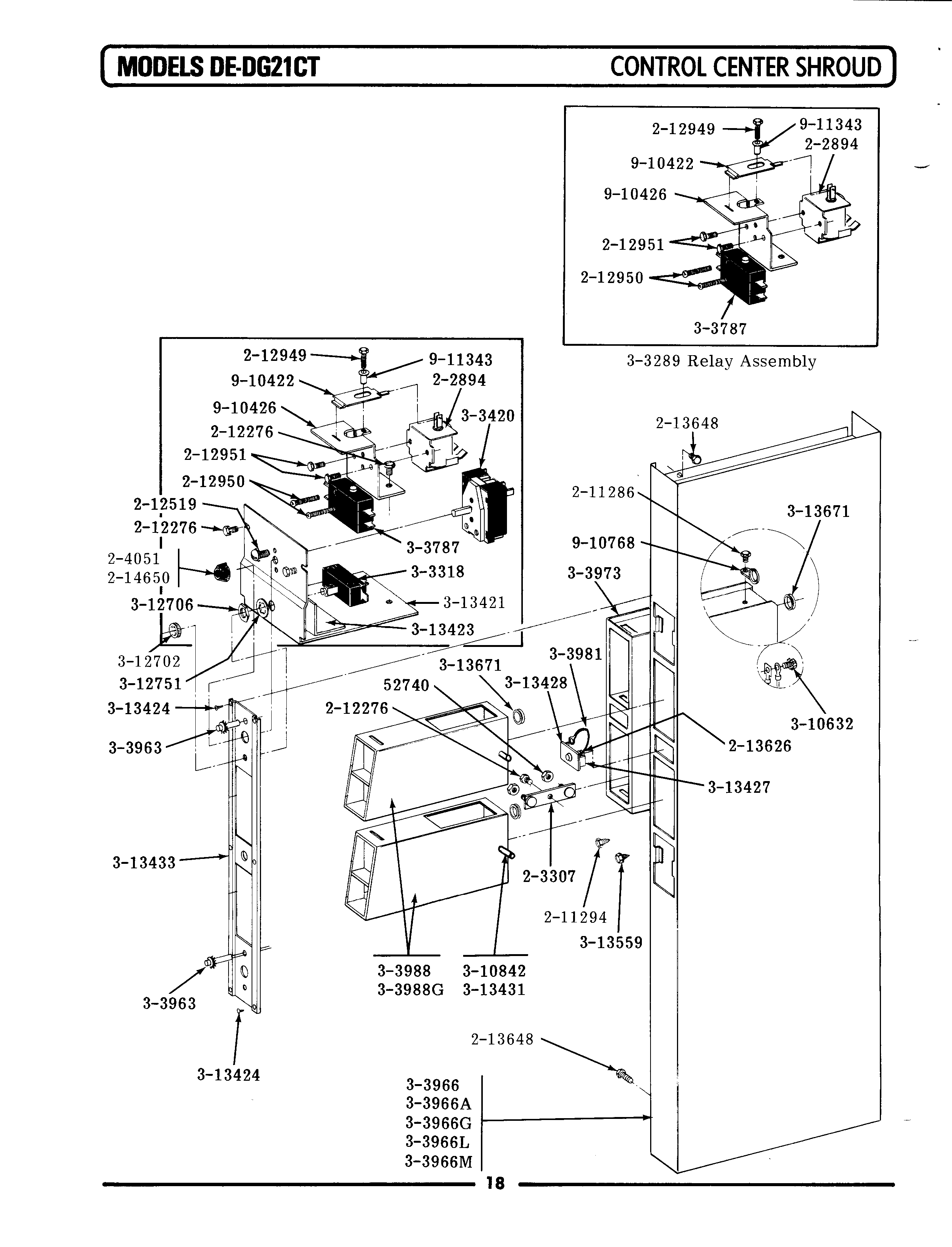

DG21CT 03 – CONTROL CENTER SHROUD
Written by
in
DG21CT 03 – CONTROL CENTER SHROUD
Products
| Position | Product |
|---|---|
| 001 | WP62739 Whirlpool Nut |
| 002 | MAY 202894 |
| 004 | MAY 204051 |
| 006 | WP90767 Whirlpool Screw |
| 007 | MAY 212276 |
| 008 | MAY 212519 |
| 009 | SCREW, BUSHINGS |
| 010 | MAY 212950 |
| 011 | MAY 212951 |
| 013 | WP98165 Whirlpool Screw |
| 014 | SCREW FOR 2-4051 KNOB |
| 015 | MAY Y303289 |
| 016 | MAY Y303318 |
| 017 | MAY Y303420 |
| 018 | MAY Y303787 |
| 019 | INDICATOR LIGHT |
| 022 | MAY Y303981 |
| 024 | MAY Y310632 |
| 025 | MAY Y310842 |
| 026 | MAY Y312702 |
| 027 | MAY Y312706 |
| 028 | WPW10139799 Whirlpool Washer |
| 031 | MAY Y313424 |
| 032 | MAY Y313427 |
| 033 | MAY 313428 |
| 036 | MAY Y313559 |
| 037 | MAY Y313671 |
| 040 | CABLE STRAP-HARNESS TO BASE |
| 041 | DOWEL PIN FOR HANDLE |
