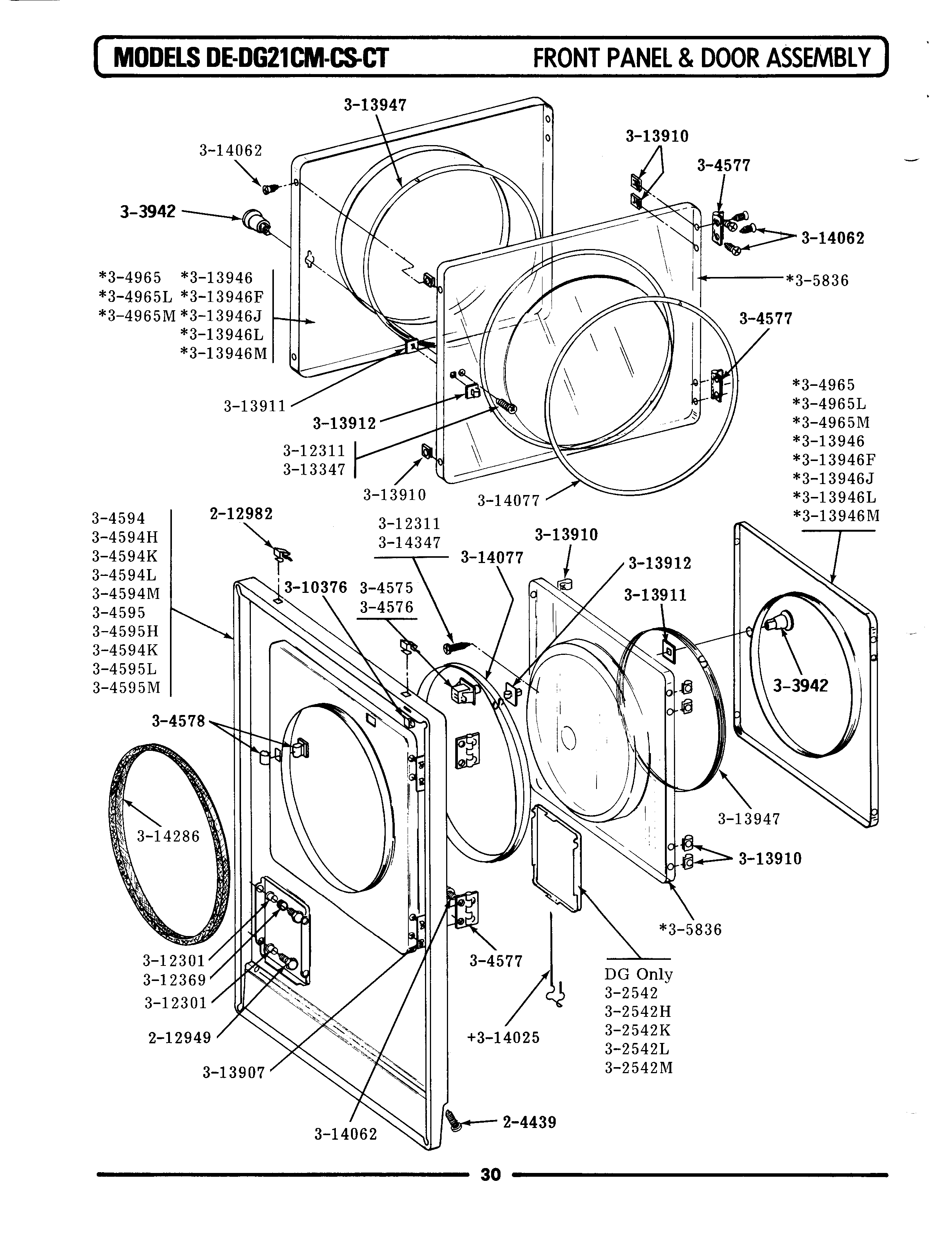

DG21CT 08 – FRONT PANEL & DOOR ASSEMBLY

DG21CT 08 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DG21CT 08 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
005W10169313 Whirlpool Door Switch Kit
006MAY Y304577
007MAY Y304578
009MAY 304965
012MAY Y310376
015SLEEVE, ACCESS DOOR RUBBER
016LABEL, LINT SCREEN INSTR.
017MAY Y313907
018CLIP, DOOR LINER
019MAY Y313911
020MAY Y313912
021MAY Y313927
022MAY Y313946
023MAY Y313947
024LATCH, ACCESS DOOR
026MAY 314077
029DOWEL PIN FOR HANDLE
