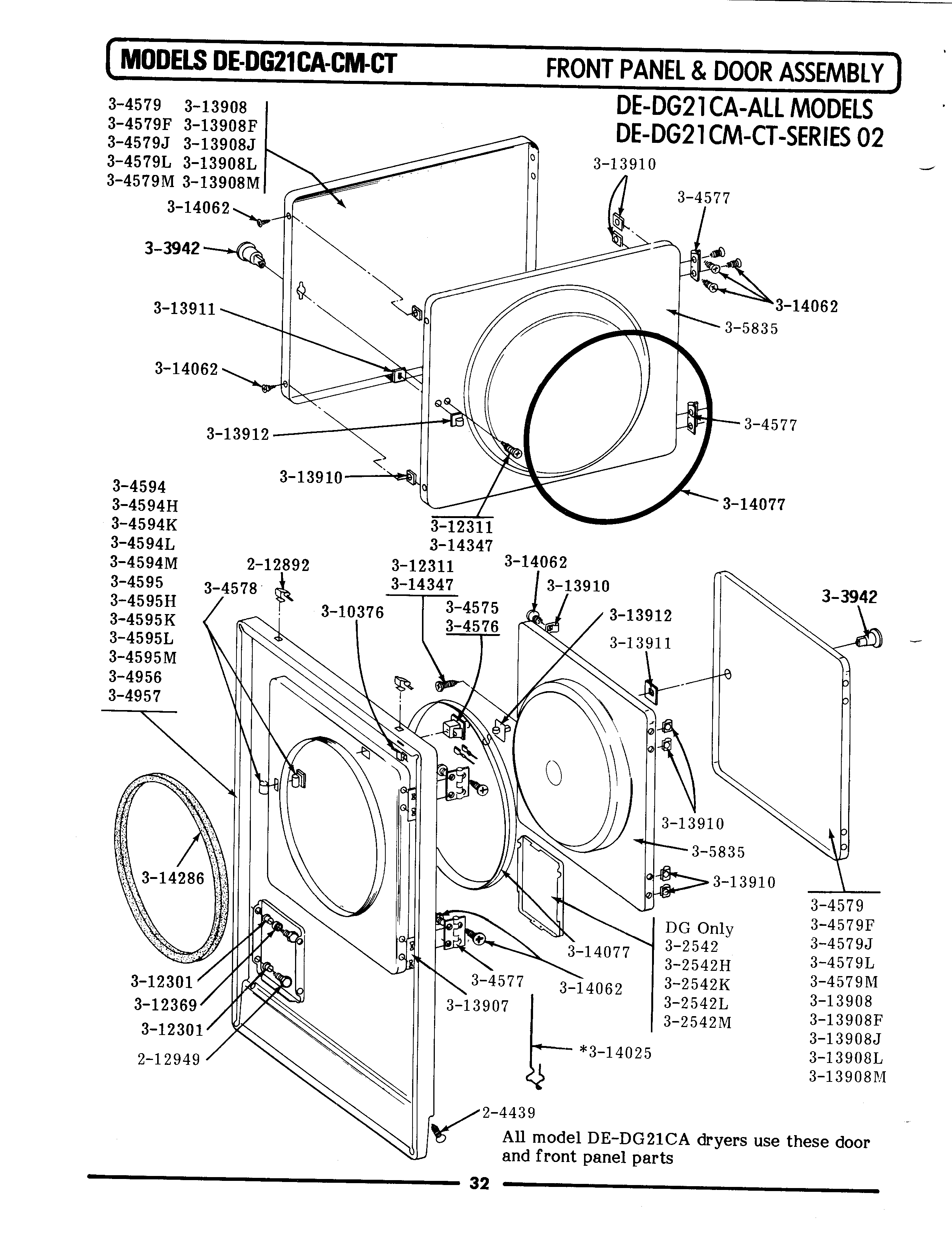

DG21CT 09 – FRONT PANEL & DOOR ASSY (SERIES 02)

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	SCREW, BUSHINGS
003	MAY 212982
005	W10169313 Whirlpool Door Switch Kit
006	MAY Y304577
007	MAY Y304578
008	MAY Y304579
013	MAY Y310376
016	SLEEVE, ACCESS DOOR RUBBER
017	LABEL, LINT SCREEN INSTR.
018	MAY Y313907
019	MAY Y313908
020	CLIP, DOOR LINER
021	MAY Y313911
022	MAY Y313912
023	MAY Y313927
024	LATCH, ACCESS DOOR
026	MAY 314077
029	DOWEL PIN FOR HANDLE
