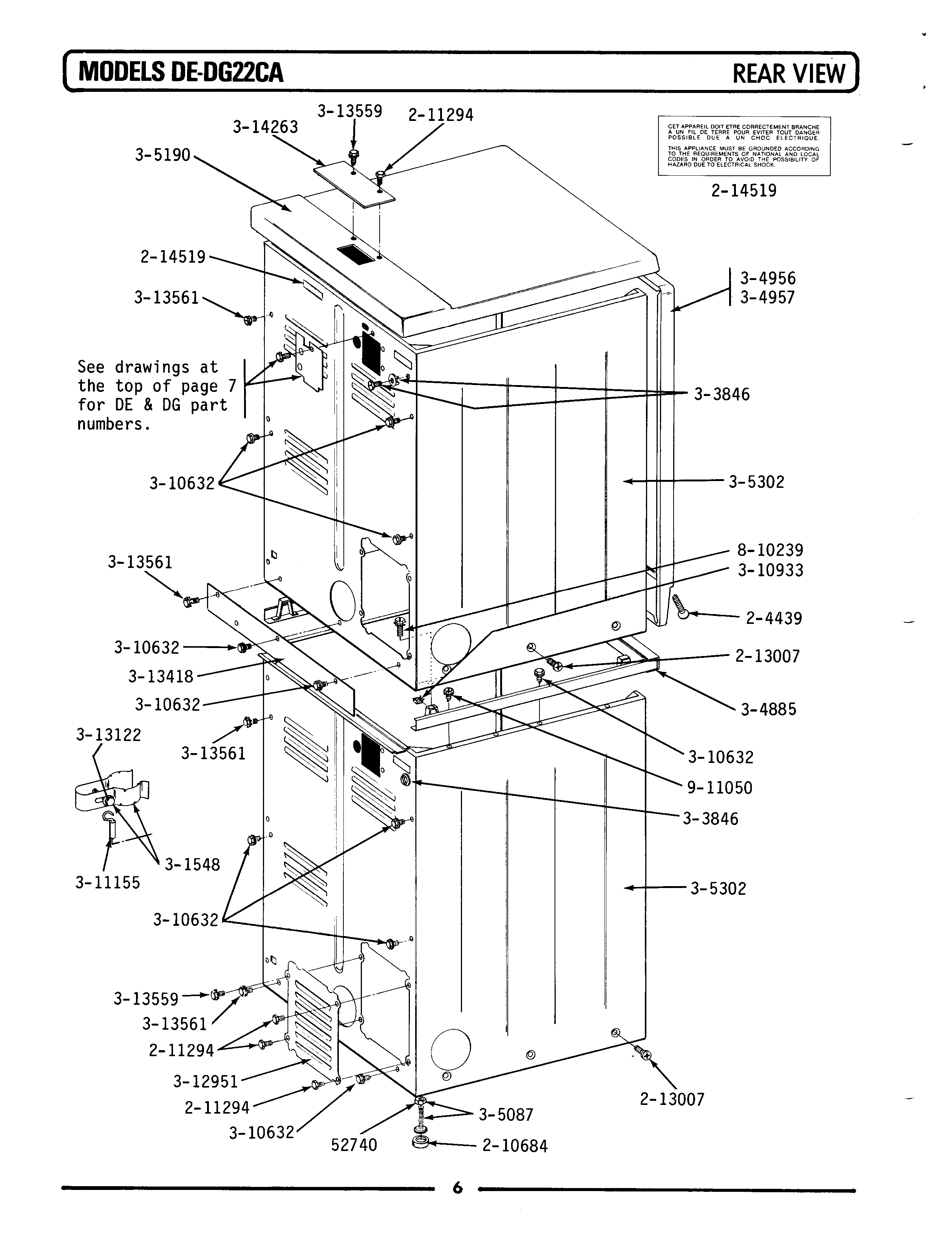

DG22CA 02 – REAR VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	SCREW & FSTNER ASSY (FT. PNL)
003	WP210684 Whirlpool Dishwasher Leveling Leg Pad
004	WP90767 Whirlpool Screw
005	GROMMET
006	213007 Whirlpool Screw #12
007	INSTRUCTION LABEL
008	MAY 301548
009	MAY 302521
013	MAY Y305087
014	MAY Y305190
016	MAY Y310632
017	MAY 310933
018	WP311155 Whirlpool Wire Assembly
019	WPY311270 Whirlpool Washer TE
020	PART NOT USED
021	WP112432 Whirlpool Nut Assembly
022	PART NOT USED
023	SCREW, No.10-24 X 3/4 INCH—–O
024	PART NOT USED
025	MAY Y312905
026	MAY Y312951
027	MAY 313122
029	MAY Y313559
030	MAY Y313561
032	DOWEL PIN FOR HANDLE
033	MAY 911050
