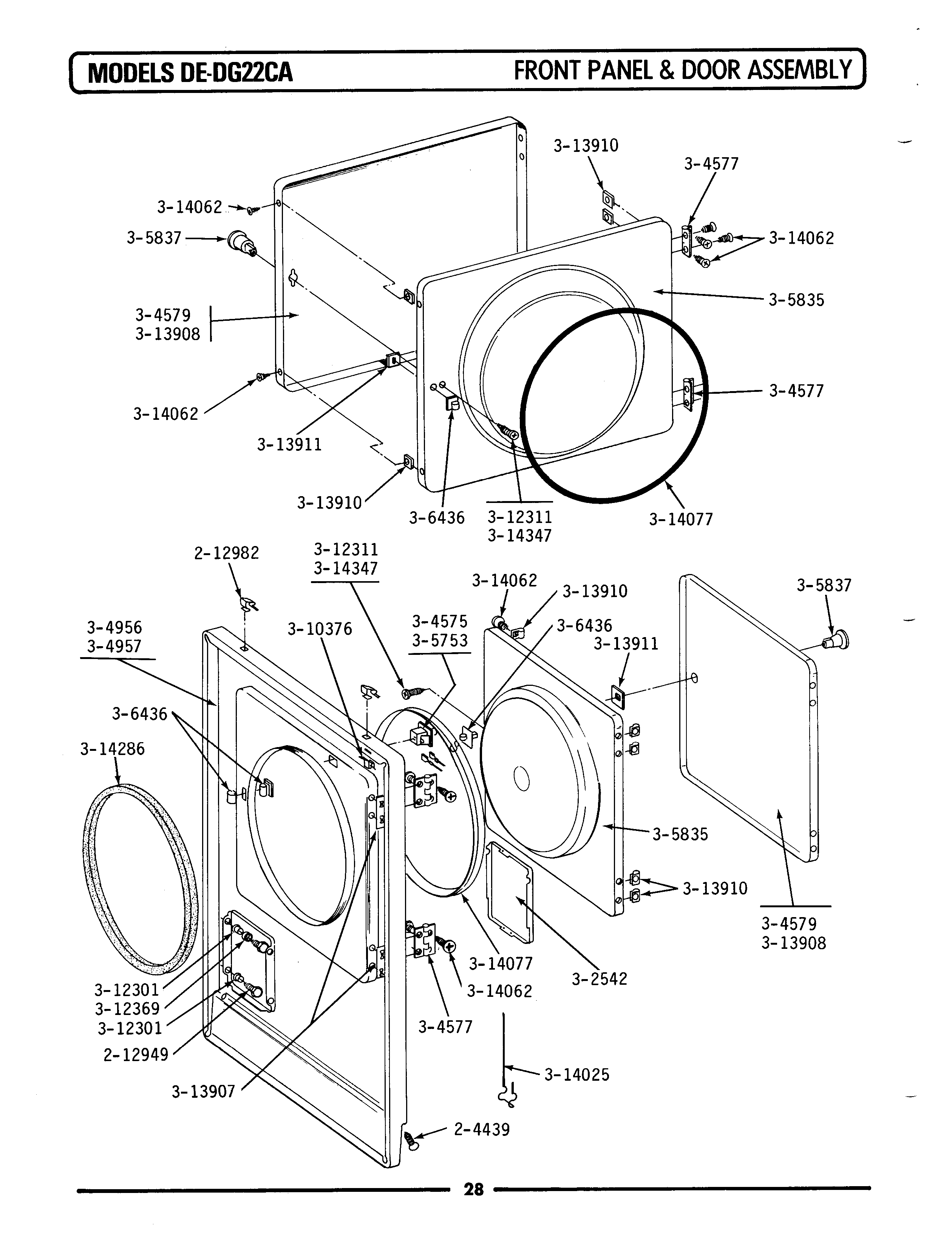

DG22CA 04 – FRONT PANEL & DOOR ASSEMBLY

DG22CA 04 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DG22CA 04 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
005W10169313 Whirlpool Door Switch Kit
006MAY Y304577
007MAY Y304579
012306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
013MAY Y310376
016SLEEVE, ACCESS DOOR RUBBER
017LABEL, LINT SCREEN INSTR.
018MAY Y313907
019MAY Y313908
020CLIP, DOOR LINER
021MAY Y313911
022MAY Y313927
023LATCH, ACCESS DOOR
025MAY 314077
028DOWEL PIN FOR HANDLE
