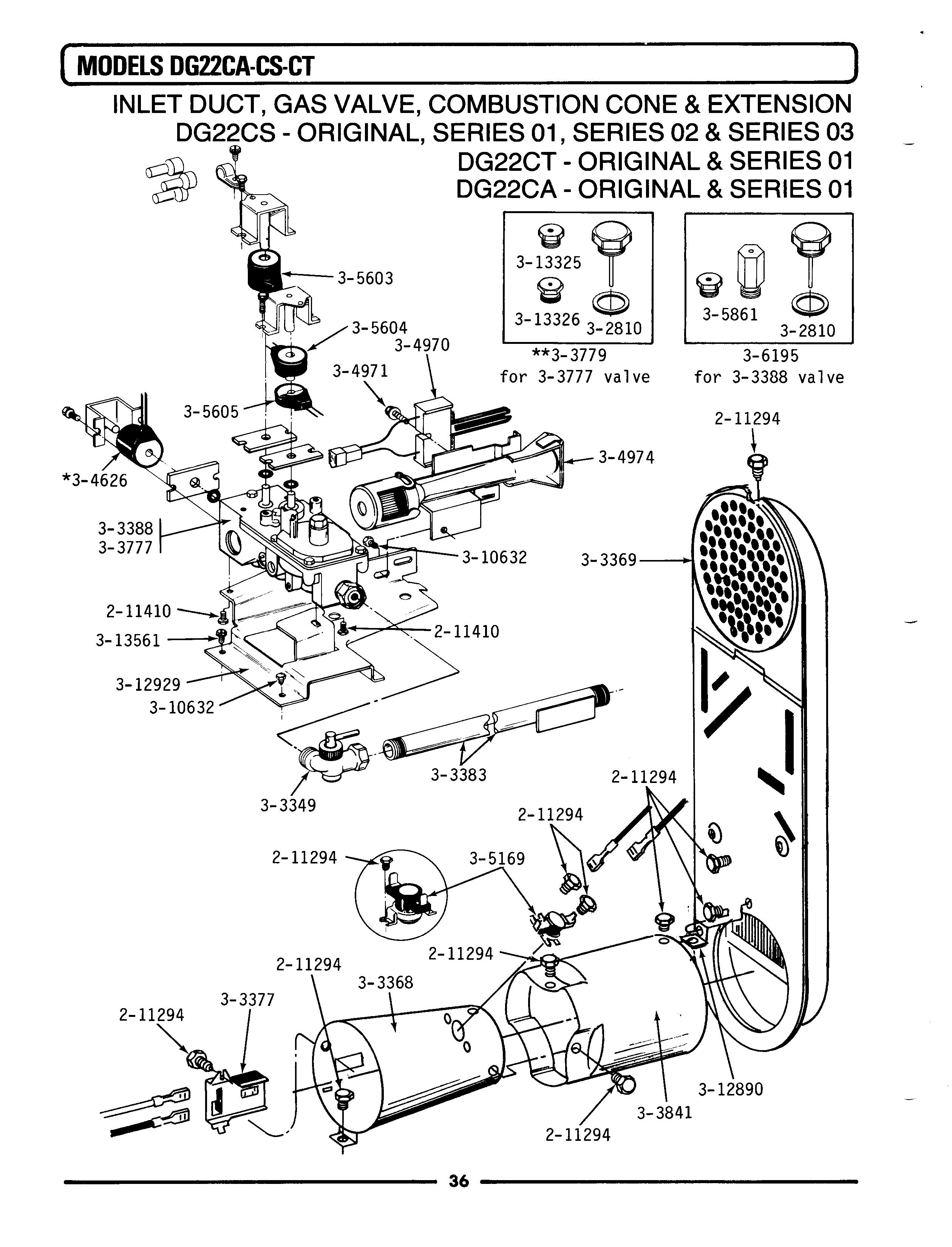

DG22CA 07 – INLET DUCT, GAS VALVE & COMBUSTION CONE

DG22CA 07 – INLET DUCT, GAS VALVE & COMBUSTION CONE

Written by

in

DG22CA 07 – INLET DUCT, GAS VALVE & COMBUSTION CONE

Products

PositionProduct
001WP90767 Whirlpool Screw
005MAY Y303349
006MAY Y303368
007MAY Y303369
008WP338906 Whirlpool Dryer Gas Sensor
009MAY Y303383
010MAY W10116794
011CONVERSION KIT (NAT.TO LP)
012MAY Y303841
013MAY Y304626
014MAY Y304672
0154391996 Whirlpool Dryer Flat Igniter
016MAY 304971
017MAY 304974
018WP305169 Whirlpool Thermostat
019MAY 305603
020MAY 305604
021WP305605 Whirlpool Coil Assembly
022MAY 305860
026CONVERSION KIT (NAT.TO LP)
027MAY Y310632
028MAY Y312890
029MAY 312929
032DOWEL PIN FOR HANDLE
033MAY Y313561
