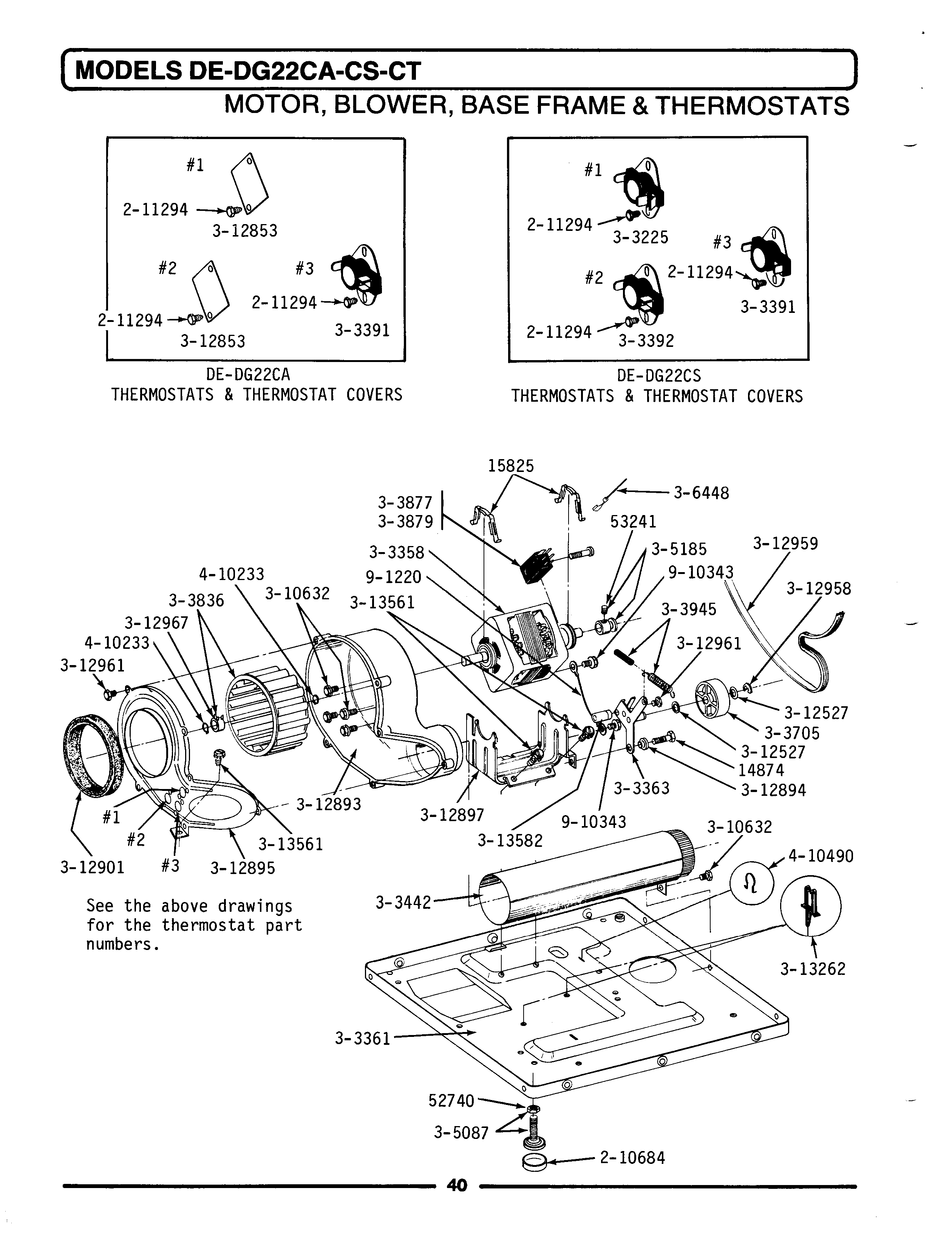

DG22CA 09 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

DG22CA 09 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Written by

in

DG22CA 09 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

PositionProduct
001WPY014874 Whirlpool Screw
002WPY015825 Whirlpool Motor Clip
003WP62739 Whirlpool Nut
004MAY Y053241
005WP210684 Whirlpool Dishwasher Leveling Leg Pad
006WP90767 Whirlpool Screw
007W10410999 Whirlpool Dryer Drive Motor
008MAY Y303361
009WP6-3033630 Whirlpool Dryer Idler Arm Assembly
010WP33303391 Whirlpool Thermostat
011MAY Y303442
012WP6-3037050 Whirlpool Idler Pulley
013Y303836 Whirlpool Dryer Blower Wheel
014MAY Y303877
015MAY Y303879
016MAY Y303945
017MAY Y305087
018MAY Y305185
020MAY Y310632
021MAY Y312527
022MAY Y312853
023MAY Y312893
024SLEEVE, IDLER ARM —-S
025MAY Y312895
026DOWEL PIN FOR HANDLE
027WPY312901 Whirlpool Blow Seal
028WP354987 Whirlpool C-Clip
029WPY312959 Whirlpool Dryer Drum Belt
030WPW10116751 Whirlpool Screw
031WP312967 Whirlpool Clamp
033MAY Y313262
034MAY Y313561
035WPW10116756 Whirlpool Spacer
036WP9703438 Whirlpool Snap Retaining Ring
037MAY 410490
038MAY 901220
039MAY 910343
