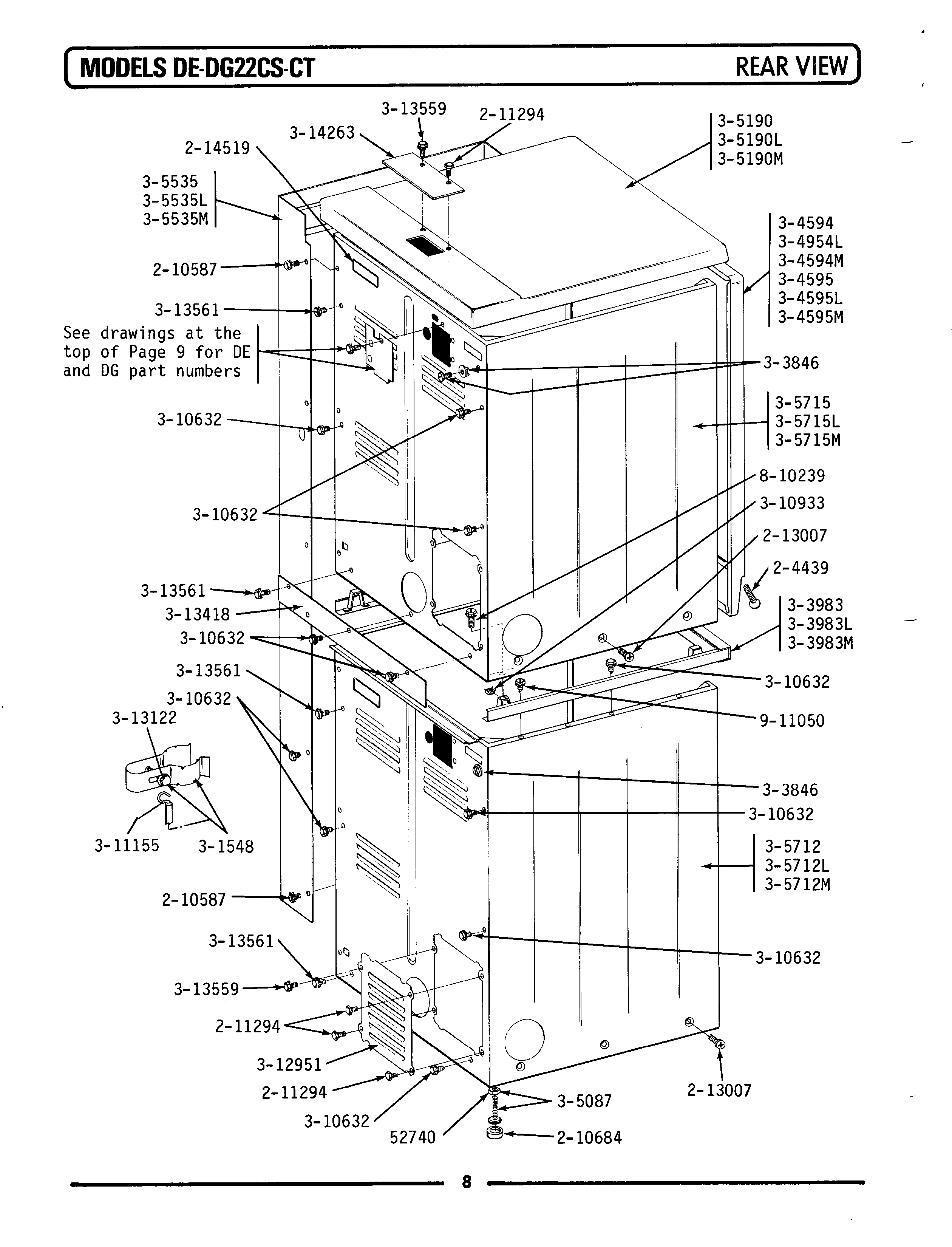

DG22CS 02 – REAR VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	SCREW & FSTNER ASSY (FT. PNL)
004	WP210684 Whirlpool Dishwasher Leveling Leg Pad
005	WP90767 Whirlpool Screw
006	GROMMET
007	213007 Whirlpool Screw #12
008	INSTRUCTION LABEL
009	MAY 301548
010	MAY 302521
014	MAY Y305087
015	MAY Y305190
019	MAY Y310632
020	MAY 310933
021	WP311155 Whirlpool Wire Assembly
022	WPY311270 Whirlpool Washer TE
023	PART NOT USED
024	WP112432 Whirlpool Nut Assembly
025	PART NOT USED
026	SCREW, No.10-24 X 3/4 INCH—–O
027	MAY Y312905
028	MAY Y312951
029	MAY 313122
031	MAY Y313559
032	MAY Y313561
034	DOWEL PIN FOR HANDLE
035	MAY 911050
