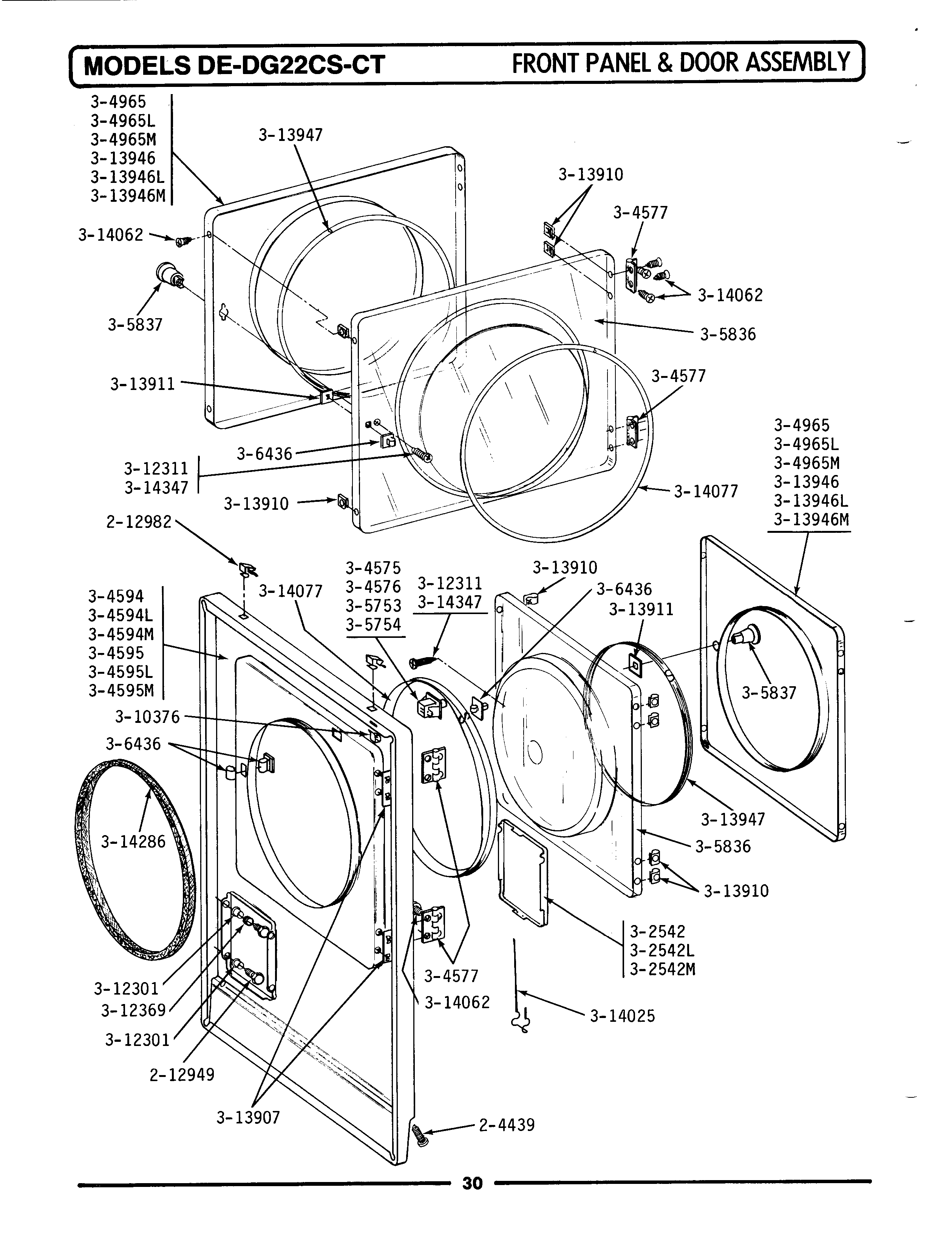

DG22CT 06 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	SCREW, BUSHINGS
003	MAY 212982
005	W10169313 Whirlpool Door Switch Kit
006	MAY Y304577
008	MAY 304965
012	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
013	MAY Y310376
016	SLEEVE, ACCESS DOOR RUBBER
017	LABEL, LINT SCREEN INSTR.
018	MAY Y313907
019	CLIP, DOOR LINER
020	MAY Y313911
021	MAY Y313927
022	MAY Y313946
022	DOWEL PIN FOR HANDLE
023	MAY Y313947
024	LATCH, ACCESS DOOR
026	MAY 314077
