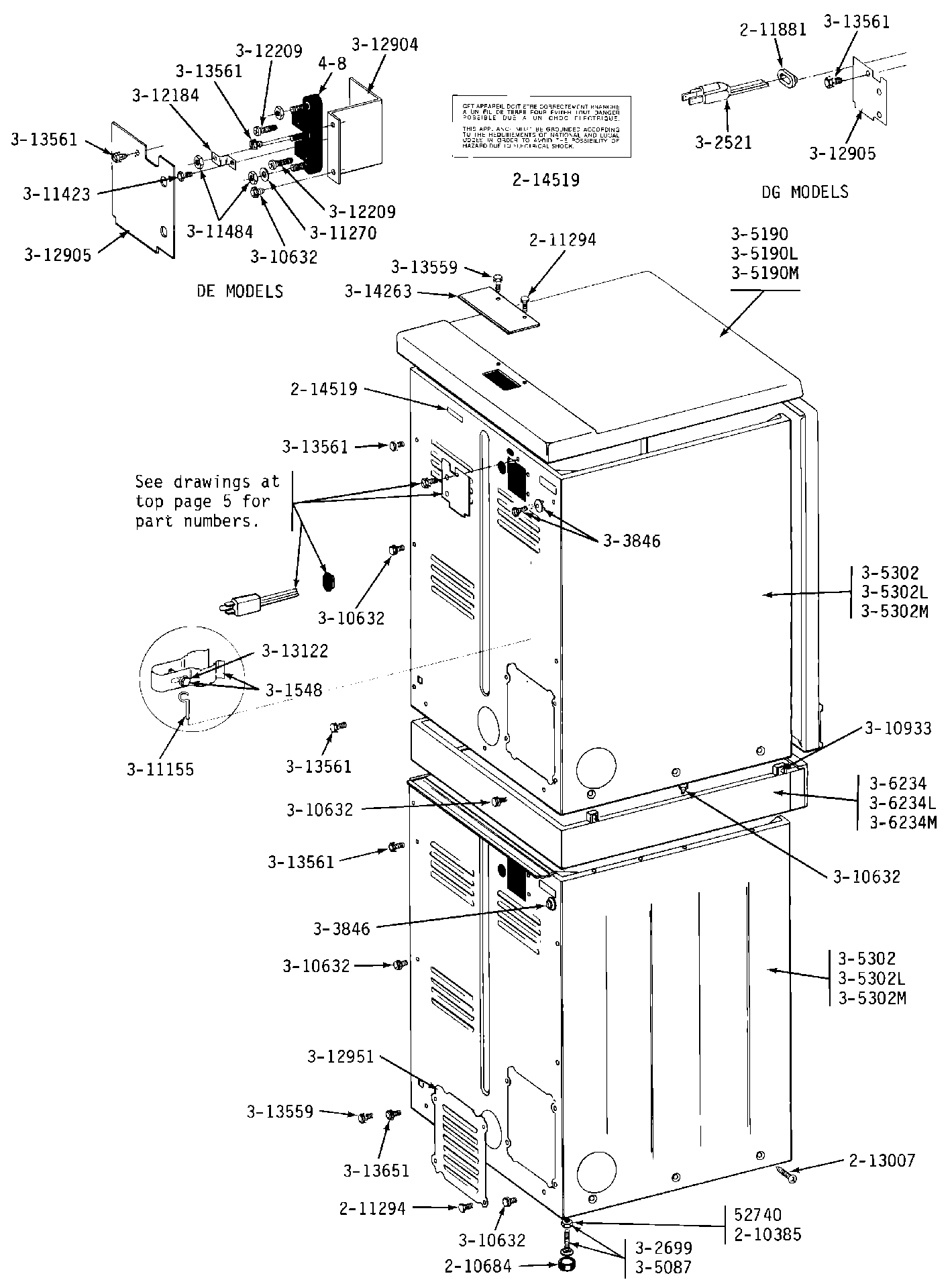

DG23CD 02 – REAR VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	WP210385 Whirlpool Lock Nut
003	WP210684 Whirlpool Dishwasher Leveling Leg Pad
004	WP90767 Whirlpool Screw
005	GROMMET
006	213007 Whirlpool Screw #12
007	INSTRUCTION LABEL
008	MAY 301548
009	MAY 302521
010	LEG, ADJUSTABLE (W/NUT)—S
012	MAY Y305087
013	MAY Y305190
023	MAY Y310632
024	MAY 310933
025	WP311155 Whirlpool Wire Assembly
026	PART NOT USED
027	WP112432 Whirlpool Nut Assembly
028	PART NOT USED
029	SCREW, No.10-24 X 3/4 INCH—–O
031	MAY Y312905
032	MAY Y312951
033	MAY 313122
034	MAY Y313559
035	MAY Y313561
036	DOWEL PIN FOR HANDLE
037	MAY 314663
