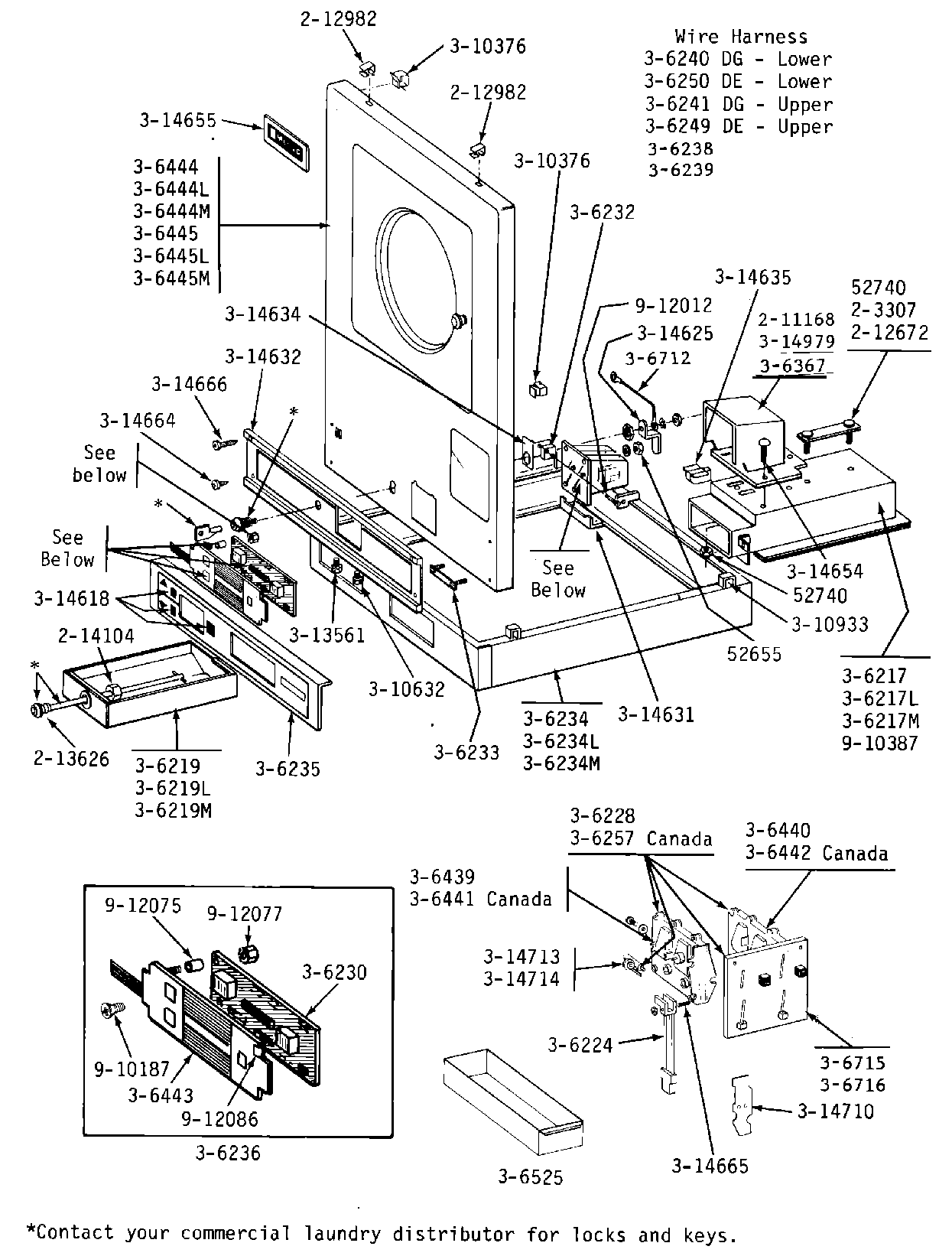

DG23CD 03 – CONTROLS & UPPER DRYER FRONT PANEL
Products
| Position | Product |
|---|---|
| 001 | MAY Y052655 |
| 002 | WP62739 Whirlpool Nut |
| 004 | WPW10139210 Whirlpool Screw |
| 007 | MAY 212982 |
| 009 | MAY 214104 |
| 013 | MAY 306219 |
| 016 | MAY Y306224 |
| 017 | MAY 306228 |
| 019 | MAY Y306232 |
| 020 | MAY 306233 |
| 034 | MAY 306439 |
| 038 | MAY 306443 |
| 046 | MAY Y306712 |
| 048 | MAY Y306716 |
| 049 | MAY Y310376 |
| 050 | MAY Y310632 |
| 051 | MAY 310933 |
| 052 | MAY Y313561 |
| 053 | MAY 314618 |
| 054 | 206637 Whirlpool Lock Kit |
| 055 | MAY 314631 |
| 057 | MAY 314634 |
| 058 | MAY 314635 |
| 059 | MAY 314654 |
| 061 | MAY 314664 |
| 062 | WP3395530 Whirlpool Screw |
| 063 | MAY 314666 |
| 064 | MAY 314710 |
| 065 | MAY 314713 |
| 066 | DOWEL PIN FOR HANDLE |
| 067 | MAY 314979 |
| 068 | 910187 Whirlpool Screw |
| 069 | MAY 912012 |
| 070 | MAY 912075 |
| 071 | M0282005 Whirlpool Nut |
| 072 | MAY 912086 |
