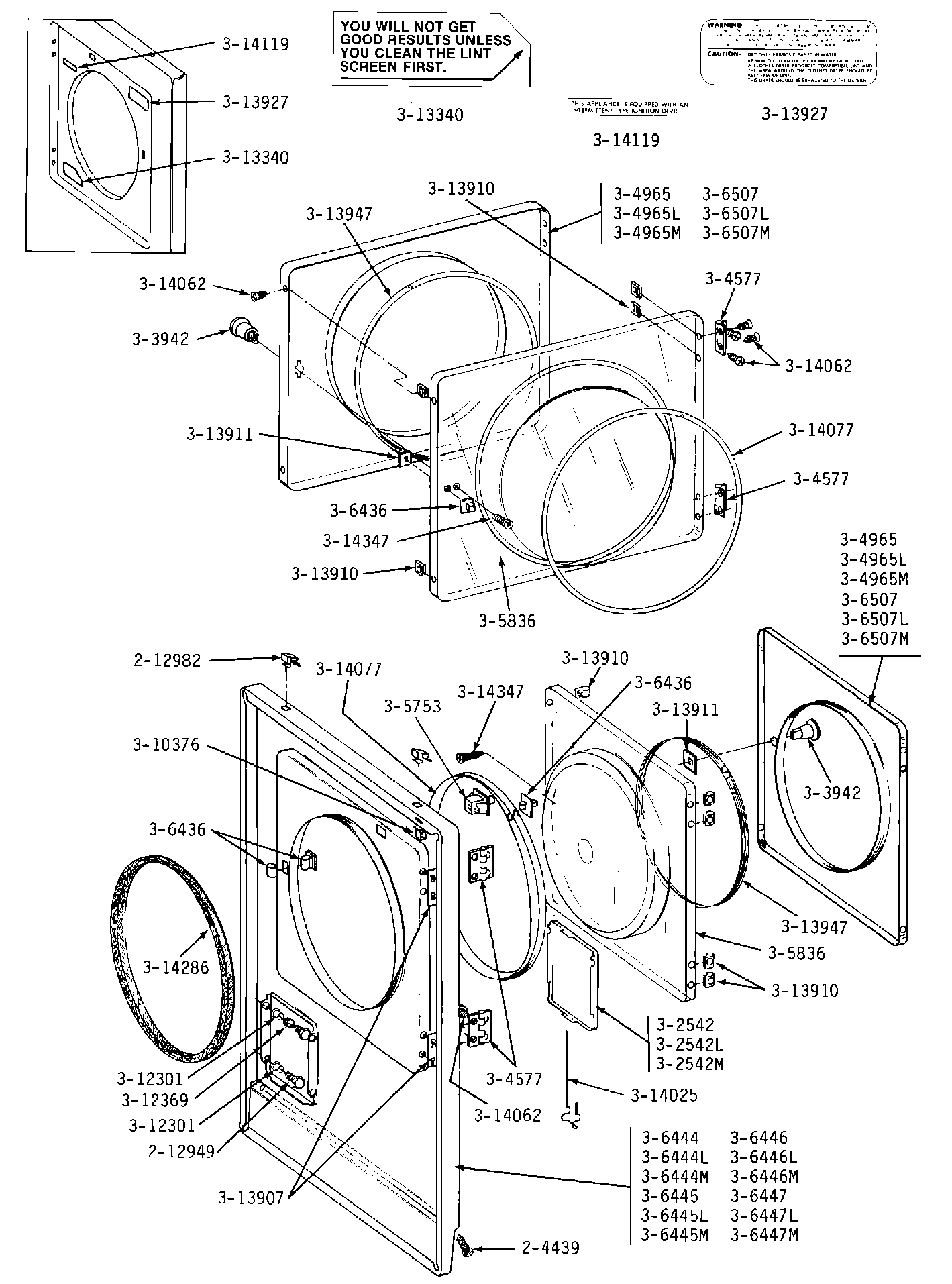

DG23CD 04 – FRONT PANEL & DOOR ASSEMBLY

DG23CD 04 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DG23CD 04 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
008MAY Y304577
009MAY 304965
012W10169313 Whirlpool Door Switch Kit
014306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
024MAY Y306447
030MAY Y310376
032SLEEVE, ACCESS DOOR RUBBER
033LABEL, LINT SCREEN INSTR.
034MAY Y313907
035CLIP, DOOR LINER
036MAY Y313911
037MAY Y313927
038MAY Y313947
039LATCH, ACCESS DOOR
041MAY 314077
044DOWEL PIN FOR HANDLE
