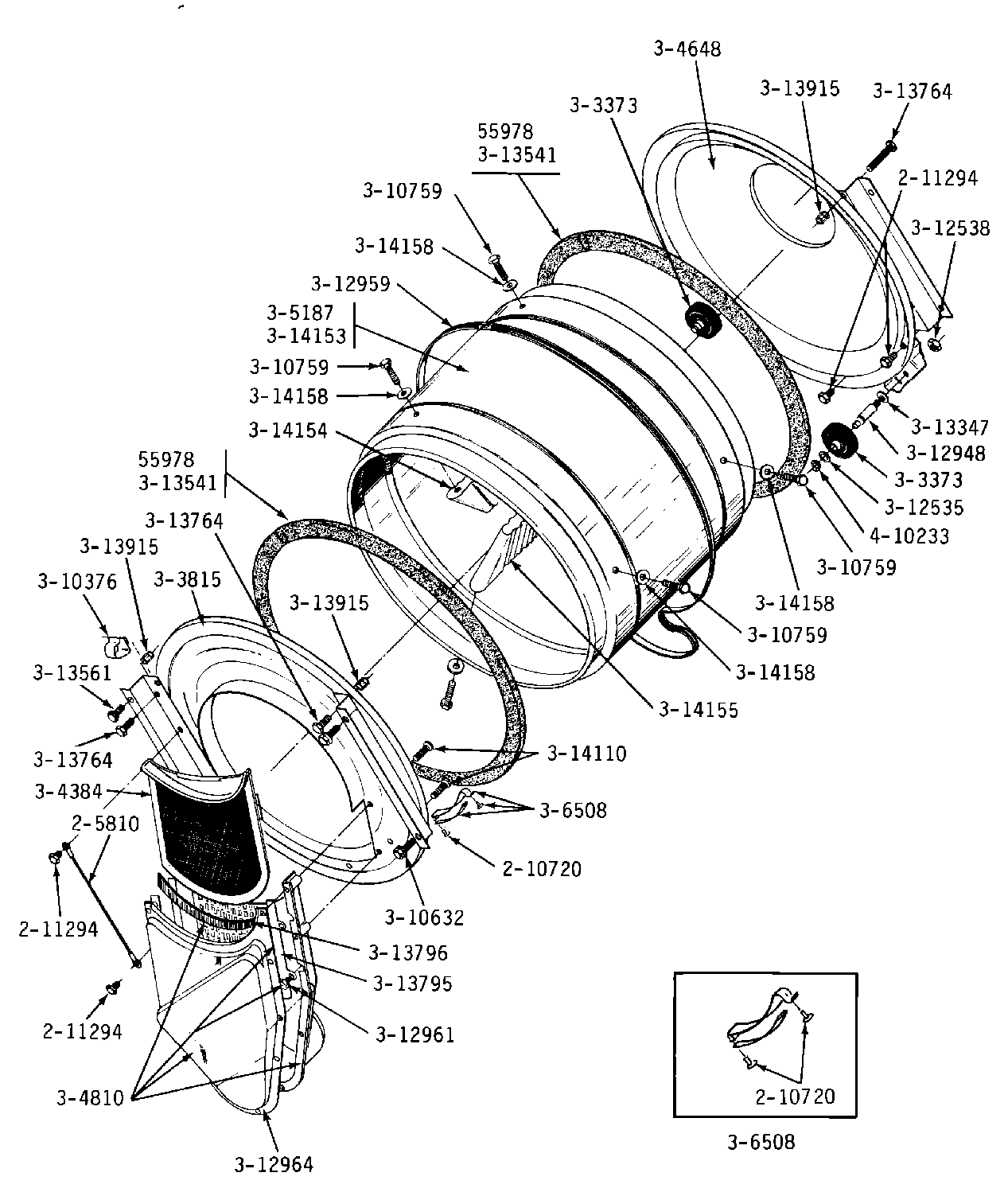

DG23CD 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

DG23CD 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

Written by

in

DG23CD 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

Products

PositionProduct
001MAY Y055978
002MAY 205810
003WP210720 Whirlpool Rivet
004WP90767 Whirlpool Screw
005MAY Y303373
006MAY Y303815
007MAY Y304384
009MAY Y304648
010MAY Y304810
011MAY 305187
012306508 Whirlpool Dryer Front Glide Kit
013MAY Y310376
014MAY Y310632
015MAY Y310759
016WP312535 Whirlpool Washer
017MAY 312538
018WP6-3129480 Whirlpool Roller Shaft
019WPY312959 Whirlpool Dryer Drum Belt
020WPW10116751 Whirlpool Screw
021MAY Y312964
023MAY Y313541
024MAY Y313561
026MAY Y313795
027MAY Y313796
029SCREW, INLET DUCT —-S
030MAY Y314153
031DOWEL PIN FOR HANDLE
032MAY 314155
033MAY 314158
034WP9703438 Whirlpool Snap Retaining Ring
