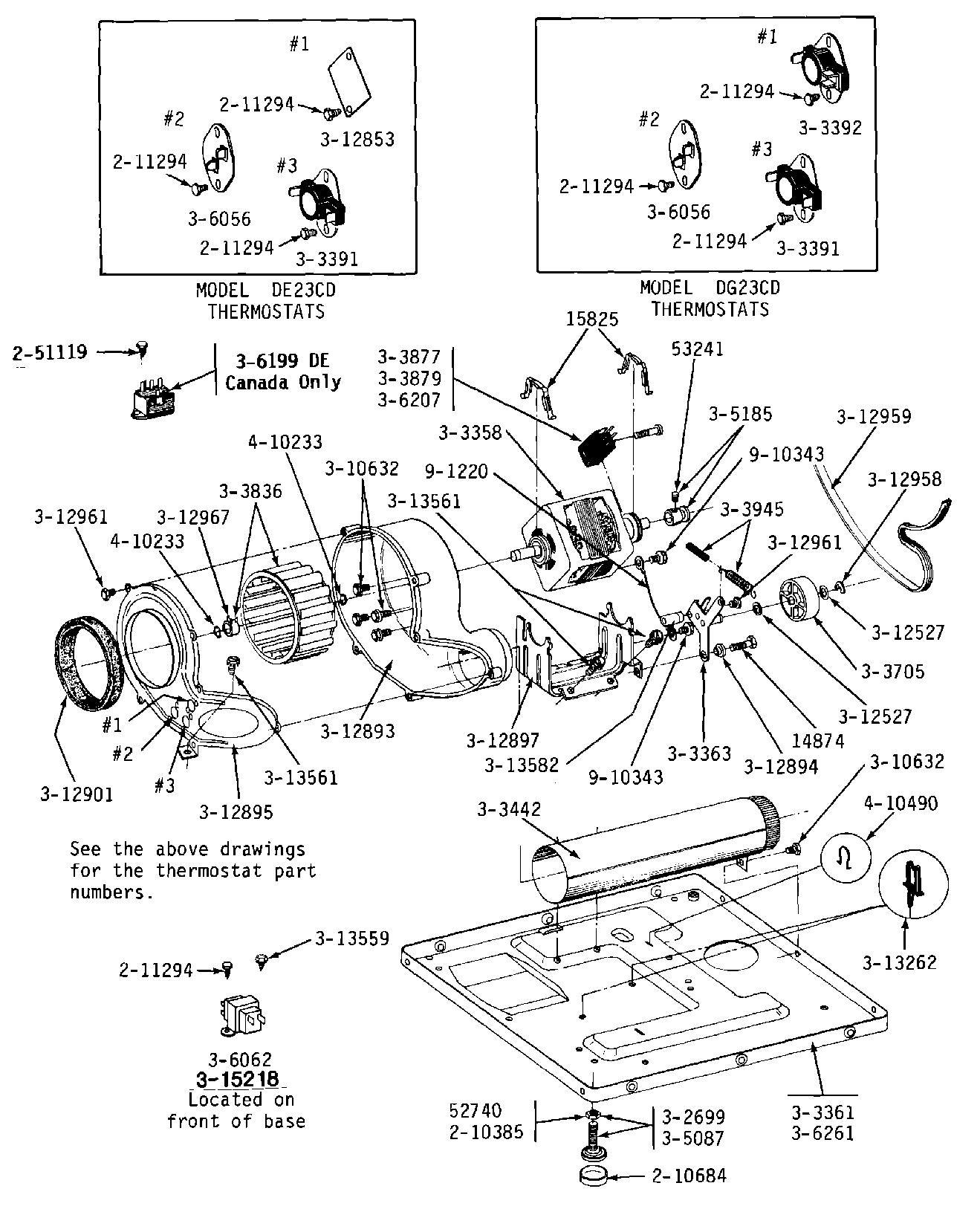

DG23CD 08 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
001	WP3177991 Whirlpool Screw
002	WPY014874 Whirlpool Screw
003	WPY015825 Whirlpool Motor Clip
004	WP62739 Whirlpool Nut
005	MAY Y053241
006	WP210385 Whirlpool Lock Nut
007	WP210684 Whirlpool Dishwasher Leveling Leg Pad
008	WP90767 Whirlpool Screw
009	LEG, ADJUSTABLE (W/NUT)—S
010	W10410999 Whirlpool Dryer Drive Motor
011	MAY Y303361
012	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
013	WP33303391 Whirlpool Thermostat
014	WP694674 Whirlpool Cycling Thermostat
015	MAY Y303442
016	WP6-3037050 Whirlpool Idler Pulley
017	Y303836 Whirlpool Dryer Blower Wheel
018	MAY Y303877
019	MAY Y303879
020	MAY Y303945
021	MAY Y305087
022	MAY Y305185
023	MAY 306199
024	MAY 306056
025	MAY 306062
027	MAY 306261
028	MAY Y310632
029	MAY Y312527
030	MAY Y312853
031	MAY Y312893
032	SLEEVE, IDLER ARM —-S
033	MAY Y312895
034	DOWEL PIN FOR HANDLE
035	WPY312901 Whirlpool Blow Seal
036	WP354987 Whirlpool C-Clip
037	WPY312959 Whirlpool Dryer Drum Belt
038	WPW10116751 Whirlpool Screw
039	WP312967 Whirlpool Clamp
040	MAY Y313262
041	MAY Y313559
042	MAY Y313561
043	WPW10116756 Whirlpool Spacer
044	WP9703438 Whirlpool Snap Retaining Ring
045	MAY 410490
046	MAY 901220
047	MAY 910343
048	MAY 315218
