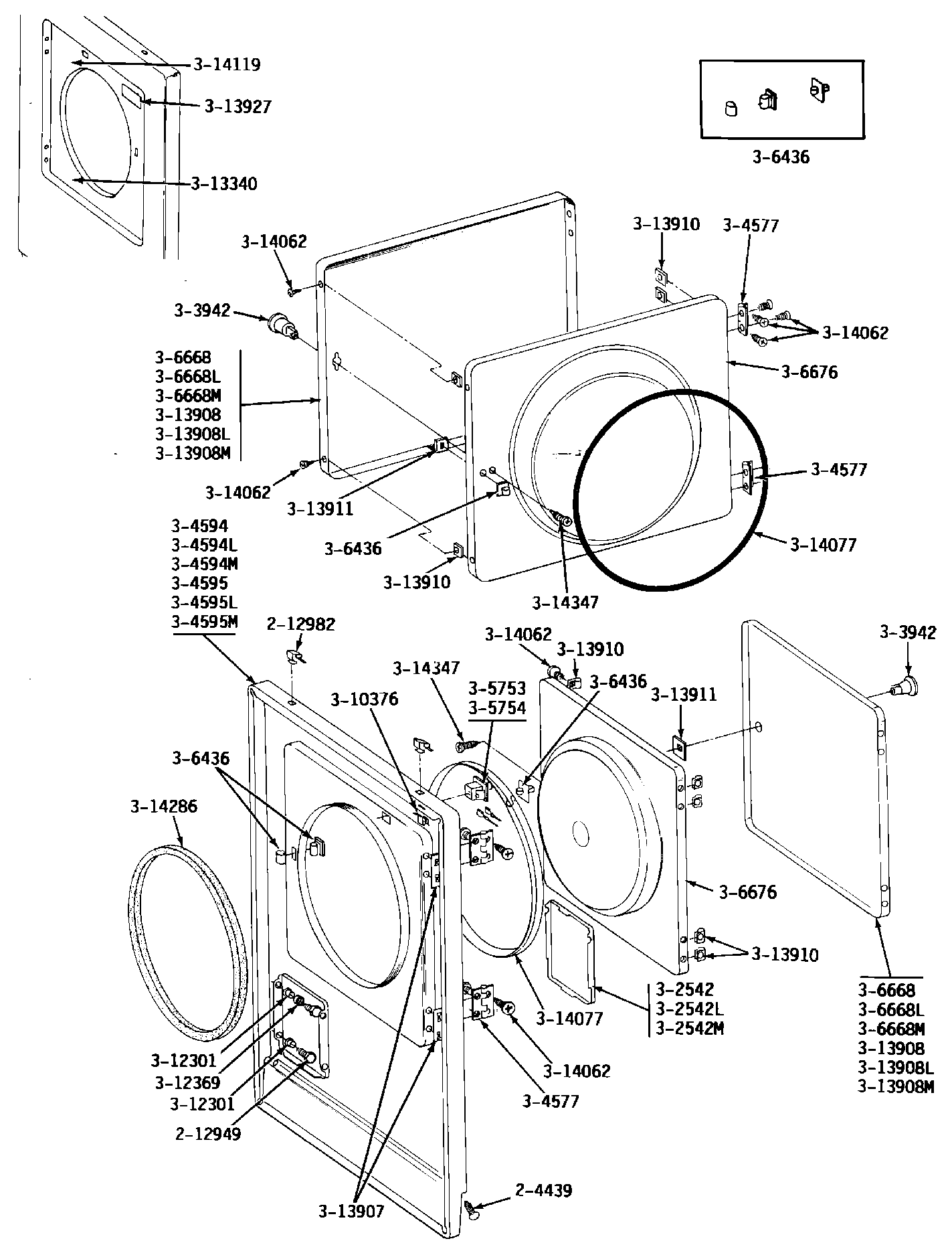

DG24CM 04 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	SCREW, BUSHINGS
003	MAY 212982
011	MAY Y304577
012	W10169313 Whirlpool Door Switch Kit
013	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
014	DOOR
018	MAY Y310376
020	SLEEVE, ACCESS DOOR RUBBER
021	LABEL, LINT SCREEN INSTR.
022	MAY Y313907
023	MAY Y313908
026	CLIP, DOOR LINER
027	MAY Y313911
028	MAY Y313927
030	MAY 314077
033	DOWEL PIN FOR HANDLE
