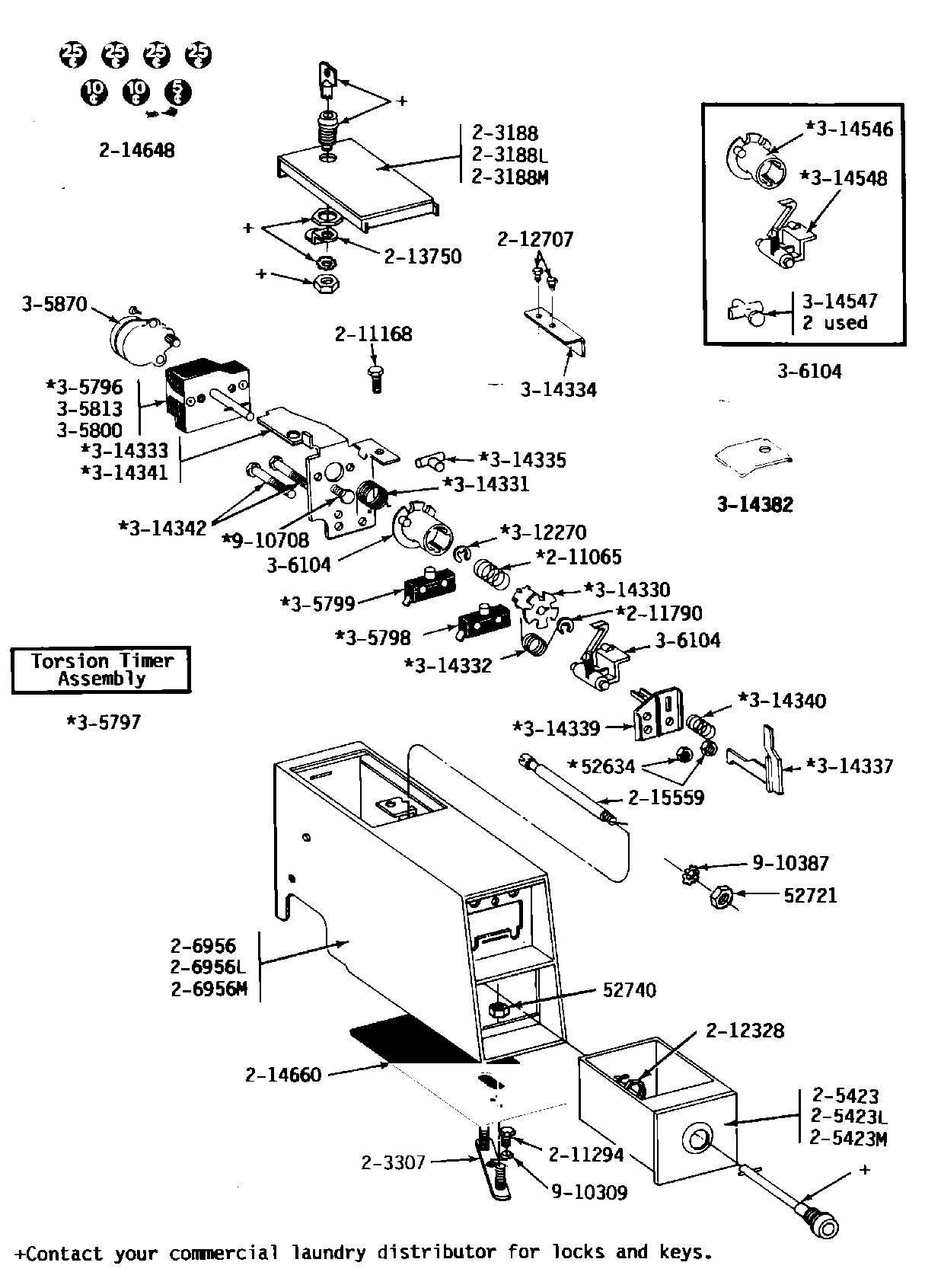

DG24CS 02 – CS CONTROL PANEL/COIN BOX – Aparts

DG24CS 02 – CS CONTROL PANEL/COIN BOX

Products

Position	Product
001	MAY Y052634
002	Y052721 Whirlpool Nut
003	WP62739 Whirlpool Nut
004	MAY 203188
005	ACCESS DOOR-ALMOND
006	MAY 203188M
008	COIN BOX-WHITE
009	COIN BOX-ALMOND
010	MAY 205423M
011	MAY 206956
012	MAY 206956L
013	MAY 206956M
014	WP211065 Whirlpool Timer Spring
015	WPW10139210 Whirlpool Screw
017	WP90767 Whirlpool Screw
018	W11395752 Whirlpool Nut
019	W11684507 Whirlpool Screw
020	W11165684 Whirlpool Cam
021	MAY 214648
022	MAY 214660
023	MAY 215559
024	MAY 305796
025	MAY 305797
026	MAY 305798
027	MAY Y305799
028	MAY 305800
029	MAY 305813
030	TIMER MOTOR RPR
031	MAY 306104
032	MAY Y312270
033	MAY 314330
035	MAY 314332
036	TIMER MOUNTING BRACKET
037	BRACKET FOR COIN SLIDE
038	TIME ADJUSTMENT PEG
039	33002968 Whirlpool Slider
040	MAY 314339
044	DOWEL PIN FOR HANDLE
045	MAY 314546
046	MAY 314547
047	MAY 314548
048	MAY 910309
049	MAY 910387
050	MAY 910708
