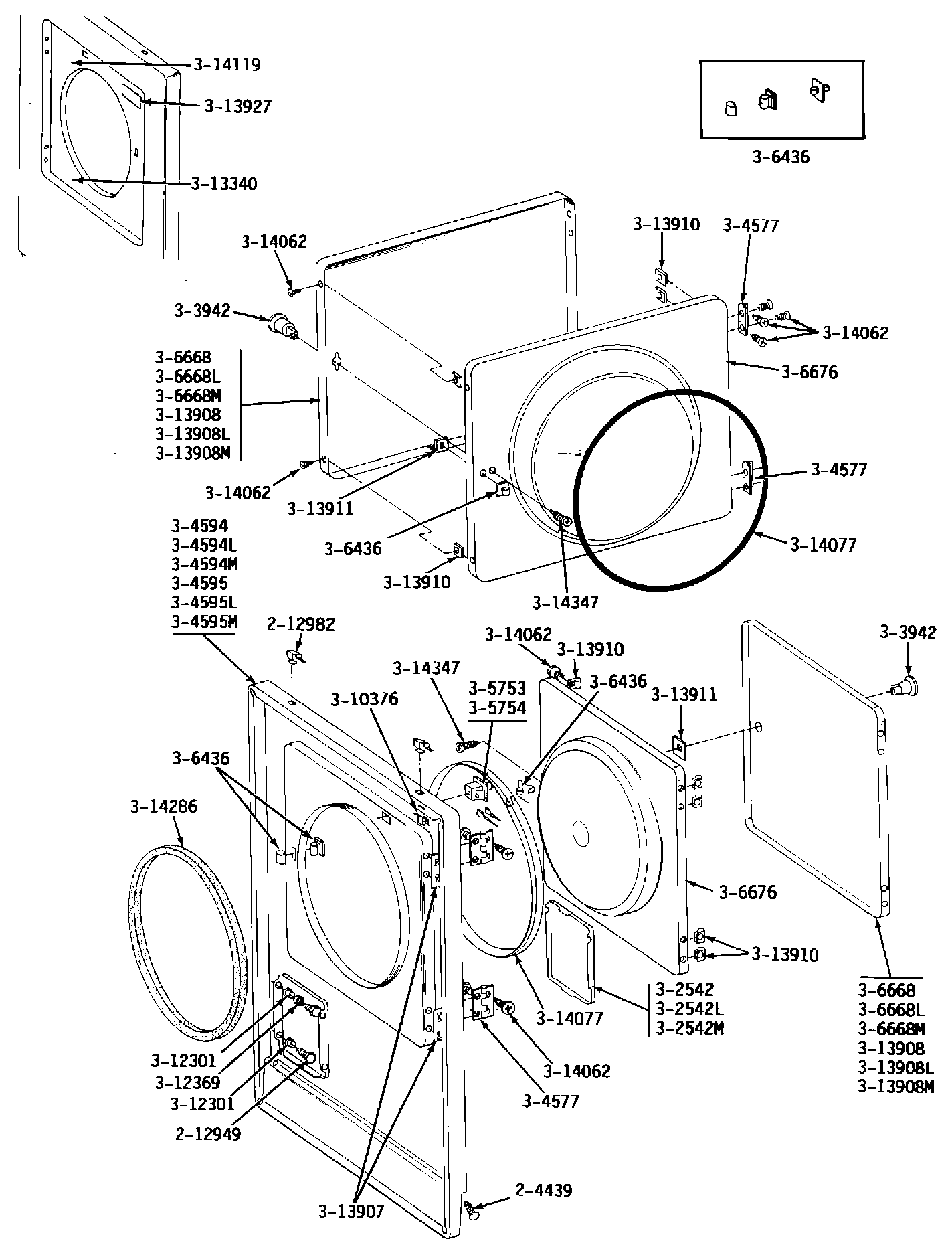

DG24CS 05 – FRONT PANEL & DOOR ASSEMBLY

DG24CS 05 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DG24CS 05 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
011MAY Y304577
012W10169313 Whirlpool Door Switch Kit
013306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
014DOOR
018MAY Y310376
020SLEEVE, ACCESS DOOR RUBBER
021LABEL, LINT SCREEN INSTR.
022MAY Y313907
023MAY Y313908
026CLIP, DOOR LINER
027MAY Y313911
028MAY Y313927
030MAY 314077
033DOWEL PIN FOR HANDLE
