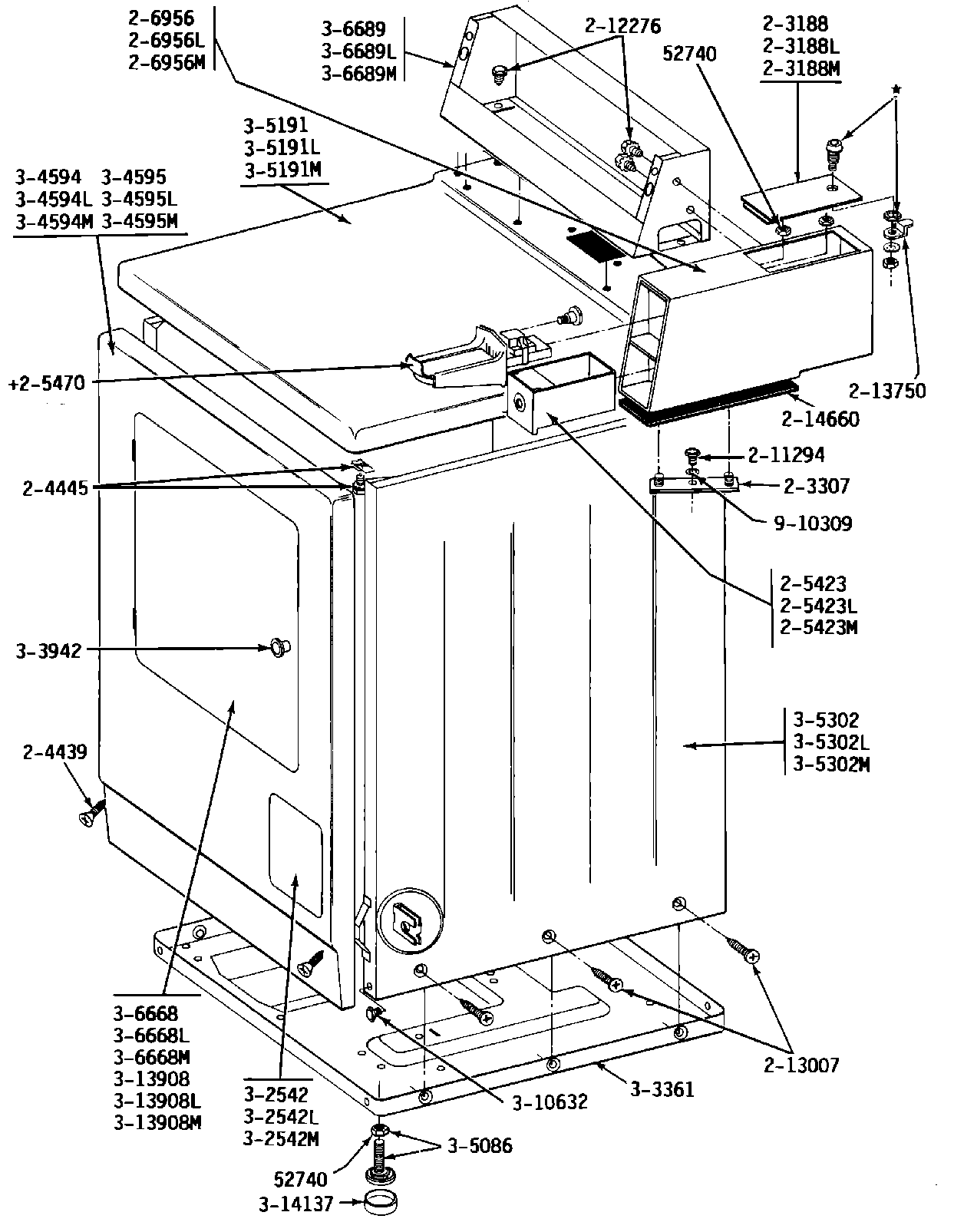

DG24CS 09 – FRONT VIEW

DG24CS 09 – FRONT VIEW

Written by

in

DG24CS 09 – FRONT VIEW

Products

PositionProduct
001WP62739 Whirlpool Nut
002MAY 203188
003ACCESS DOOR-ALMOND
004MAY 203188M
006SCREW & FSTNER ASSY (FT. PNL)
007MAY 204445
008COIN BOX-WHITE
009COIN BOX-ALMOND
010MAY 205423M
012MAY 206956
013MAY 206956L
014MAY 206956M
015WP90767 Whirlpool Screw
016MAY 212276
017213007 Whirlpool Screw #12
018W11165684 Whirlpool Cam
019MAY 214660
023MAY Y303361
028W10176519 Whirlpool Leveling Feet
029MAY Y305191
035DOOR
041MAY Y310632
042MAY Y313908
044DOWEL PIN FOR HANDLE
045WPY314137 Whirlpool Rubber Foot
046MAY 910309
