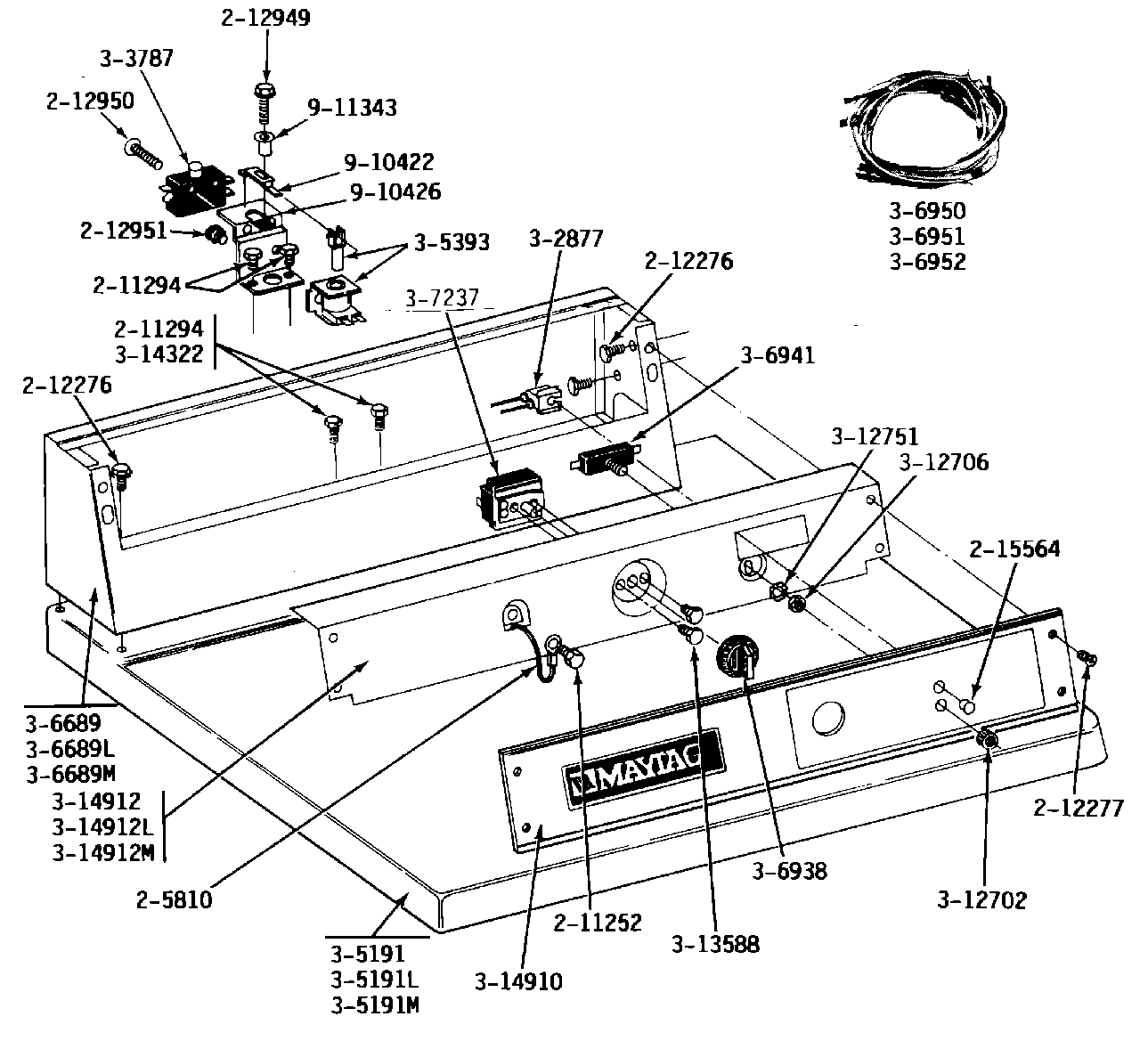

DG24CT 01 – CT CONTROL PANEL

DG24CT 01 – CT CONTROL PANEL

Written by

in

DG24CT 01 – CT CONTROL PANEL

Products

PositionProduct
001MAY 205810
002WP489399 Whirlpool Refrigerator Screw
003WP90767 Whirlpool Screw
004MAY 212276
005WP1163283 Whirlpool Air Conditioner Screw
006SCREW, BUSHINGS
007MAY 212950
008MAY 212951
009MAY 215003
010WP215564 Whirlpool Indicator Lens
012MAY Y303787
013MAY Y305191
019MAY 306938
020WPW10327105 Whirlpool Cycle Switch
021WPW10149462 Whirlpool Push-to-Start Switch
025MAY Y312702
026MAY Y312706
027WPW10139799 Whirlpool Washer
028WP488234 Whirlpool Air Conditioner Screw
029MAY Y314322
031BACK-UP PLATE – WHITE
036DOWEL PIN FOR HANDLE
