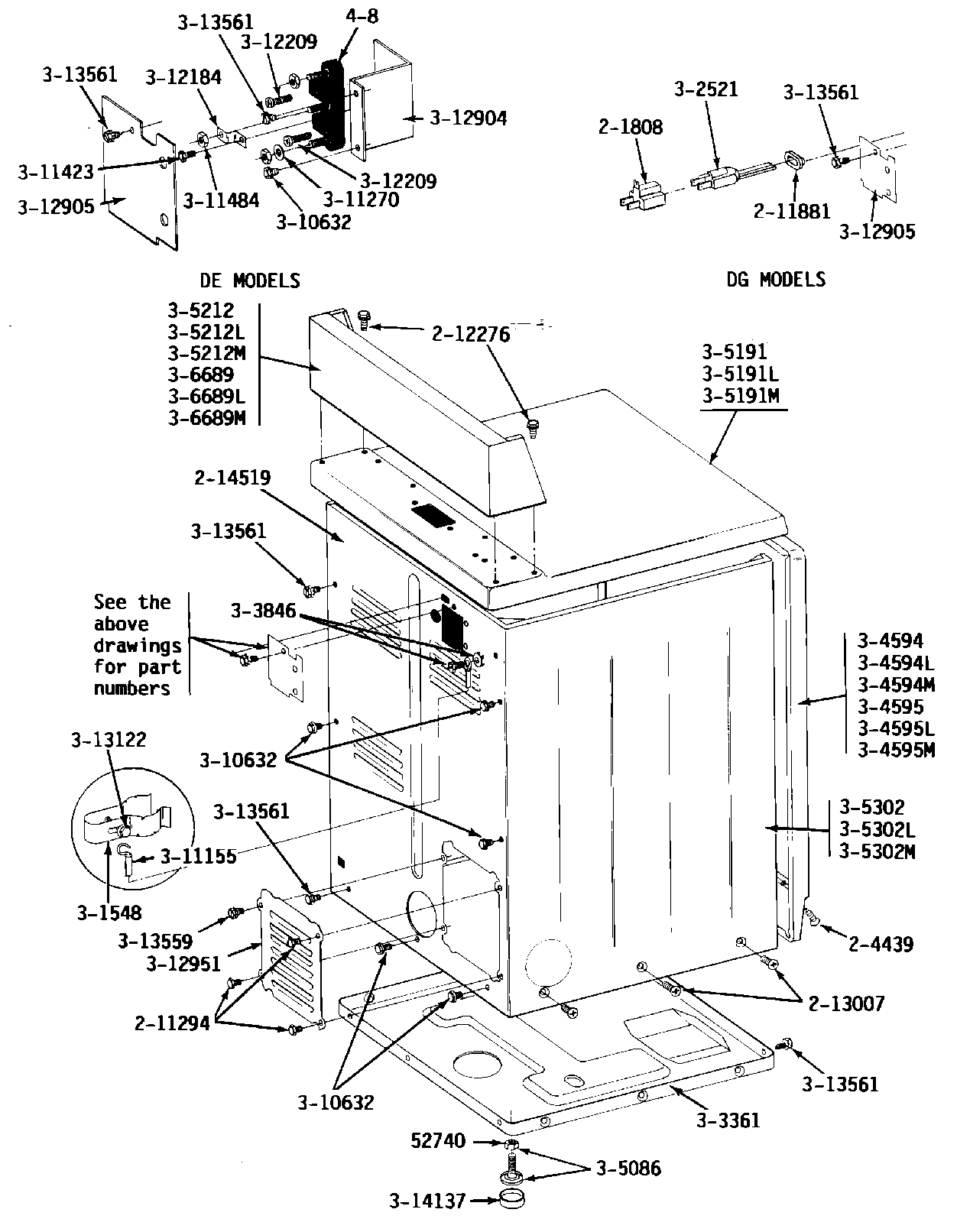

DG24CT 05 – REAR VIEW

DG24CT 05 – REAR VIEW

Written by

in

DG24CT 05 – REAR VIEW

Products

PositionProduct
001WP62739 Whirlpool Nut
002MAY Y201808
003SCREW & FSTNER ASSY (FT. PNL)
004WP90767 Whirlpool Screw
005GROMMET
006MAY 212276
007213007 Whirlpool Screw #12
008INSTRUCTION LABEL
009MAY 301548
010MAY 302521
011MAY Y303361
019W10176519 Whirlpool Leveling Feet
020MAY 305168
021MAY Y305191
032DOWEL PIN FOR HANDLE
034WP311155 Whirlpool Wire Assembly
041MAY Y312905
042MAY Y312951
043MAY 313122
044MAY Y313559
046WPY314137 Whirlpool Rubber Foot
