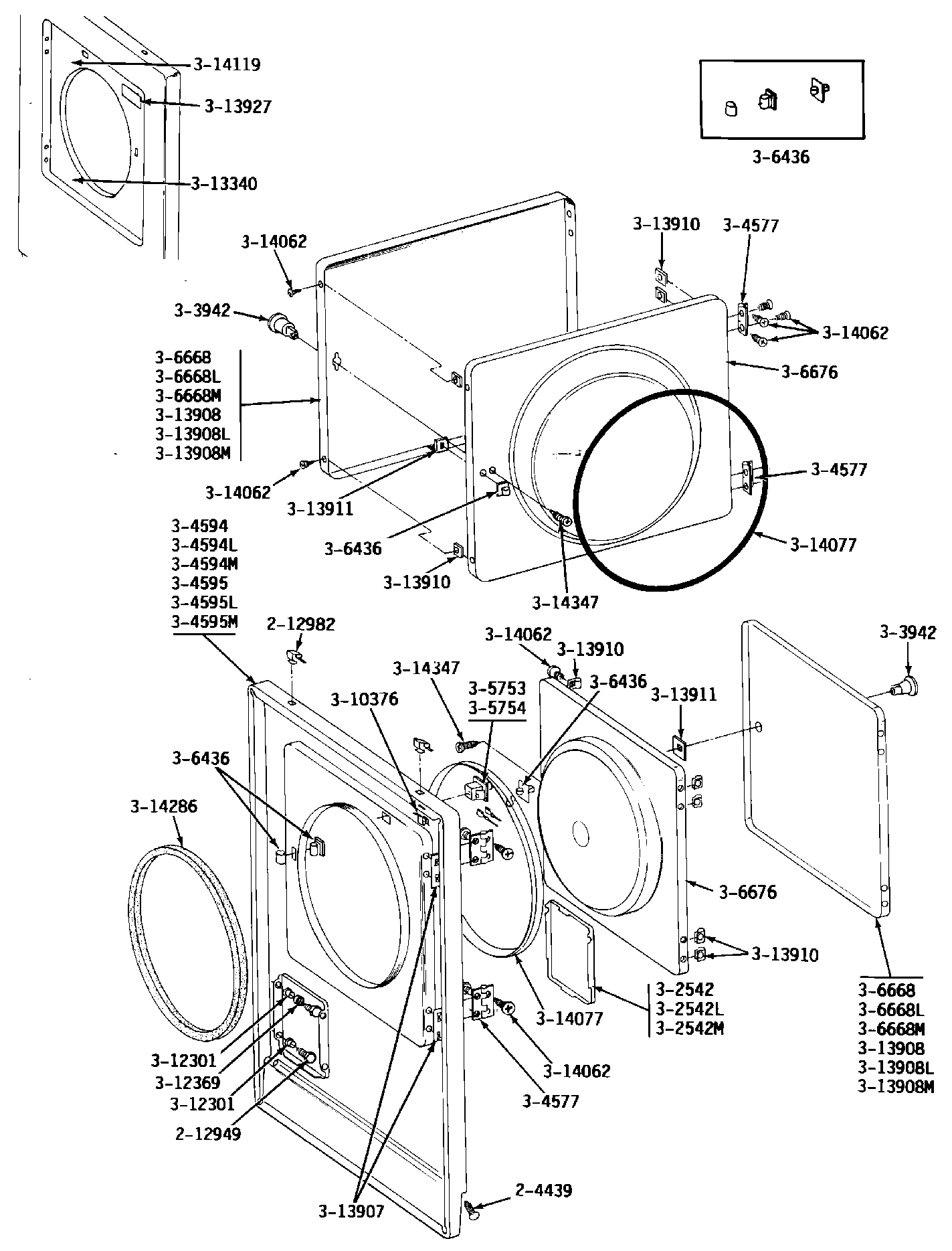

DG24CT 06 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	SCREW, BUSHINGS
003	MAY 212982
014	MAY Y304577
016	W10169313 Whirlpool Door Switch Kit
017	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
018	DOOR
022	MAY Y310376
024	SLEEVE, ACCESS DOOR RUBBER
025	LABEL, LINT SCREEN INSTR.
026	MAY Y313907
027	MAY Y313908
030	CLIP, DOOR LINER
031	MAY Y313911
032	MAY Y313927
034	MAY 314077
037	DOWEL PIN FOR HANDLE
