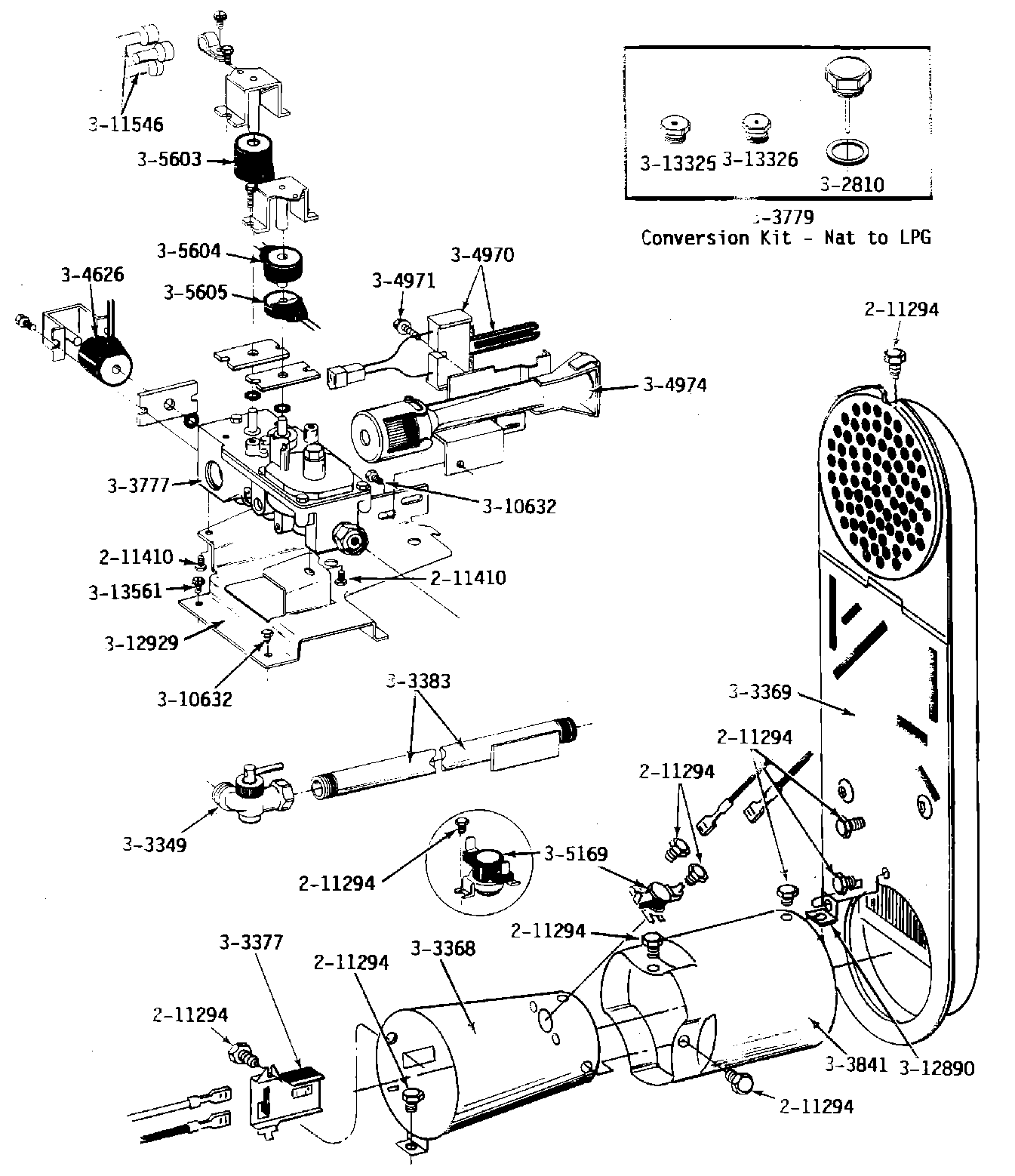

DG24CT 08 – INLET DUCT, GAS VALVE, CONE & EXTENSION

DG24CT 08 – INLET DUCT, GAS VALVE, CONE & EXTENSION

Written by

in

DG24CT 08 – INLET DUCT, GAS VALVE, CONE & EXTENSION

Products

PositionProduct
001WP90767 Whirlpool Screw
004MAY Y303349
005MAY Y303368
006MAY Y303369
007WP338906 Whirlpool Dryer Gas Sensor
008MAY Y303383
009MAY Y303777
010CONVERSION KIT (NAT.TO LP)
011MAY Y303841
012MAY Y304626
0134391996 Whirlpool Dryer Flat Igniter
014MAY 304971
015MAY 304974
016WP305169 Whirlpool Thermostat
017MAY 305603
018MAY 305604
019WP305605 Whirlpool Coil Assembly
023MAY Y310632
024MAY 311546
025MAY Y312890
026MAY 312929
028DOWEL PIN FOR HANDLE
029MAY Y313561
