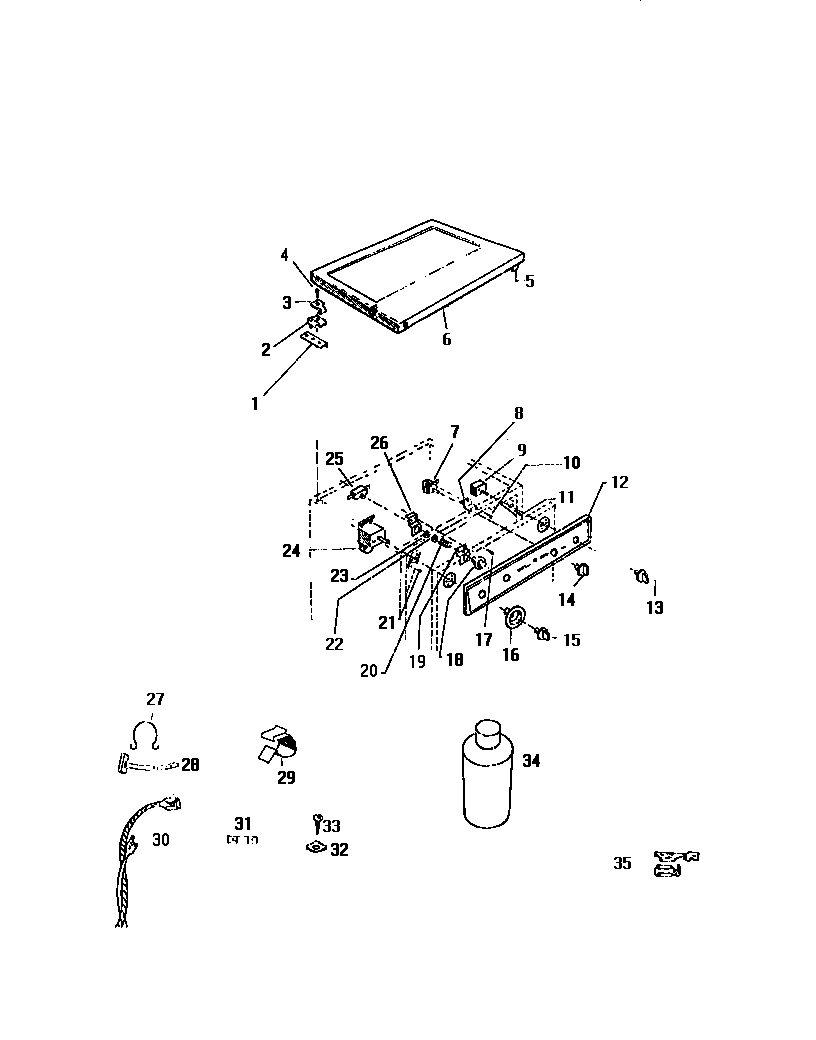

DG250EXD1 03 – CONSOLE, CONTROLS, TOP PANEL, MISCEadmin2025-04-26T09:59:33+00:00DG250EXD1 03 – CONSOLE, CONTROLS, TOP PANEL, MISCE
Products
| Position | Product |
|---|
| *57046 | CORD, SERVICE |
| *57044 | SEALING MASTER |
| *57045 | WCI 1443982 |
| *57043 | WCI Q278114 |
| *57047 | WCI Q63137 |
| *57042 | WCI Q278113 |
| 1 | WCI Q69552 |
| 2 | WCI Q69551 |
| 3 | WCI Q81666 |
| 4 | WCI Q415403 |
| 5 | SPRING CATCH |
| 6 | WCI Q601687 |
| 7A | WCI Q435100 |
| 7 | WCI Q152915 |
| 8 | WCI Q630224 |
| 9 | WCI Q618877 |
| 11 | SCREW |
| 12 | WCI Q630231 |
| 15 | KNOB TIMER |
| 16 | WCI Q617641 |
| 17 | WCI Q435098 |
| 18 | PUSH BUT. |
| 19 | WCI Q165150 |
| 20 | WCI Q66793 |
| 21 | SCREW (4) |
| 22 | WCI Q501450 |
| 23 | WCI Q409004 |
| 24 | WCI Q630112 |
| 25 | START SWITCH |
| 26 | WCI Q165146 |
| 27 | WCI Q62196 |
| 28 | WCI 1468242 |
| 29 | WCI Q502207 |
| 30 | WCI Q619981 |
| 31 | WCI 1468271 |
| 32 | WCI Q500411 |
| 33 | WCI Q500665 |
| 34 | TOUCH-UP PAINT, 1 OUNCE, ALMOND |
| 35C | RECEPTACLE, STRAIGHT, FOR 3/16`` BLADE TERM. (PKG. OF 12) |
| 35E | RECEPTACLE, STRAIGHT, FOR 5/16`` BLADE TERM. (PKG. OF 12) |
| 35G | WCI Q301296 |
| 35F | RECEPTACLE, FLAG, 1/4`` BLADE TERMINAL |
| 35D | RECEPTACLE, STRAIGHT, 5/16`` BLADE TERMINAL |
| 35A | RECEPTACLE, STRAIGHT, 1/4`` BLADE TERMINAL (PKG. OF 12) |
| 35B | RECEPTACLE, STRAIGHT, 3/16`` BLADE TERMINAL |
| 35 | RECEPTACLE, STRAIGHT, 1/4`` BLADE TERMINAL |
