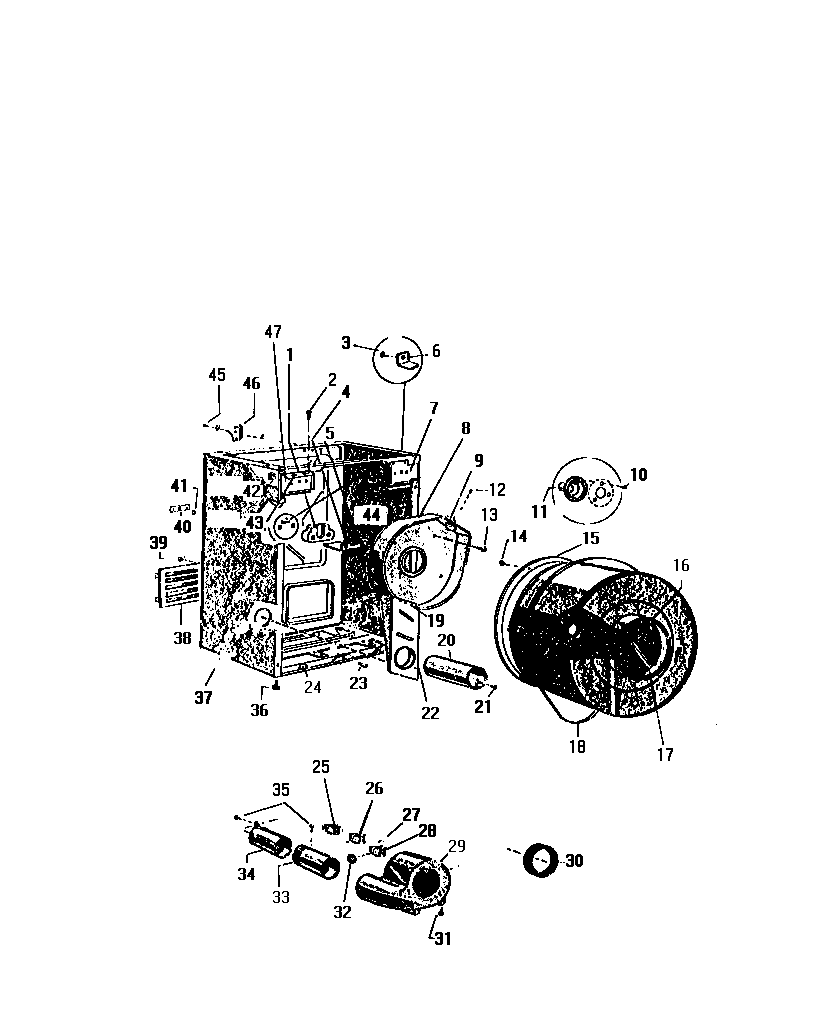

DG250EXD5 01 – CABINET, DRUM, HEATER HOUSING

Products

Position	Product
*57048	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
1	BEARING
2	WCI Q405802
4	BRACKET
5	SCREW
6	BRACKET
7	WCI Q630223
8	HEATER HOUSING
9	THERMOSTAT, HI LIMIT
10	SCREW
11	SHAFT
14	SCREW (3)
15	WCI Q165773
16	SPINNER, BASKET
17	WCI Q615892
17A	WCI Q615891
17B	WCI Q501592
18	WCI Q63807
20	TUBE, BURNER
22	WCI Q116393
23	WCI Q504281
24	WCI Q502956
25	THERMOSTAT, LOW HEAT
26	THERMOSTAT, MEDIUM HEAT
27	SCREW
28	THERMOSTAT, REGULAR HEAT
29	WCI Q171281
30	WCI Q19462
31	SCREW (4)
32	WCI Q606131
33	THERMOSTAT DUCT
34	WCI Q182901
36	WCI Q16567
36A	WCI Q16971
37	BODY, ALMD
38	WCI Q94811
40	WCI Q500637
41	BALL
42	WCI Q504094
43	WCI Q19341
44	WCI Q505564
45	WCI Q409702
46	WCI Q133282
47	WCI Q630225
47A	SCREW (4)
